Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > EY71 Series Glass-ware Hydraulic Press
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Alligator ShearsNegotiableMOQ: 1 Unit -
YW28 Double Action Hydraulic Press(Frame Type)NegotiableMOQ: 1 Set
-
EY41 Three-way Pipe Extruding Hydraulic PressNegotiableMOQ: 1 Set
-
YW27 Single Action Sheet Bending PressNegotiableMOQ: 1 Carton
-
EY61 Hydraulic Press for Metal ExtrusionNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Hydraulic
Place of Origin
Jiangsu, China
Brand Name
Giantally
Specifications
1.Excellent performance and beautiful appearance2. Own core hydraulic technology
3. Supply kinds of hydraulic presses
Detailed Product Description
1Excellent performance and beautiful appearance
3. Own core hydraulic technology
. Supply kinds of hydraulic presses
2.

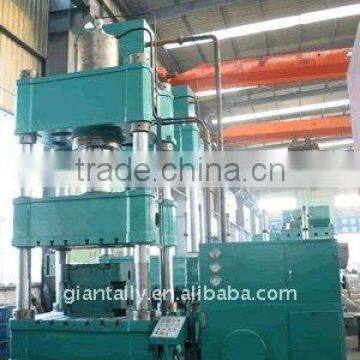

EY71 Series Glass-ware Hydraulic Press
Application & Features
1. The series of hydraulic press mainly apply to squeeze to the shapes of SMC, BMC, DMC, GMT, LFT-D and etc.there is 4-column and frame-type stiff structure for the SMC hydraulic press and it equips the independent electric and hydraulic system. It adopts 3 operation ways such as inching, manual and semi-automatic. It can achieve two forming craft such as pressure and stroke. It has pressurize function and the working pressure and stoke can be adjusted in the specified range. It has the function of the block down quickly in idle stroke and the controllable pre-pressure in multi-blocks and pressuruzation and die sinking slightly.
2. The series of hydraulic press is the key equipment of aerospace, rail transportation, vessel, truck, construction, petrifaction, energy, electronic, literary and etc.
| Item | Unit | EY71-63 | EY71-100 | EY71-200 | EY71-315 | EY71-400 | EY71-500 | EY71-630 | EY71-800 | EY71-1000 | EY71-1200 | EY71-1600 | EY71-2000 | EY71-2500 | EY71-3000 | |
| Nominal force | KN | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 25000 | 30000 | |
| Pre-pressure force | KN | 250 | 315 | 630 | 1000 | 1250 | 2000 | 2500 | 2500 | 3150 | 3150 | 5000 | 6300 | 8000 | 10000 | |
| Operate mould force | KN | 125 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1250 | 1600 | 1600 | 2500 | 3150 | 4000 | 5000 | |
| Leave mould force | MPa | 125 | 250 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1000 | 1000 | 1600 | 2000 | 2000 | 2000 | |
| Table size | LR | mm | 570 | 720 | 930 | 1260 | 1300 | 1400 | 1600/2000 | 2000 | 2000 | 2200 | 2500/ 3000 | 3000 | 3200 | 3600 |
| FB | 500 | 630 | 900 | 1200 | 1300 | 1400 | 1600/ 1800 | 1600 | 1600 | 1600 | 1600/1600 | 2000 | 2500 | 2500 | ||
| T Groove | mm | 22 | 22 | 28 | 28 | 36 | 36 | 36 | 36 | 36 | 36 | 42 | 42 | 42 | 42 | |
| Daylight | mm | 800 | 900 | 1120 | 1250 | 1250 | 1500 | 1500/2000 | 1600 | 2000 | 2000 | 2000/1700 | 2500 | 2500 | 2500 | |
| Ram stroke | mm | 500 | 630 | 710 | 800 | 800 | 900 | 1100/1400 | 1200 | 1400 | 1400 | 1500/1200 | 1500 | 1500 | 1500 | |
| Leave mould stroke | mm | 200 | 200 | 200 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
| max-pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Idle | mm/s | 120 | 120 | 120 | 150 | 180 | 180 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | |
| Pre-pressure | mm/s | 5~25 | 5~25 | 5~20 | 5~20 | 5~20 | 5~20 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | 5~25 | |
| Press speed | mm/s | 2~10 | 2~10 | 2~7 | 2~7 | 2~7 | 2~71~5 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | 1~5 | |
| Operate mould speed | mm/s | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 2~25 | 2~25 | 2~25 | 2~25 | |
| Ram return | mm/s | 100 | 100 | 100 | 120 | 140 | 170 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | |
| slow leave mould speed | mm/s | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 5~30 | 2~30 | 2~30 | 2~30 | 2~30 | |
| Quick-Ejecting | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 80 | 80 | 80 | 80 | 100 | 100 | |
| Machine structure | mm/s | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | 4 COLUMN | |
