EY41 Three-way Pipe Extruding Hydraulic Press

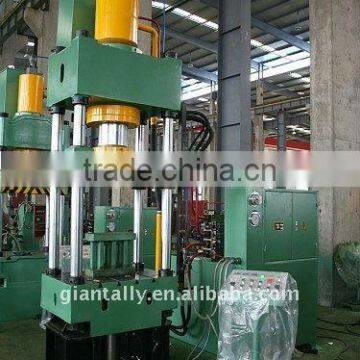

EY41 Three-way Pipe Extruding Hydraulic Press thumbnail-1

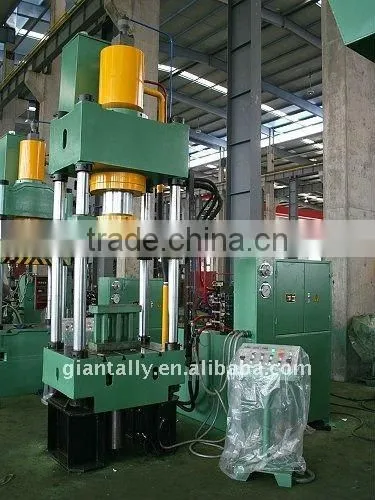

EY41 Three-way Pipe Extruding Hydraulic Press photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Contact Supplier Request Quote Chat Now
Jiangsu Giant Ally Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Hydraulic
Place of Origin Jiangsu, China
Brand Name Giantally

Specifications

1. Supply kinds of hydraulic presses
2. Excellent performance and beautiful appearance
3. Own core hydraulic technology

EY41 Three-way pipe Extruding Hydraulic Press
1. This series of hydraulic press apply to extrude the three-way pipe joint into shapes. The mold clamping force of the hydraulic press can adjust, also the side cylinder. The working pressure and speed of each cylinder can adjust. For the side cylinder, it can adjust by the speed control valve and reach to the same speed or it adopts electro-hydraulic proportion control and achieve the precise synchronization. the electric control is PLC program. It controls by the button and there is 3 operation ways including inching, manual and semi-automatic. It will be fulfilled according to the craft requirements: mold-closing to the adjusted pressure, the side cylinder advance to squeeze to the adjusted position. The side cylinder return the initial position and die sinking. The circle course has been finished.
2. This series of hydraulic press run stable, high-efficiency and be obbligato profession equipment of squeezing the three-way pipe joint.



 technical parameters:

Item
Unit		 EY41-63 EY41-100 EY41-200 EY41-315 EY41-630 EY41-630 EY41-1000 EY41-1500
Four-column Four-column Four-column Four-column Four-column Frame-style Frame-style Frame-style
Nominal force KN 630 1000 2000 3150 6300 6300 10000 15000
side cylinder pressure KN 250*3 500*2 1000*3 2000*3 3150*3 5000*2 8000*2 12500*2
Max. working pressure MPa 25 25 25 25 25 25 25 25
Daylight mm 500 900 1120 1250 1800 1200 1500 1800
Ram stroke mm 230 600 500 600 1000 500 800 800
Ejecting stroke mm 150 100 200 200 350 350 400 400
Height of table above floor mm 800 860 550 650 500 600 600 1550
Max-distance of LF cylinders’ piston mm 600 600 1000 1120 1800 1200 1400 2000
Max-distance between back cylinder to worktable’s center mm 300 300 500 450 900 / / /
Height between side cylinder to worktable mm 100 120 220 320 350 320 400 500
Ram speed
Idle		 mm/s 20 160 120 80 120 60 60 100
Pressing 4~6 10~23 12~24 10 6~13 8 6 6

Return		 40 130 150 60 150 100 80 80
Two side cylinders’ speed as same time mm/s 17 10 14~24 8~16 6 3~5 3~6 3~5
Motor power KW 5.5 11 15.5 22 30*2 59.5 51.5 143.5
Overall dimensions FB mm 1525 1700 2200 2535 4790 4132 4250 2000
LR 2870 3000 4800 5355 5860 4856 6650 4800
Above floor 2400 3260 5015 4312/4127 5920 6240 5780 3520
