Specifications

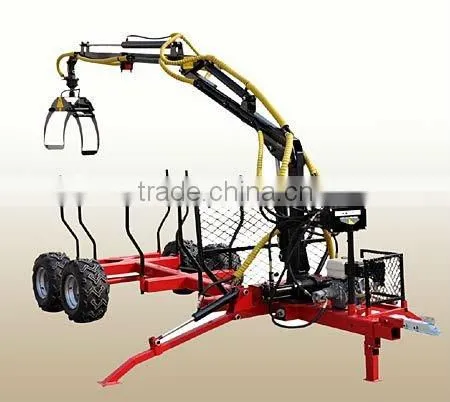

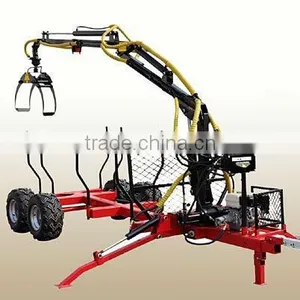

CE approval, Professional Quality, with Safty Valves and Speed Adjustable ValvesGasoline Engine Timber Trailer
Model: GTT5002
Engine: Honda GX160 or Chinese Engine
Engine Type: Air Cool, 4storke, Single Cylinder
Engine Power: 6.5HP for Chinese Engine, 5.5HP for Honda GX160 Engine
Max. Lifting Capacity (at 2meter height): 300Kg
Max. Diameter of Wood grabbing: 700mm
Trailer Length: 2.4m
Working Pressure: 20Mpa
Max. Trailer loading: 2500Kg
Hydraulic oil tank: 8L
Pump Capacity: 5.8L/min
Wheels: 22X11-10 or as per your request
Length: 4430mm
Width: 1180mm
Net Weight: 850Kg
With connecting hook , can be transported by tractor or ATV
Approval: CE
Upgraded Features:
1). New design for lift left/right moving structure, using metal built in gears instead of chain, more steady and extend the working life.
2). New design for lift arm, increased a control bar to extend or shorten the lift arm length, can reach even longer distance for wood grabbing.
3). New design for connection part between the carne part and the trailer, crane part can be take off from the machine easily , and can be easily installed on any of customer's own trailer.
4). Improved grappler, using thickness steel plate instead of steel tube inside the grappler, invoid the broken of steel tube when grapping wood too tight.
