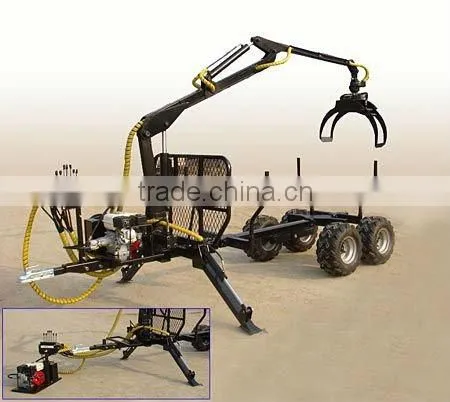

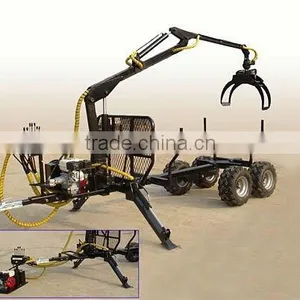

Help Center1.5Ton Engine Timber Trailer
Related Products
Specifications
CE approval, Professional Quality, with Safty Valves and Speed Adjustable Valves1.5T Gasoline Engine Timber Trailer
Model: GTT4001
Engine: Honda GX160 or Chinese Engine
Engine Type: Air Cool, 4storke, Single Cylinder
Engine Power: 6.5HP for Chinese Engine, 5.5HP for Honda GX160 Engine
Max. Lifting Capacity (at 1.5meter height): 300Kg
Max. Diameter of Wood grabbing: 700mm
Max. Reach: 3200mm
Hydraulic oil tank: 8L
Pump Capacity: 5.8L/min
Max. Trailer loading: 1500Kg
Wheels: 22X11-10 or as per your request
Length: 3815mm
Width: 1252mm
Net Weight: 590Kg
With connecting hook , can be transported by tractor or ATV
Engine System can be take off from the trailer.
Packing: Packed with steel frame, 18Pcs/20’C
Approval: CE
Features:
1). New design for lift left/right moving structure, using metal built in gears instead of chain, more steady and extend the working life.
2). New design for connection part between the carne part and the trailer, crane part can be take off from the machine , and Trailer length to be adjustable.
3). Improved grappler, using thickness steel plate instead of steel tube inside the grappler, invoid the broken of steel tube when grapping wood too tight.
4). Add Saftey Valve, ensure lift wood not fall down even without hyduralic.
5). Add Lift Arm rotary speed adjustable Valve, can adjust the Lift Arm rotary speed ensure high working efficiency.
6). Can be made it fit to the track hydraulic system through the quick connectors.
7). Engine System can be take off from the trailer.
8). Can be made it fit to the track hydraulic system through the quick connector
