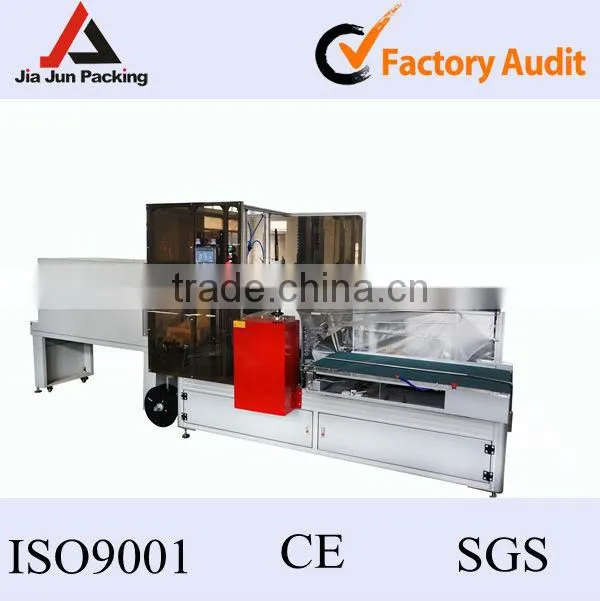

Help CenterVrey High Speed Shrink Wrapping Machine,four Side Sealing ,TAIWAN Technology
Related Products
-
Economic Book Shrink Wrapping MachineUS$ 2,000 - 10,000MOQ: 1 Set -
Good Shrink Wrapping Machine Shrink Packing Machine L Type Cutting and Sealing Machine ,wholesale ManufactureUS$ 2,000 - 10,000MOQ: 1 Set
-
Fully Automatic 4 Side Shrink Wrapping Machine for CartonUS$ 2,000 - 10,000MOQ: 1 Set
-
Good Quality Shrink Wrapping MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Good Quality Automatic Shrink Machine ,shrink Tunnel Machine With Visible WindowNegotiableMOQ: 1 Set
Specifications
1.high speed packing2,Taiwan technology
3.can be custom made
4.full automatic
5.PLC control
3.1 Introduction:

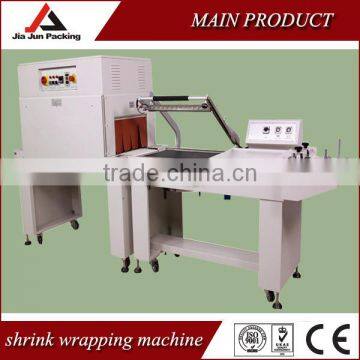

3.11Full automatic L type shrink wrapping machine is a kind of automatic function of sealing machine, equipment widely used for mass production of packaging production line, the machine comes with perforating device, automatic film feeding, and matching the manual adjustment guide membrane system and function of manually adjusting the feeding conveyor, this device suitable for different length and width and height using articles. Can according to customer requirement.
3.1.2 equipment work stability, high work efficiency, decrease labor cost. To further improve the plant sales.
3.1.3 knife Taiwan imported steel, sealing will not crack, not coke, not smoking, pollution.
3.1.4Automatic feeding , measuring length of products by a combination of eye and timer, automatic regulation. Matching induction motor, automatic volume of waste.
3.1.5 products with different sizes can be combined packing, simple adjustment, without changing the membrane, to further improve the work efficiency, meet the needs of the market, in order to achieve promotion effect.
3.1.6 sealing temperature can be adjusted freely, do not worry about the product temperature damage.
3.1.7 in case of preventing wrong cutting, sealing knife with automatic protection function. To avoid damage to the product.
3.2, technology parameter configuration (for reference only)
3.2.1, customer product name: Auto Parts
3.2.2, size: Base on packaging machinery design plan
3.2.3, sealing cutting knife size: horizontal knife size: L510mm side knife size: 640mm opening height: 120mm
3.2.4Film: POF / PE.
3.2.5, equipment capacity: 1-30bag/min (the actual product depending on the size)
belt speed: 1-21m/min

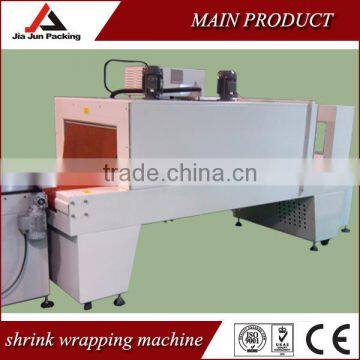

3.2.6, shrink machine size: tunnel size:L1250*W400mm*H250mm
Surface Size: L1850*W663mm*H1550mm
3.2.7, conveyor belt conveyor speed: 1-12m/min
3.2.8, the sealing power supply voltage: 1P-220V: 50HZ: 3P-380V 50HZ shrink machine
3.2.9, Cylinder: 5KG. Gas flow: 20L/min above.
3.2.10, micro switch / / buzzer: TEND
3.2.11, button switch: TEND
3.2.12, photoelectric switch: OMRON
3.2.13, the motor reducer: Taiwan brand
3.2.14, belt: Italy imports
3.2.16, program control (PLC): Japan Mitsubishi
3.2.17, the cylinder: AIRTAC or the same level
3.2.18,electric relay: OMRON
3.2.19, the inverter: imported Japanese Mitsubishi (including the USB interface, communication port)
3.2.20, bearing: using THK or the same level
3.2.21, electromagnetic switch: Schneider
3.2.22, indicating lamp: Schneider
3.2.23, wire: the national standard quality brand
3.2.24, several dimensions in the actual completion shall prevail
3.2.25 design uses a unique technology, equipment. The mechanical stability, shrinkage of product appearance.
3.2.26, chain gear / chain: S45C high frequency heat treatment /TYC
3.2.27, steel structure: all sheet metal parts using molding plate, the die shape, size of firm structure, stand by pickling, baking powder coating treatment etc.
3.2.28, several dimensions in the actual completion shall prevail
Two, offer instructions1,
1,the quotation validity: 30 days, the quotation is subject to both parties signed confirmation.
2, payment term: pay 40% as deposit , pay Balance before machine leave factory
3, delivery time : 1 months after getting deposit
4, warranty period: the electrical components and non-human factors of machine components warranty 1 years, lifelong maintenance. (foreign customers only provide spare parts)
5, equipment matching one set tool case.
6, quotation without conveyor (optional,)
