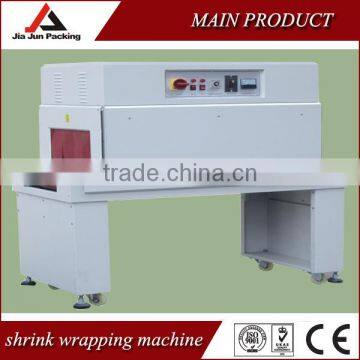

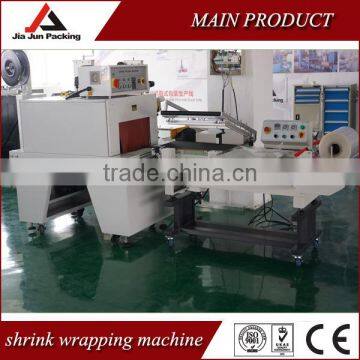

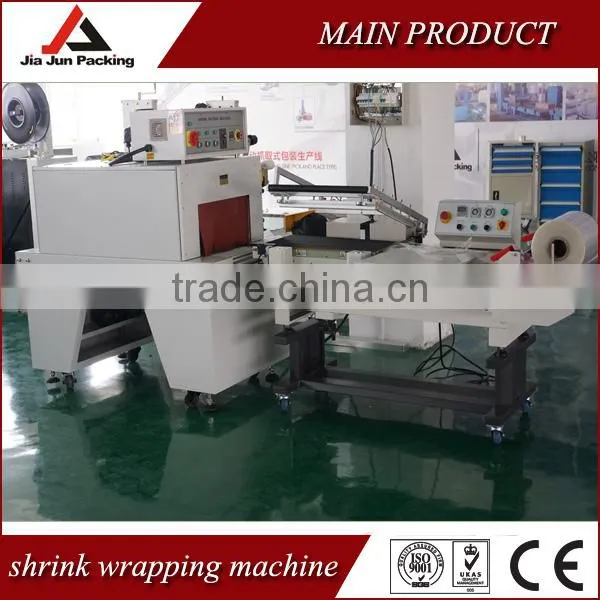

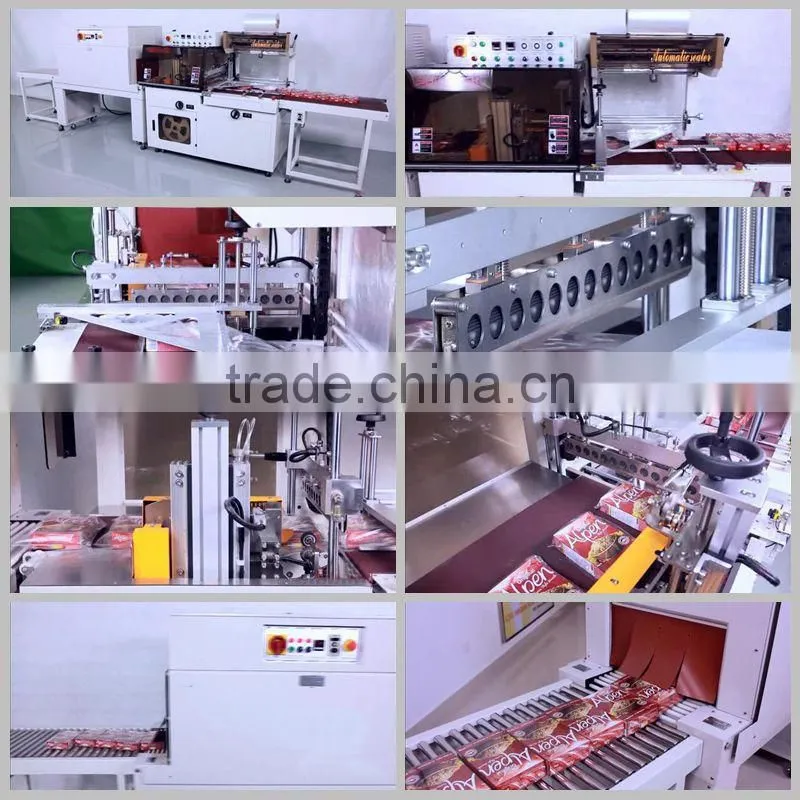

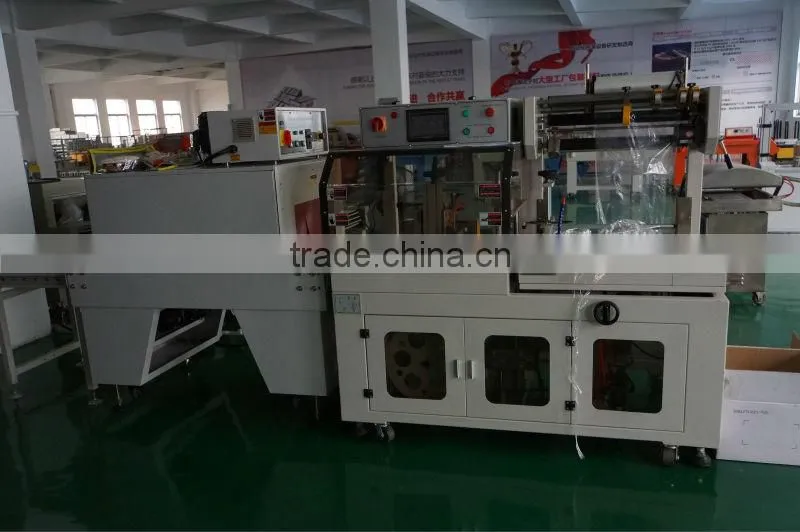

Good Quality Shrink Wrapping Machine
US$ 2,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Quality Automatic Shrink Machine ,shrink Tunnel Machine With Visible WindowNegotiableMOQ: 1 Set -
PE Shrink TunnelUS$ 2,000 - 10,000MOQ: 1 Set
-
Good Quality Automatic Shrink Wrapping MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Good Shrink Wrapping Machine ,shrink Wrap Machine ,cutting and Sealing Machine ,wholesaleUS$ 2,000 - 10,000MOQ: 1 Set
-
High Speed Fully Automatic Shrink Wrapping MachineUS$ 2,000 - 10,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type
Case
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V/60HZ
Power
18KW
Place of Origin
Jiangsu, China
Brand Name
JIAJUN
Model Number
shrink wap machine
Dimension(L*W*H)
1850*1350*1300mm
Weight
850KG
Certification
ISO9001 CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.DUPONT sealing knife ,steady2.Import photoelectric detection, precisely
3.automatic feeding
4.adopt unmanned connections
FEATURES

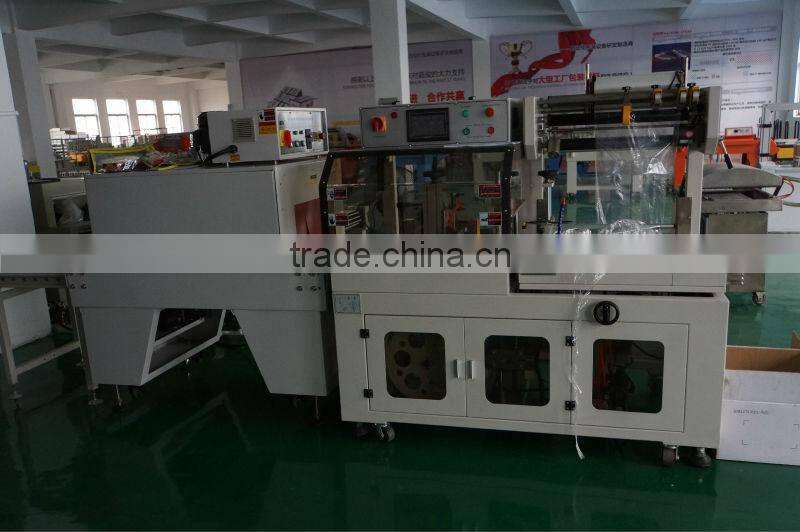

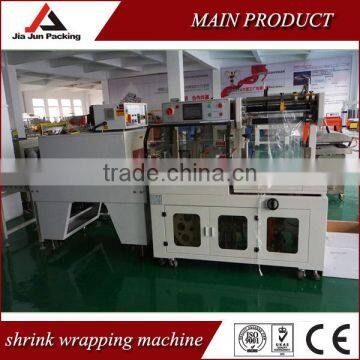

- CHL-5545CF economic side seal packager developed by JIAJUN PACK our-self, widely use in flow production process for mass quantity, One time solve feeding, transporting, bagging, sealing and shrinking with high efficiency, applicable to products with different height and wide.
- Vertical driver cross seal bar and advanced constant temperature side seal blade, straight and solid sealing line always at middle of product makes perfect sealing effect
- Constant hot sealing system workable with POF and others standard shrink film
- Simple hand wheel adjust packing size for different product dimension,easier operation but more reliable
- Continuous side seal without product length limit
- Most advanced PLC program controller equipped with safety and alarm devices, smooth and continuous side seal action without manual repeat job, very simple maintain operation
- Photocells detection work with timer controls feeding and release film length accurately, make shrink effect easily controllable
- Two switchover photocells horizontally and vertically, finish seal packaging easy for small or thinner product
- Independent motor controls waste film rewind not loose and not too tight, easy take waste film out
- Able to increase air blow function demands
- Optional powered feeder and non powered storage table for requirements
DESCRIPTION
- Applicable for single and configuration package like CD, DVD, Cosmetic. Electronics, Printing boxes, Photo frame, Aluminum, Wooden appliance
Model |
CHL-5545CL |
CHL-5560CL |
CHL-5580CL |
SM-5030 |
Machine dimension L×W×H(mm) |
1680×975×1500 |
1820×1040×1500 |
2430×1565×1400 |
1672×770×1560 |
Tunnel dimension L×W×H(mm) |
/ |
/ |
/ |
1000×500×300 |
Max packing size L(mm) H<150 |
Unlimited |
Unlimited |
Unlimited |
400×250 |
W+H(mm) |
≤430 |
≤550 |
≤750 |
/ |
Cross sealing L(mm) |
450 |
600 |
800 |
/ |
Packing speed(pcs/min) |
20-40 |
20-40 |
20-40 |
0-15M |
Net weight (kg) |
290 |
310 |
675 |
360 |
Power (kw) |
1.8 |
2 |
2.2 |
12 |
Power supply |
3PH 220V/380V 50/60Hz |
3PH 220V/380V 50/60Hz |
3PH 220V/380V 50/60Hz |
3PH 220V/380V 50/60Hz |
Air pressure (kg/cm2) |
6-8 |
6-8 |
6-8 |
/ |
Applicable film |
FOF/PVC |
FOF/PVC |
FOF/PVC |
FOF/PVC |

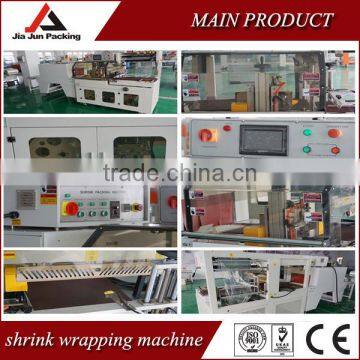

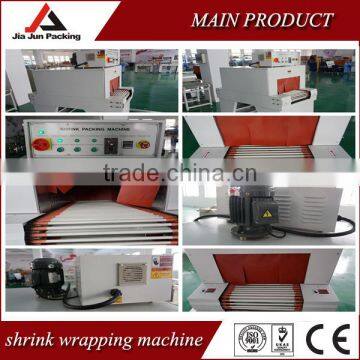

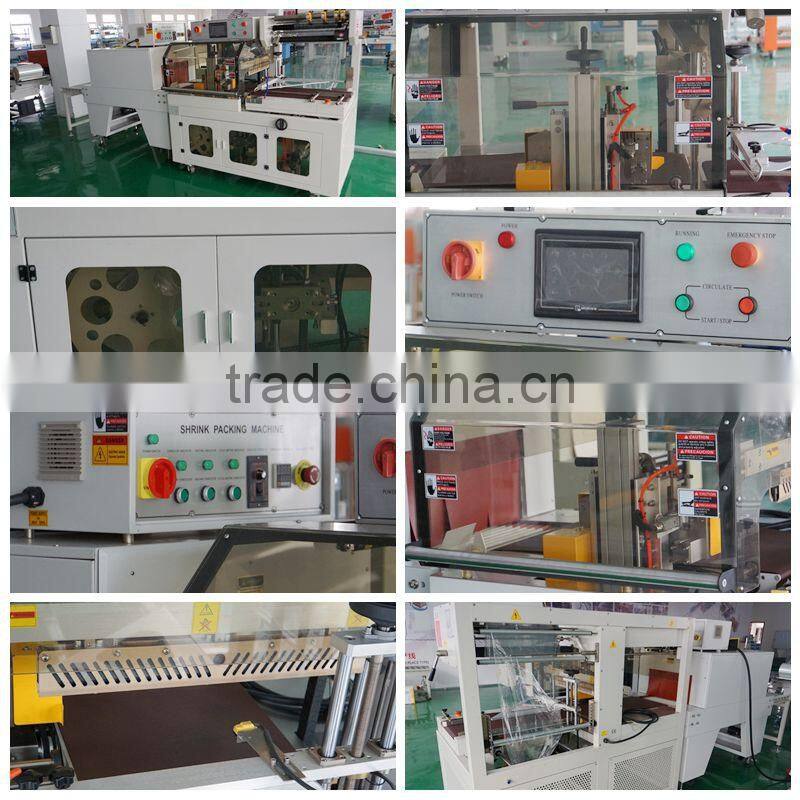

Details:
