Home > Packaging & Printing > Packing Machinery > Wrapping Machine > Fully Automatic 4 Side Shrink Wrapping Machine for Carton
Fully Automatic 4 Side Shrink Wrapping Machine for Carton
US$ 2,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Quality Shrink Wrapping MachineUS$ 2,000 - 10,000MOQ: 1 Set -
Good Quality Automatic Shrink Machine ,shrink Tunnel Machine With Visible WindowNegotiableMOQ: 1 Set
-
PE Shrink TunnelUS$ 2,000 - 10,000MOQ: 1 Set
-
Good Quality Automatic Shrink Wrapping MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Good Shrink Wrapping Machine ,shrink Wrap Machine ,cutting and Sealing Machine ,wholesaleUS$ 2,000 - 10,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type
Case
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V/60HZ
Power
22KW
Place of Origin
Jiangsu, China
Brand Name
JIAJUN PACK
Model Number
CHL-8040
Dimension(L*W*H)
2300*1600*1600 mm
Weight
1100KG
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.DUPONT sealing knife ,steady2.Import photoelectric detection, precisely
3.automatic feeding
4.adopt unmanned connections
|

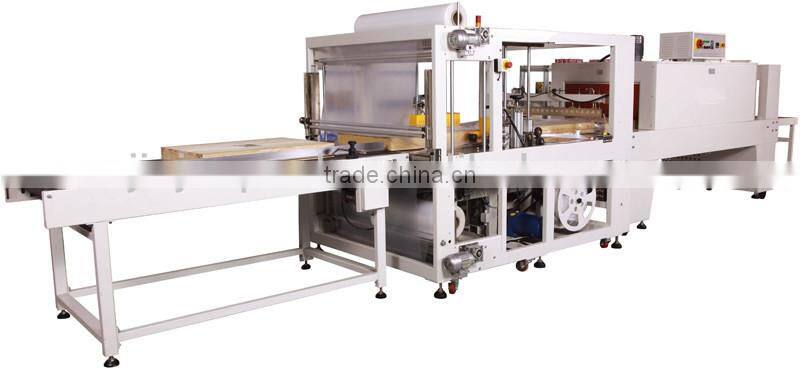

FULLY CLOSE SEALING(PE) &SHRINKING PACKAGER CHL-8040+SM-8040 |
-
FEATURES
- CHL-8040 adopt advanced double side sealer technical, continues sealing. Product length is unlimited
- Adopt electric Touch screen, imported OMRON PLC to integrated mechanism with electricity and pneumatic
- Adopt most advanced side sealing device, wrapper length is unlimited
- Achieve excellent sealing effect
- Especially designed for the big and heavy wrapper
- The sealing line can be set any position of the wrapper. the shrink film thickness 0.03-0.06mm is suitable
- According to customer request, can add front and back conveyor, and color film locating system

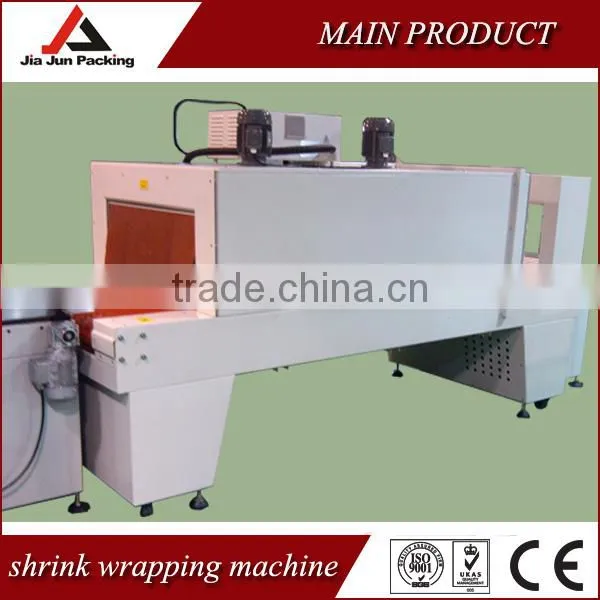

- SM-8040 adopt double fan motors make the heat air inside the tunnel evenly
- Different products combination can be sealed perfectly and automatically
- Closed packing for products to realize water proof and light proof
- Adopt PE film to meet long distance transport and won't broken after frequent handling
- Remove the shrinking tunnel. products could be packed by no poison PE shrinking film
DESCRIPTION
- Suitable for floor boards, ceramics, furniture, electric appliances or other shapes of products closed shrinking packing
Model |
CHL-8040 |
SM-8040 |
Machine dimension L×W×H(mm) |
2300×1600×1600 |
2800×1100×1690 |
Tunnel dimension L×W×H(mm) |
/ |
1800×800×400 |
Max packing size L×W×H(mm) |
L Unlimited×1000×250 |
1500×600×300 |
Sealing size L(mm) |
1000 |
/ |
Temperature(0C) |
0-200 |
0-400 |
Height of work table (mm) |
850±50 |
850±50 |
Packing speed(Pcs/min) |
6-12 |
40-60 |
Net weight (kg) |
1100 |
700 |
Power (kw) |
3 |
37 |
Power supply |
3PH 220V/380V 50/60Hz |
3PH 220V/380V 50/60Hz |
Air pressure (kg/cm2) |
6-8 |
/ |
Applicable film |
PE |
PE |
