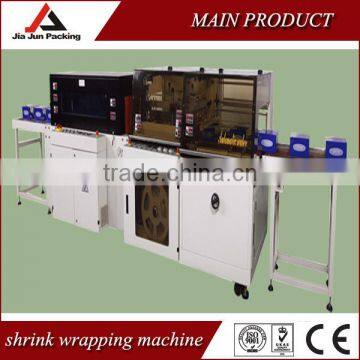

Good Quality Automatic Shrink Wrapping Machine
- Shanghai
- T/T
You May Like
-
Good Shrink Wrapping Machine ,shrink Wrap Machine ,cutting And Sealing Machine ,wholesale
-
High Speed Fully Automatic Shrink Wrapping Machine
-
Vrey High Speed Shrink Wrapping Machine,four Side Sealing ,TAIWAN Technology
-
Economic Book Shrink Wrapping Machine
-
Good Shrink Wrapping Machine Shrink Packing Machine L Type Cutting And Sealing Machine ,wholesale Manufacture
-
Easy Operate Semi Automatic Carton Strapping Machine With Good Quality
Product Details
| Condition | New | Application | Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380V/60HZ | Power | 18KW | |
| Place of Origin | Jiangsu, China | Brand Name | JIAJUN | |
| Model Number | Shrink wrapping machine | Dimension(L*W*H) | 1850*1350*1300mm | |
| Weight | 850KG | Certification | ISO9001 CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.DUPONT sealing knife ,steady2.Import photoelectric detection, precisely
3.automatic feeding
4.adopt unmanned connections
FEATURES
- Sealing part adopt vertical drive. Sealing interface is even vertical drive can overcome the wrinkle from auto L sealer and sealing line is not in the middle of the product and can achieve the excellent effect
- Adopts most advanced PLC, with safety protection and alarm device, ensure its continuous sealing action, with simple maintenance
- Film in-feeding length controlled by electric eye and timer, accurate control makes letter shrinking
- There are horizontal and vertical electric eyes, easy to switchover, and also easy to pack the thin and small products
- Auto remaining film reeling controlled by one motor, the remaining film will not break even if film is too loose or too tight
- To pack different sizes of products, sealing cutter's up and down controlled by a motor, the operator just need to press the button
- Blowing system is optional according to the size of packagers
- SM-5030LX adopts down blowing system, and wind force is controlled by a frequency inverter
- Conveyor is controlled by a frequency inverter, and conveying speed is adjustable
- The cover on the top of the tunnel is open-able, and easy for cleaning and maintenance.
- With a visible window, you can see the whole shrink processing
- In-feed power conveyor belt and out-feed roller conveyor belt is optional
DESCRIPTION
- Easy operation, excellent price and quality ratios are the main features characterizing on FL-5545TBD
- It can indeed be supplied with or without shrink tunnel
- Comparing with automatic L-bar sealer system, its most advantage is its height is up to 250mm max
- This model is widely used in a large quantity shrink wrapping
Specification:
Model | FL-4535TBD | FL-5545TBD | FL-6560TBD |
Machine dimension L×W×H(mm) | 1520×1180×1170 | 1850×1350×1300 | 2015×1470×1300 |
Max packing size L+H(mm) | ≤400 | ≤500 | ≤600 |
Max packing size W+H(mm) | ≤300 | ≤400 | ≤580 |
Max sealing size L×W(mm) | 450×350 | 550×450 | 650×500 |
Packing speed(pcs/min) | 20-35 | 20-35 | 20-35 |
Net weight (kg) | 600 | 800 | 850 |
Power (kw) | 2.5 | 2.8 | 3.2 |
Power supply | 1PH 110V/220V 50/60Hz | 1PH 110V/220V 50/60Hz | 1PH 110V/220V 50/60Hz |
Air pressure (kg/cm2) | 6-8 | 6-8 | 6-8 |
Applicable film | POF | POF | POF |
Model | FL-8075TBD | SM-5030LX |
Machine dimension L×W×H(mm) | 2430×1550×1300 | 1800×990×1300 |
Tunnel dimension L×W×H(mm) | / | 1500×500×300 |
Max packing size L+H(mm) | ≤800 | 1300×400×250 |
Max packing size W+H(mm) | ≤720 | / |
Max sealing size L×W(mm) | 850×700 | / |
Packing speed(pcs/min) | 20-35 | 0-20M |
Net weight (kg) | 930 | 650 |
Power (kw) | 3.5 | 16 |
Power supply | 1PH 110V/220V 50/60Hz | 3PH 220V/380V 50/60Hz |
Air pressure (kg/cm2) | 6-8 | / |
Applicable film | POF | POF |
Details:

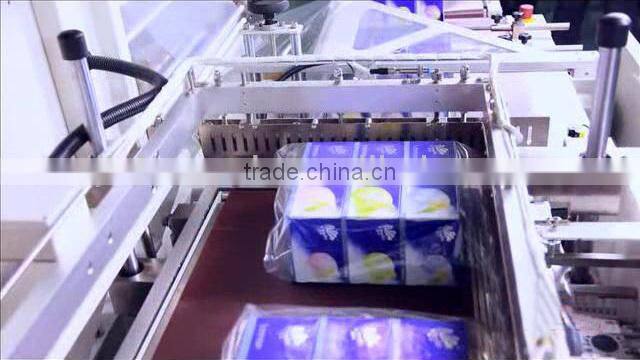

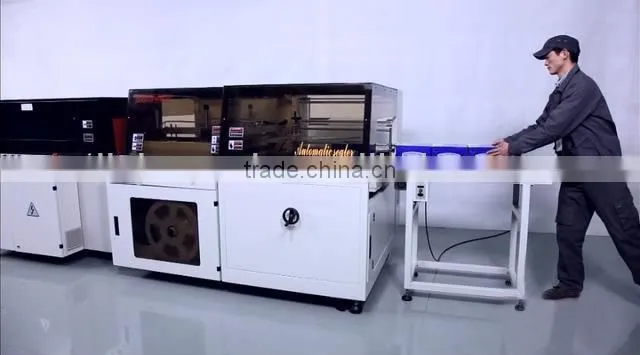

1.Automatic delivery the products to the machine:

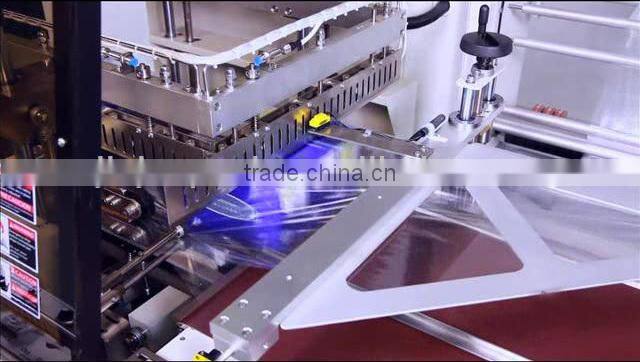

2.perfect sealing

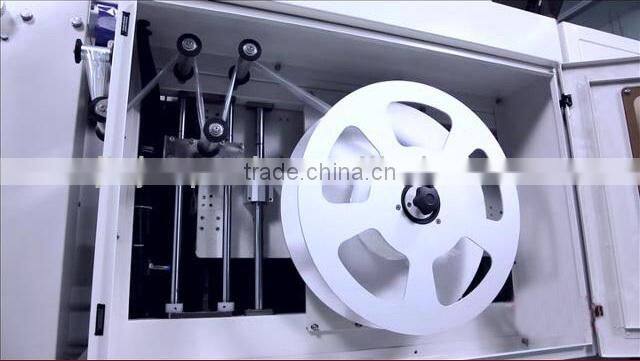

3.Auto remaining film reeling controlled by one motor
5.shrink film

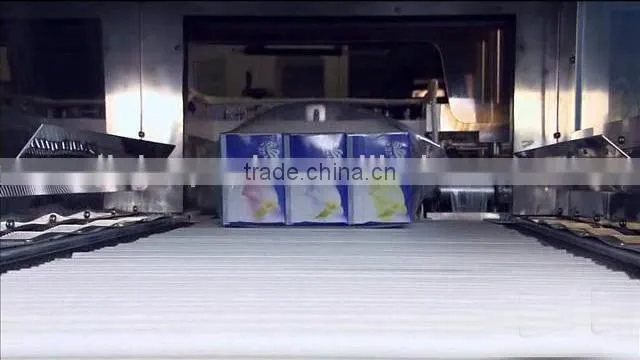

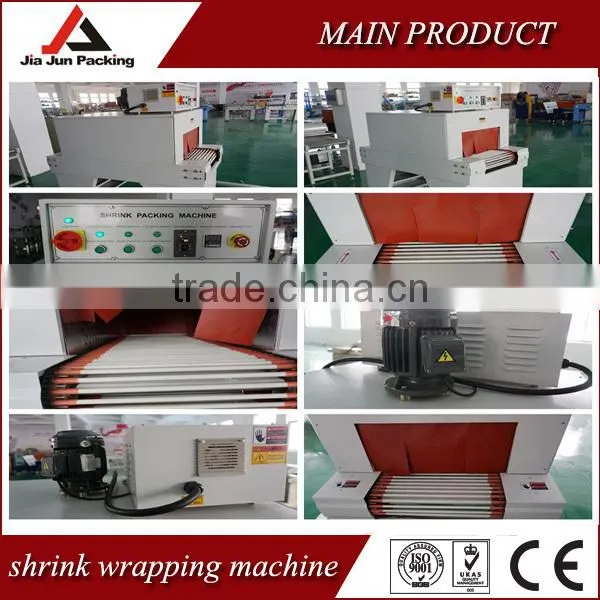

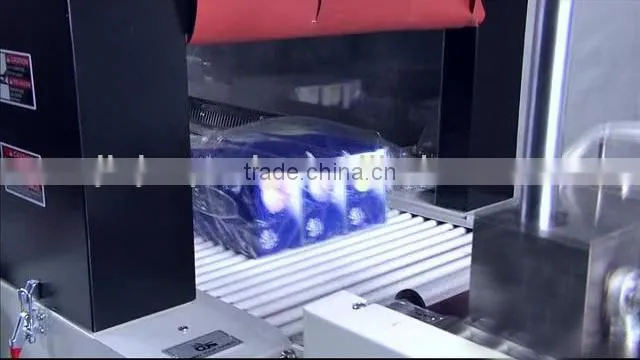

6.Inside of the tunnel
7.visible window of shrink wrapping machine

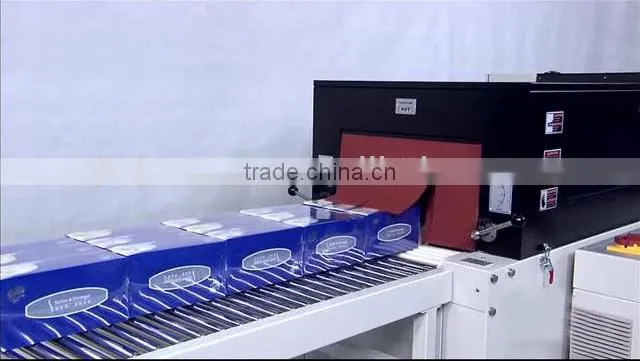

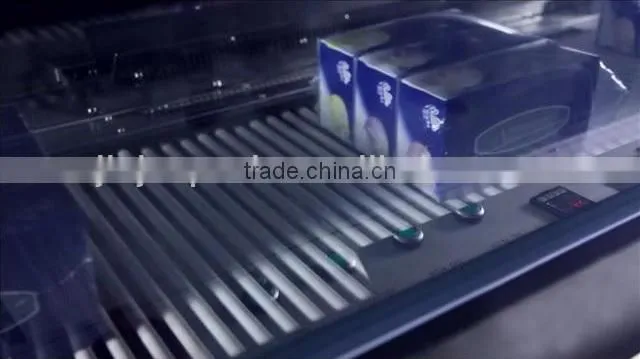

8.filish shrink and delivery to output conveyor

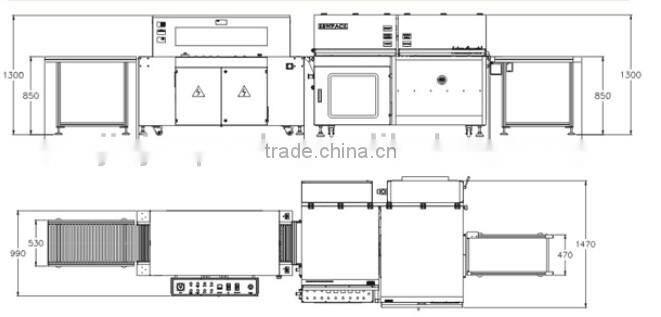

9.Engineer drawing
Our customers
Our company:
Looking forward to your feedback
