stretch wrapping machine features:
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 25~350% (adjustable).
6. SM-2517R with top press.
7. Programmable control and frequency converter is available.
8.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
9.pallet stretch wraping machine soft start and soft stop. 10.Suitable for heavy pallet

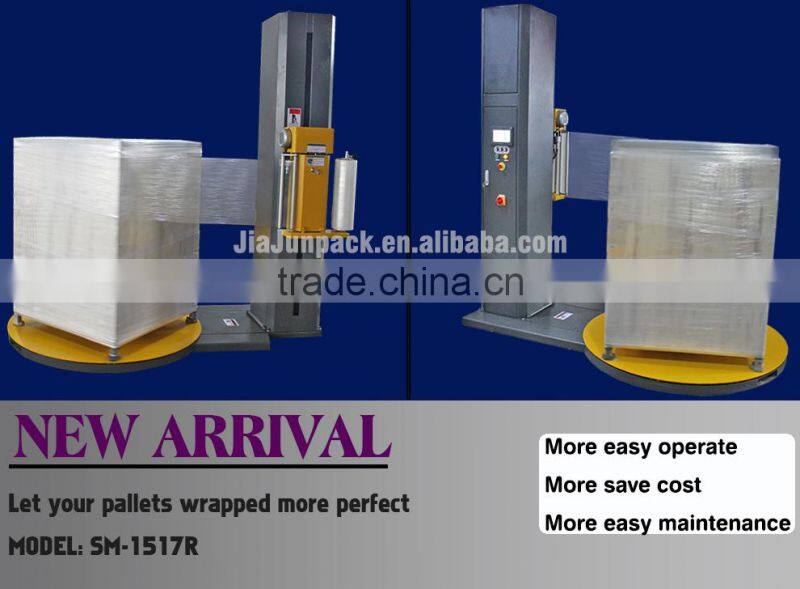

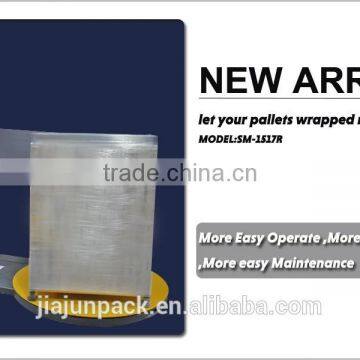

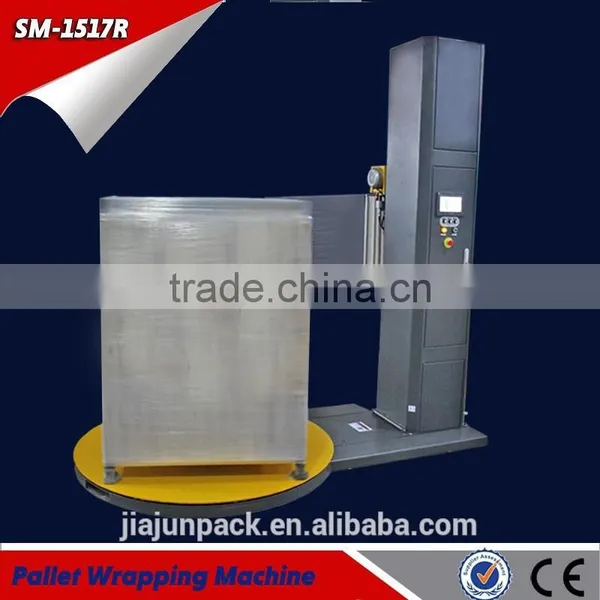

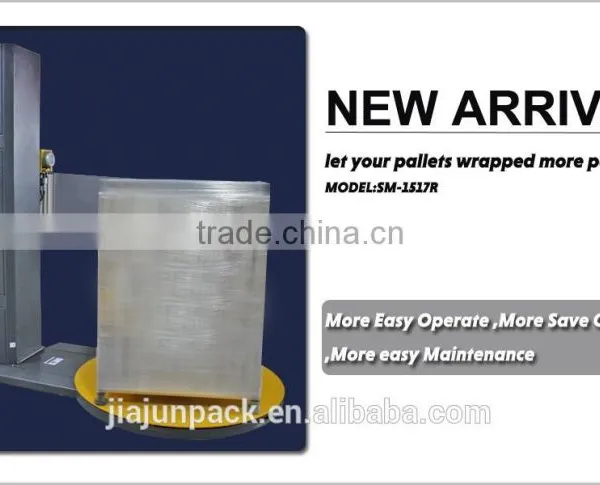

NEW pallet wrapping machine

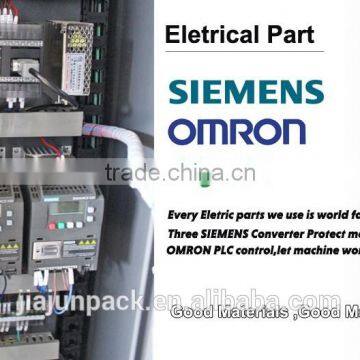

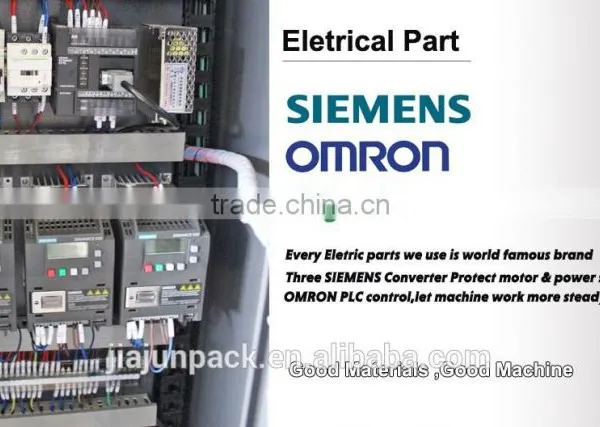

1.About our pallet wrapping machine Eletric Parts:

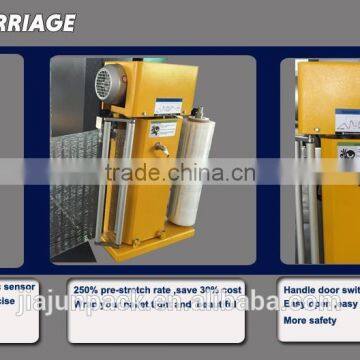

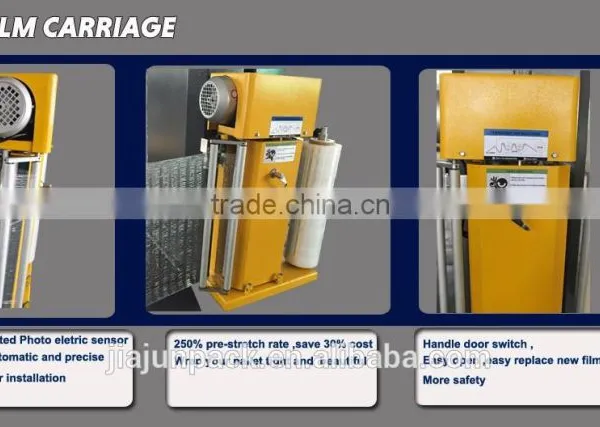

2.About stretch rapping machine Film Carriage:

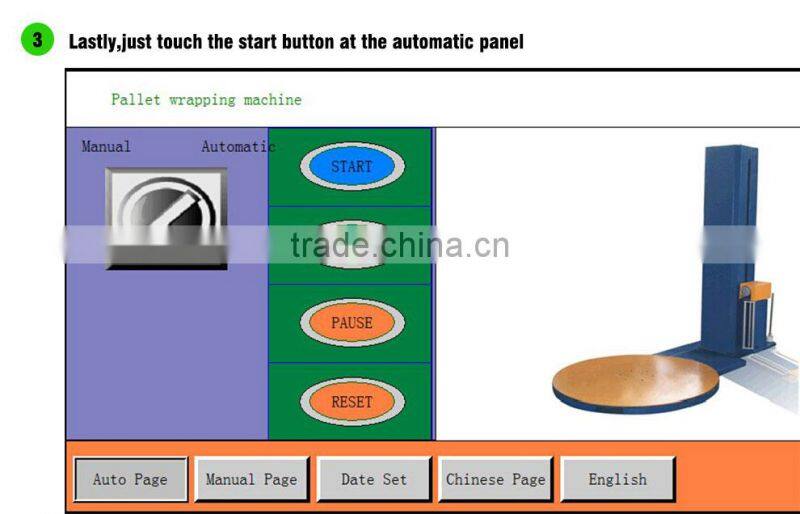

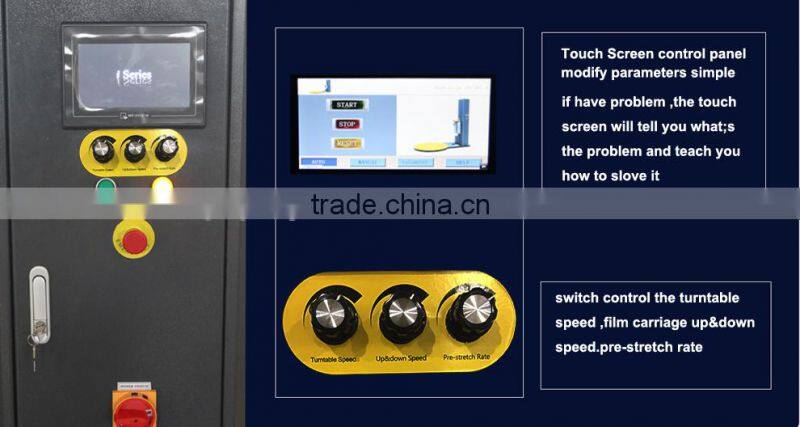

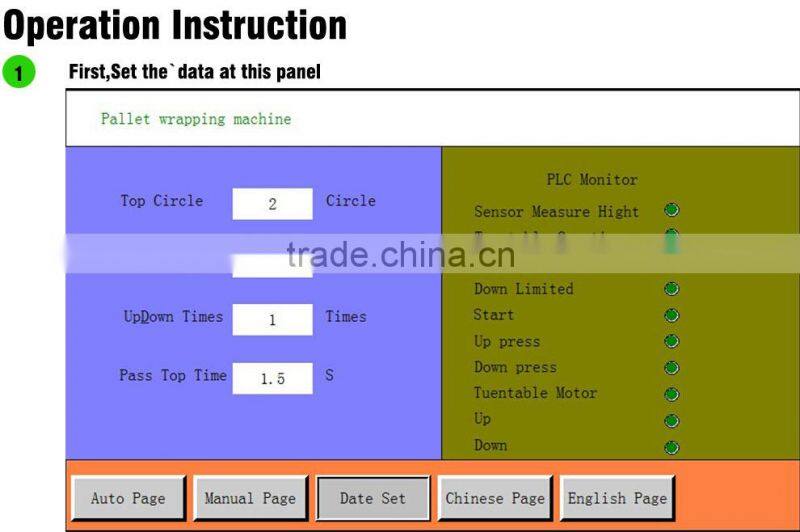

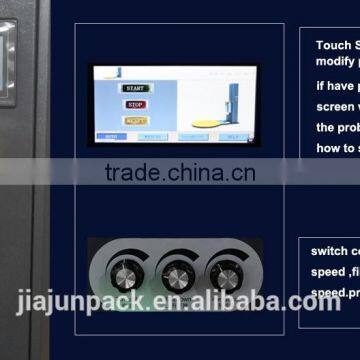

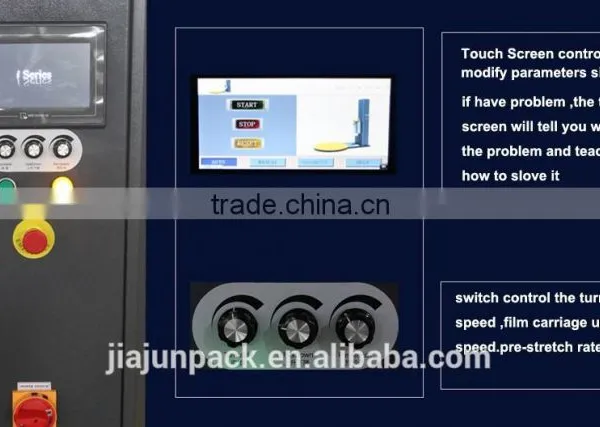

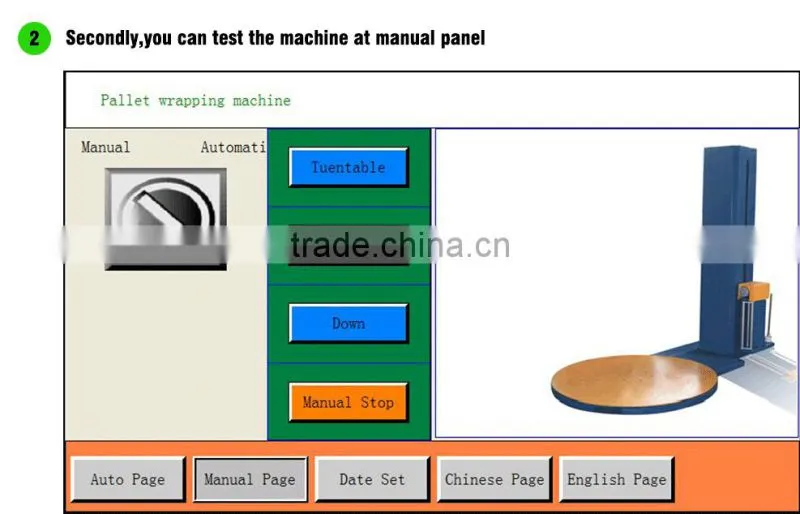

3.About control panel system:

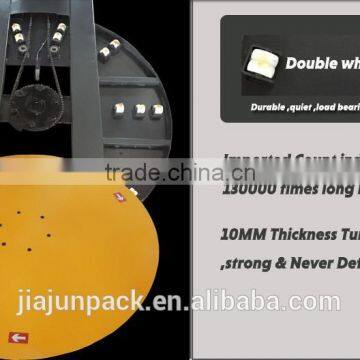

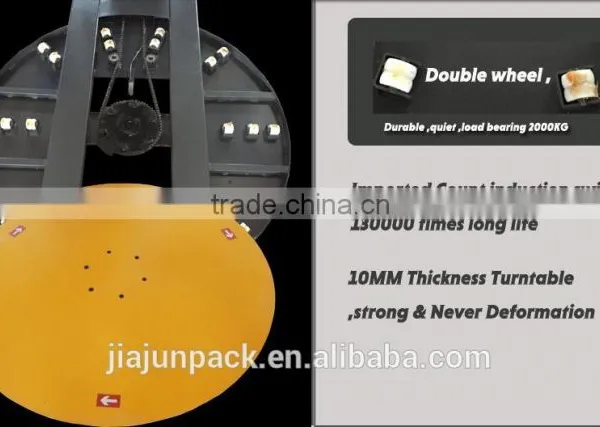

4.About The Turntable Of stretch Wrapping Machine:
5.About The Ramp:
Packing and delivery pallet wrapping machine :
Our Services
About stretch wrapping machine manufacturerJiajunpack:
Quotation
stretch wrapping machine specification:
model | SM-1517R |
max packing hight | 2000mm(can be customized) |
max packing area | 1300x1300mm |
max packing weight | 2000KG |
turntable size | 1500mm(can be customized) |
turntable speed | 0-13r/min |
Working speed | 30-40loads per hour |
power supply | 110V/220V/380V |
control type | PLC |
consumables | LLDPE |
film width | 500mm |
ramp | optional |
measuring hight | photoelectric sensor |
turntable start mode | frequency conversion slow start |
machine size | 2600x1500x2400mm |
weight | 480KG |
delivery time | 7 working day |
warranty | 2 year(free charge spare parts ) |
maintenance service | engineer help to slove any problem |
Looking forward to your feedback
