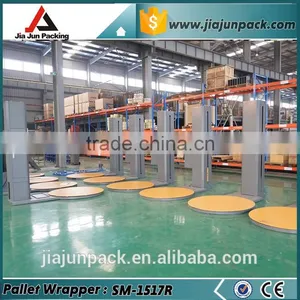

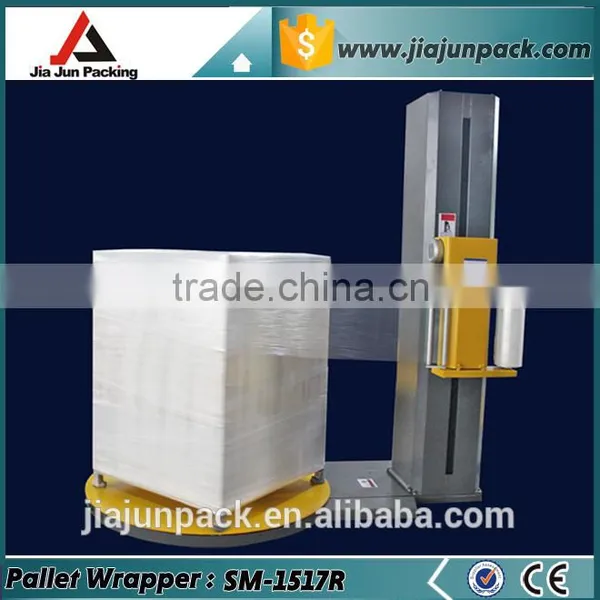

Automatic Pallet Wrapping Machine

Automatic Pallet Wrapping Machine photo-1
Automatic Pallet Wrapping Machine photo-2
Automatic Pallet Wrapping Machine photo-3
Automatic Pallet Wrapping Machine photo-4
Automatic Pallet Wrapping Machine photo-5
Automatic Pallet Wrapping Machine photo-6
US$ 2,300 - 3,800 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, all industries
Packaging Type:
Other, Wooden Case
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, all industries
Packaging Type Other, Wooden Case
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Place of Origin Jiangsu, China
Brand Name Jiajun
Model Number SM-1517
Certification CE

Intruduction  of  Pallet Wrapping Machine :



Pallet wrapping machine is the packer,which wraps up the packing machine by the flexible packaging materials.The mainstream wrapping machine products currently on the market are pallet wrapping machines, no pallet wrapping machines, pre-tension wrapping machine.





Application:

Pallet wrapping machine  is widely used in apparel, beverage,chemical ,commodity  ,machinery ,electriol,medical ,textiles , electronic industry, building materials, home appliances, papermaking, foodstuff  etc









Features:

1.  Suitable for heavy pallet, Soft start/stop, PLC control, home position, sensor test pallet height

2.The machine  adopt PLC and transducer controlling and can design the wrapping way and times.

3. It has the limitative place of journey controlling or photoelectricity explorer and determine the cargo height automatically

4. The plate replaces automatically to make the orientation of turnover of tray truly

5. The film proportion of pulling is 25%



6.Digital control circuit features maximun stablity,long service life and minimun.

7.Slow start and stop function effective prevents top package froming dropping.

8.Touch sensing screen .

9.Top and bottom package can be set by entering dated.



Techinical data:

 1.Turntable diamter: Φ1500mm

2.Max.wrapping height: 2000mm

3.Max.wrapping area: 1300×1300mm

4.Max.wrapping weight: 2000kgs

5.Turntable speed: 0-13 r/m

6.Film elevation speed: 0-3m/min

7.specification of film :LLDPE

 8.Film width: 500mm

9.Thickness of film :17-24 μm

10.Motorturn-around machine: 1HP,elevator 1/8HP

11.Machine dimensions: 2600×1500×2400mm

12.Weight: 650kg
