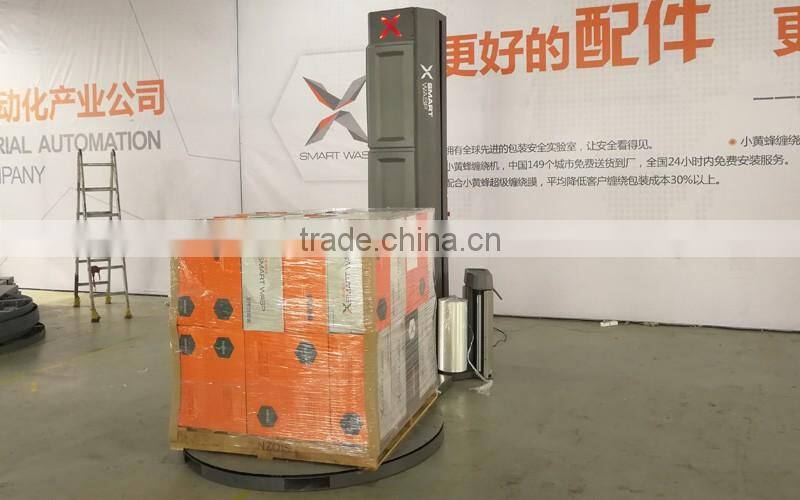

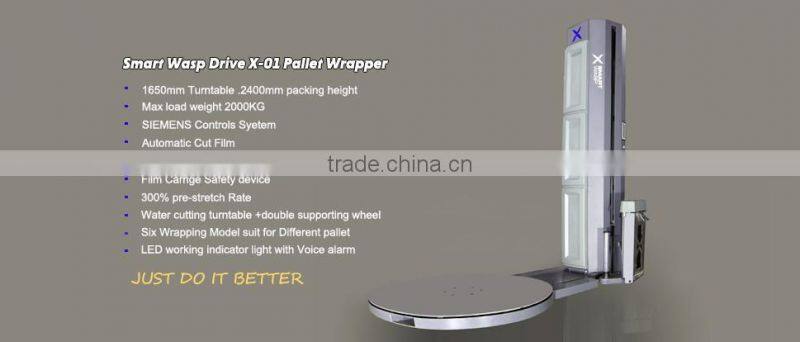

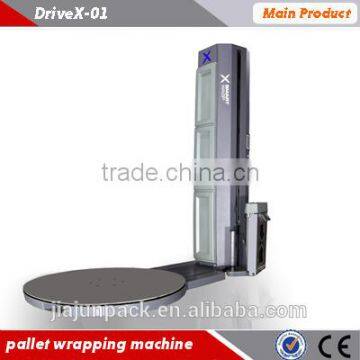

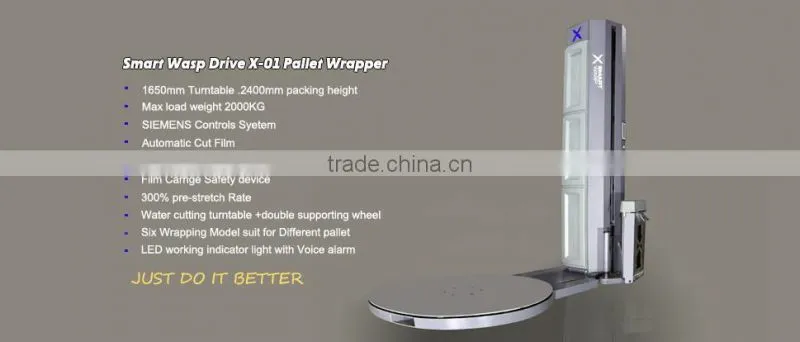

Good Automatic pallet wrapping machine with automatic cut film function SIEMENS control system Europe quality

Product Application

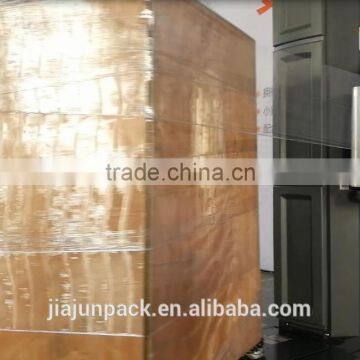

1.Pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et

Video Link on youtube :

https://youtu.be/LHhBXBKi-mM

Main Features

 1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for heavy pallet

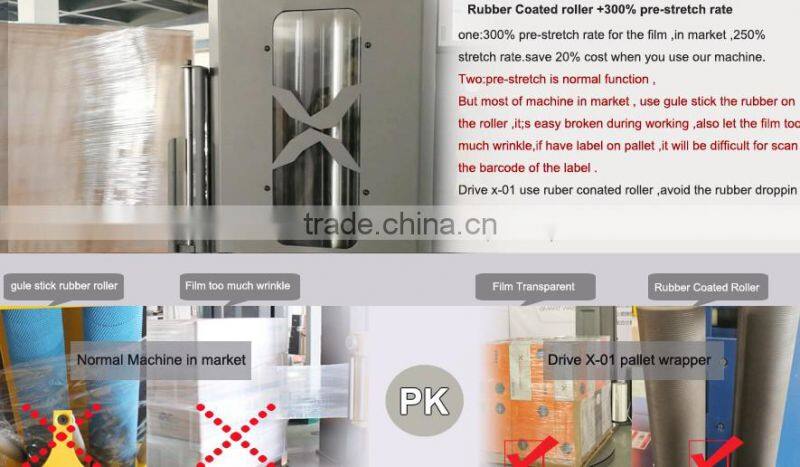

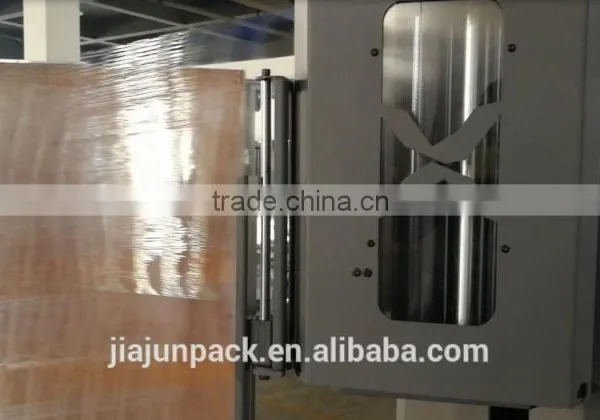

1.Rubber Coated roller +300% pre-stretch rate

one:300% pre-stretch rate for the film ,in market ,250% stretch rate.save 20% cost when you use our machine.
Two:pre-stretch is normal function ,
But most of machine in market , use gule stick the rubber on the roller ,it;s easy broken during working ,also let the film too much wrinkle,if have label on pallet ,it will be difficult for scan the barcode of the label .
Drive x-01 use ruber conated roller ,avoid the rubber droppin problem .and stretch film soomthly,after stretch ,film still transparent ,easy to scan barcode and see the label.

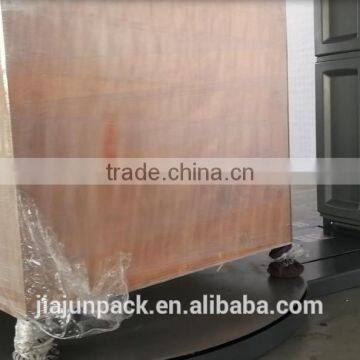

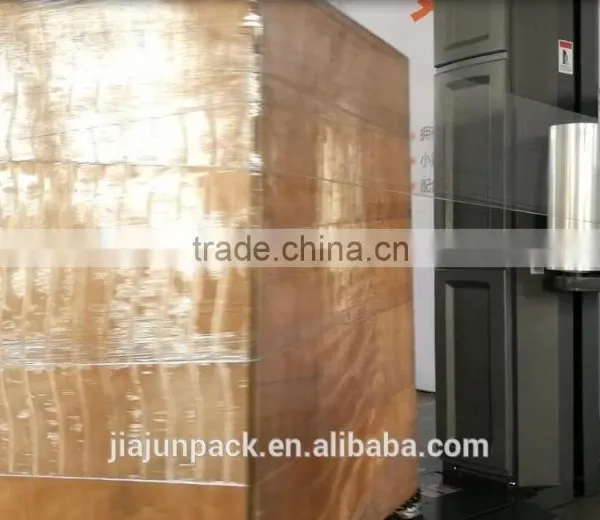

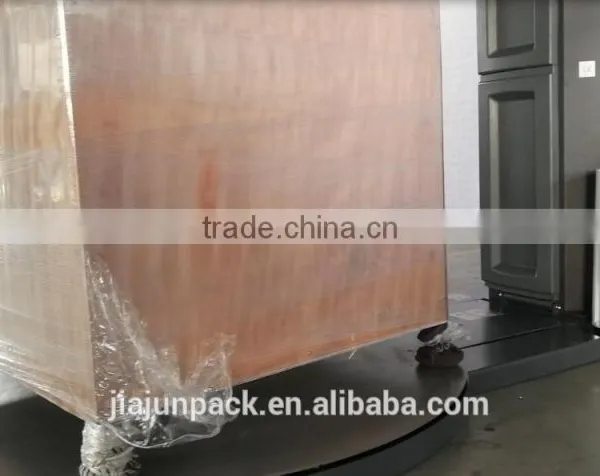

2.Whole pallet Film Grip Sytem

Whole pallet Film Grip Sytem is a mechical device let the bottom of film to be a film rope ,when wrapping the pallet ,this film rope will strap the whole pallet from bottom to top .it;s suit for pallet with carton box ,it can insteady of horizeontal strapping machine .let the whole pallet product can be packed steady ,and no need worry about the products fall down during truck emgency brake or big shake during sea shipping .

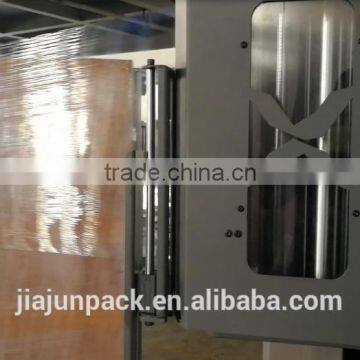

3.Automatic Cutting Film

After machine finish wrapping the pallet ,our pallet wrapping machine will cut the film automatic ,no need your worker to cut the film by other tool or hand ,it will be great help for worker ,the film mornal is not easy to break by hand .so let machine do it automatic !

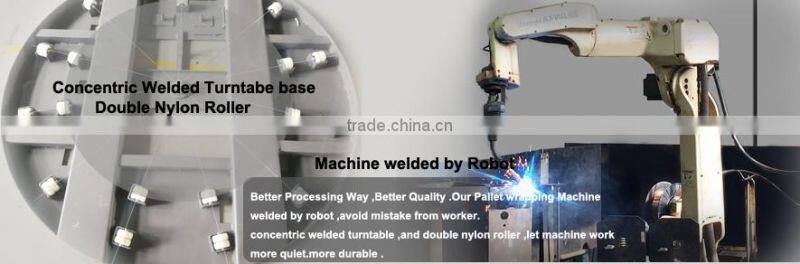

4.Robot Welding

Better Processing Way ,Better Quality .Our Pallet wrapping Machine welded by robot ,avoid mistake from worker.
concentric welded turntable ,and double nylon roller ,let machine work more quiet.more durable .

5.Intelligent Touch screen

JSK pallet stretch wrapping machine use the best touch screen"SIEMEN ",the reaction of the touch screen and function all is perfect
the touch screen can set the "turntable speed .up& down speed and film carriagre speed directly" and we also prepare for our customer 6 wrapping model for they pallet ,most of customer they have diffierent pallet to wrap ,so the different pallets need different wrapping speed ,wrapping force ,the customer just need set the 6 model one time ,then just choose the right model for they pallet , no need adjsut the parameter every time any more.

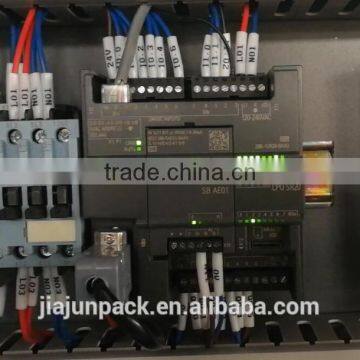

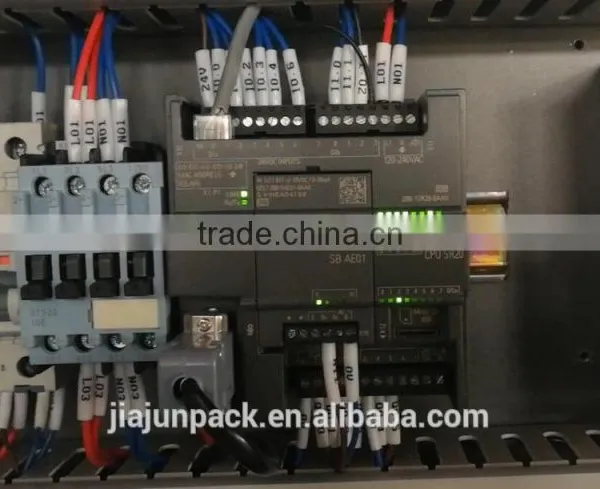

6.We use Good brand spare part .

if you want to buy a good and durable machine,the eletric part will be very very important ,if one eletric use a bad brand ,it;s a big risk for the customer ,becuase one part not work whole machine stop working,and the eletric part problem ,sometime difficult to fix ,because you do not know which part broken from the serval parts ,so our pallet stretch wrapping machine all part we use the famous brand ,we do not want machine have any problem from the eletric parts .so that we can make our our machine be used for lone time without problem.

7.We Care About Machine Safety

The safety is very very important for the machine and every company and every worker ,so we consider all the parts which have the risk of safety problem ,and find slution to let machine be very safety ,we care the workers' foot and head ,we care the eletric shock ,also we consider if the machine use long long time ,the machine broken ,how can let the machine still safety .
This is we must do ,because this is what you care !

How we manufature the pallet wrapping machine

a good machine must need a good beginning ,this beginning means good design,if the design have problem ,no matter how good the spare part you use ,all is in vain ,so  pallet stretch wrapping machine have 18 engineers just study and design  pallet wrapping machine ,after Desgin ,we test the sample ,after everything is fine ,we begin to manufacture the machine ,we use good laser cutting machine and good bend machine to bend and cut the steel ,we use robot to weld the machine ,after welding our worker will check all the parts ,and then printing the machine ,the install worker must according to our SOP to install the machine ,make sure no missing parts ,after intallation we test each machine ,everything is fine ,wer pack the machine and ship out ,about the packing the machine ,we use steel+wooden box ,pallet wrapping machine easy damage during transport ,so we use the steel box and surface covered with wooden board ,it will be safety for the machine,when customer get the machine ,everything is fine .

1.what;s mast height of machine?

Dirve x pallet wrapping machine mast height is 2650mm ,and the max packing height  is 2400mm ,if you pallet over 2400mm,you need choose mast height 3200mm,the max packing height 3000mm

-----------------------------------------------------------

2.How to choose control system?

How to use the pallet grip system

bottom grip will be work for each pallet ,but the whole pallet grip need you adjust the grip system let it work for whole pallet

-----------------------------------------------------------

3.what;s turntable size ?

the standard turntable size is 1650mm .

1800mm and 2000mm turtable optional

-----------------------------------------------------------

4.what;s temperature can be use ?

standard machine need > 0 degree

if <0 degree ,need tell us ,we need use a special motor for machine

-------------------------------------------------------

5.what;s the thickness of turntable steel and use what cut the steel?

turntable steel 10mm ,and use water cutting teachnology,do not use laser cutting.

--------------------------------------------------------

6.what;s max weight can be use?

our standard machine max load weight 2000KG ,above 2000KG we need change to steel roller under the turntable ,standard  machine use plastic roller .

-----------------------------------------------------------

IF YOU HAVE OTHER QUESTION ,PLEASE " CONTACT US  NOW"
