Home > Products > Pallet Wrapping Machine > High performance automatic pallet stretch wrapping machine with cutting system 300%pre stretch
High performance automatic pallet stretch wrapping machine with cutting system 300%pre stretch
- 300 Set / Sets per Month
- shanghai/ningbo
- T/T L/C D/P D/A Credit Card PayPal
- Without electricity waste tire doubling and tripling machine scrap tyre packing unpacking machine
- MK60S Semi Automatic Strapping Machine
- Mastek Strapping Head
- MK900 Fully Automatic Strapping & Wrapping All In One Machine
- Chocolate Candy Foil Folding Wrapping Machine
- chicken/bouillon cube Wrapping machinery /cube packaging machinery
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Film |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V/110V/50/60HZ 1 PHASE | Power: | 1.2kw | Place of Origin: | Jiangsu, China |
Brand Name: | Smart wasp | Model Number: | DRIVE X-01 | Dimension(L*W*H): | 2700mmx1650mmx2650mm |
Weight: | 750KG | Certification: | CE Certificate | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Production Application
1Pallet stretch wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet stretch wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turntable
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet stretch wraping machine soft start and soft stop.
9.Suit for heavy pallet

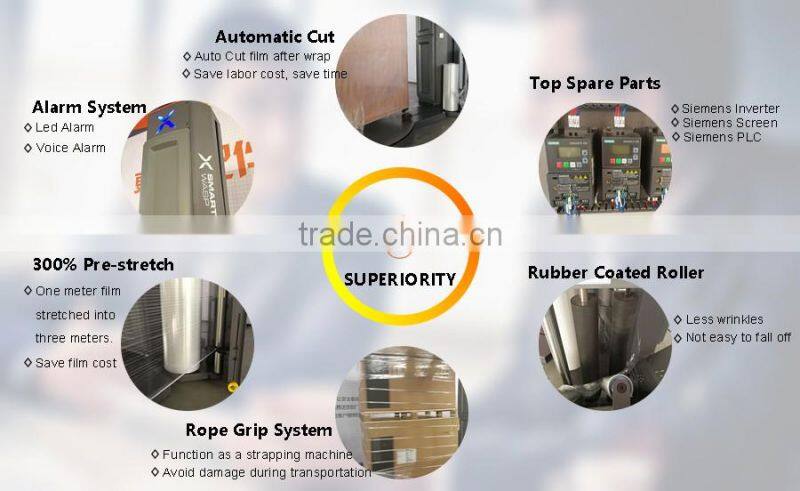

1.Rubber Coated roller +300% pre-stretch rate
300% pre-stretch rate for the film ,in market ,250% stretch rate.save 20% cost when you use our machine.
Most of machine in market , use gule stick the rubber on the roller ,it's easy broken during working ,also let the film too much wrinkle,if have label on pallet ,it will be difficult for scan the barcode of the label .
Drive x-01 use ruber coated roller ,avoid the rubber droppin problem .and stretch film soomthly,after stretch ,film still transparent ,easy to scan barcode and see the label.
2.Whole pallet Film Grip Sytem
Whole pallet Film Grip Sytem is a mechical device let the bottom of film to be a film rope ,when wrapping the pallet ,this film rope will strap the whole pallet from bottom to top .it;s suit for pallet with carton box ,it can insteady of horizeontal strapping machine .let the whole pallet product can be packed steady ,and no need worry about the products fall down during truck emgency brake or big shake during sea shipping .
3.Robot Welding
Better Processing Way ,Better Quality .Our pallet stretch wrapper welded by robot ,avoid mistake from worker.
concentric welded turntable ,and double nylon roller ,let machine work more quiet.more durable
4.Automatic Cutting Film
After machine finish wrapping the pallet ,our pallet stretch wrapping machine will cut the film automatic ,no need your worker to cut the film by other tool or hand ,it will be great help for worker ,the film mornal is not easy to break by hand .so let machine do it automatically!
5.We use Good brand spare part .
If you want to buy a good and durable machine,the eletric part will be very very important ,if one eletric use a bad brand ,it's a big risk for the customer ,becuase one part not work whole machine stop working,and the eletric part problem ,sometime difficult to fix because you do not know which part is broken from the serval parts ,so our pallet stretch wrapping machine all part we use the famous brand ,we do not want machine have any problem from the eletric parts .so that we can make our our machine can be used for lone time without problem.
6.Machine Safety .
The safety is very very important for the machine and for every company and every worker ,so we take all the parts which have the risk of safety problem in to consideration ,and find slution to let machine be safer. We care the workers' foot and head ,we care the eletric shock. This is we must do ,because this is what you care !
We have exhibitions in many countries ,we want to find a partner who is professional in packing machine ,we let our partner provide service for the end user. If you are end user ,we can support you to install machine by video, and if you are distributor ,we can support you to learn the machine ,and let you serve your customer much better .
More details please contact us !
1.what‘s mast height of machine?
Dirve x-01 pallet stretch wrapping machine mast height is 2600mm ,and the max packing height is 2400mm ,if your pallet over 2400mm,you need choose mast height 3200mm,the max packing height 3000mm
2.How to choose control system?

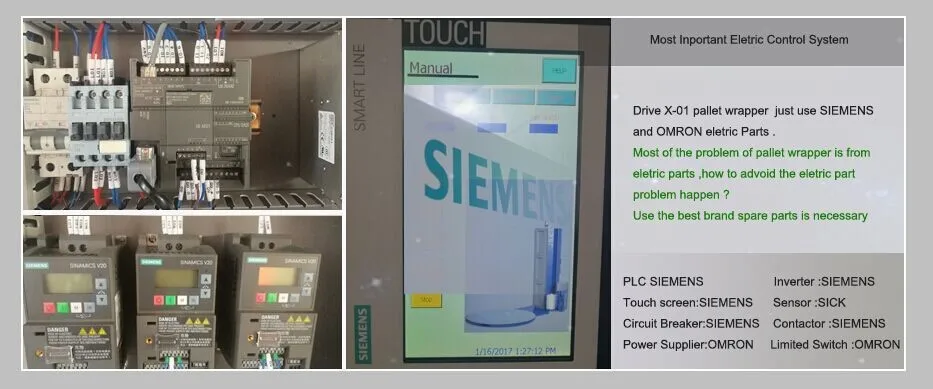

Dirve X-01 all use Siemens control
system.
Top brand spare parts ensure a longer machine lifespan
3.what's turntable size ?
The standard turntable size is 1650mm .
1800mm and 2000mm turtable is
optional
