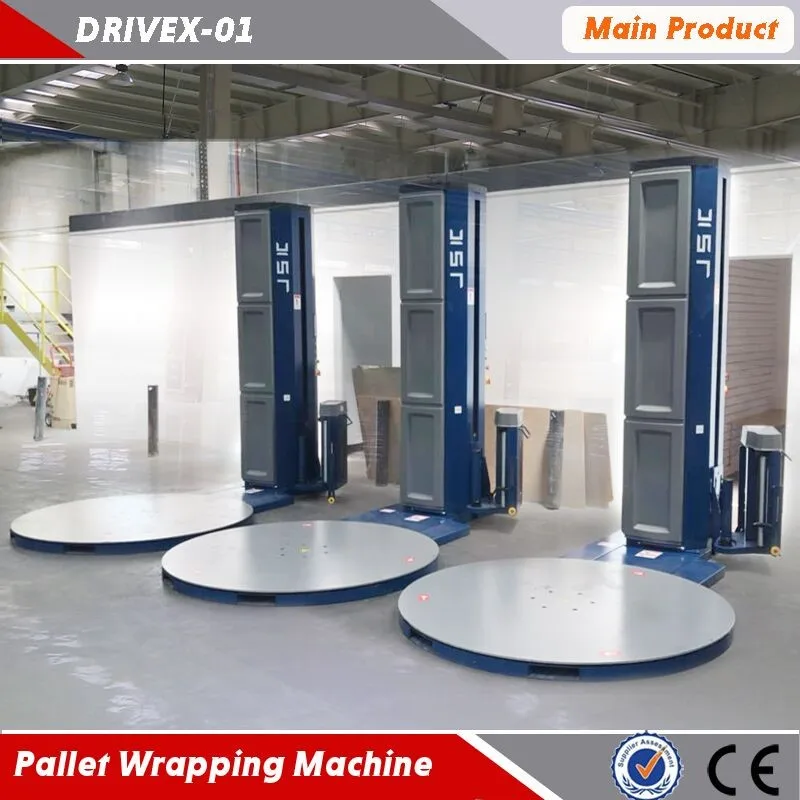

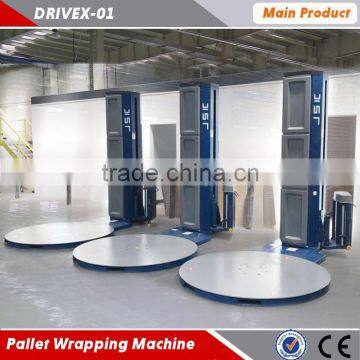

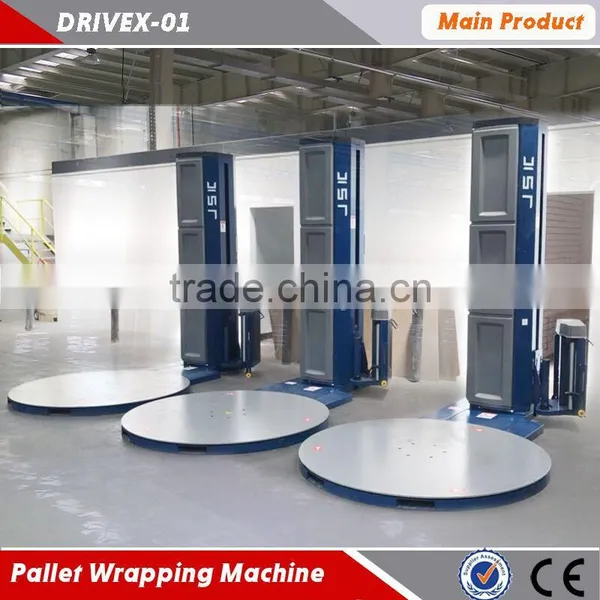

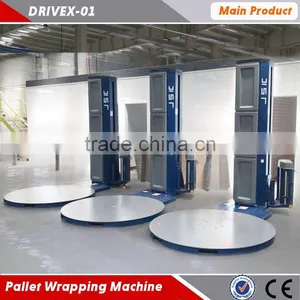

High performance new automatic stretch wrapping machine with SIEMENS control system save 30% cost
- 300 Set / Sets per Month
- shanghai/ningbo
- Without electricity waste tire doubling and tripling machine scrap tyre packing unpacking machine
- MK60S Semi Automatic Strapping Machine
- Mastek Strapping Head
- MK900 Fully Automatic Strapping & Wrapping All In One Machine
- Chocolate Candy Foil Folding Wrapping Machine
- chicken/bouillon cube Wrapping machinery /cube packaging machinery
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Film |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V/110V/50/60HZ 1 PHASE | Power: | 1.2kw | Place of Origin: | Jiangsu, China |
Brand Name: | JSK | Model Number: | DRIVE X-01 | Dimension(L*W*H): | 2700mmx1650mmx2400mm |
Weight: | 600KG | Certification: | CE Certificate | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Production Application
1Pallet wrap machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for heavy pallet
10.Remote control sytem
1.Variable wrapping force system
Automatic adjust wrap force according to pallet shape
1.let every part of the pallets be wrapped tightly
tect the corner of the loads ,avoid the corner concave.
300% Pre-stretch rate , save 30% film compared to traditional pallet wrapping machine .
2. Grip system
Pallet grip system : film bottom narrowed to become film rope , film rope grip to pallet & products during wrapping.
1.during transport ,no need worry the products fall down when the pallets get violent vibration
2.if the truckfork damage the film on the bottom of pallet ,the film do not breach .
3.pallet bottom grip and whole journey grip can replace the horizontal strapping machine
3.Intelligent LED lIght Alarm system
During working ,if the film break or film exhaust,drive X pallet wrapping machine will stop working ,and the warning light remind the worker . The Light use LED ,can be use 100000 hours
4.Intelligent Touch screen
JSK pallet stretch wrapping machine uses the best touch screen"SIEMENS ",the reaction of the touch screen and function is perfect .
The touch screen can set the "turntable speed .up& down speed and film carriagre speed directly" and we also prepare for our customer 6 wrapping model for they pallet ,most of customer they have diffierent pallet to wrap ,so the different pallets need different wrapping speed ,wrapping force ,the customer just need set the 6 model one time ,then just choose the right model for they pallet , no need adjsut the parameter every time any more.

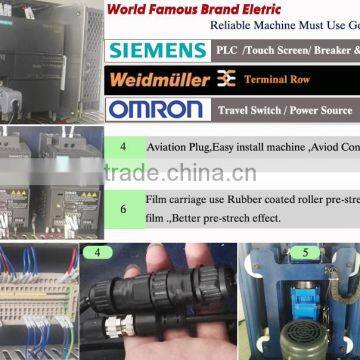

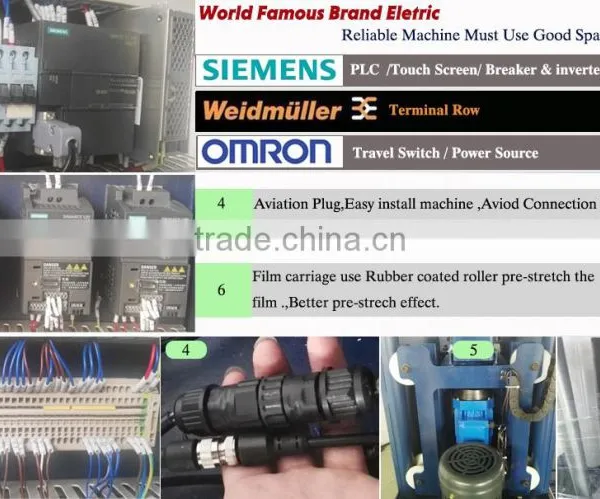

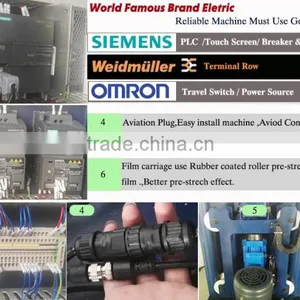

We use Good brand spare part .
If you want to buy a good and durable machine,the eletric part will be very very important ,if one eletric use a bad brand ,it's a big risk for the customer ,becuase one part not work whole machine stop working,and the eletric part problem ,sometime difficult to fix because you do not know which part is broken from the serval parts ,so our pallet stretch wrapping machine all part we use the famous brand ,we do not want machine have any problem from the eletric parts .so that we can make our our machine can be used for lone time without problem.

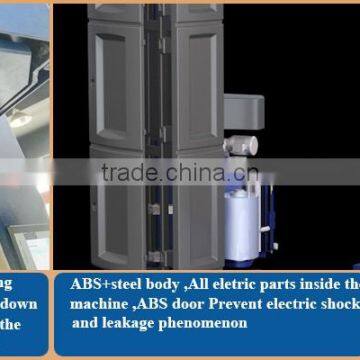

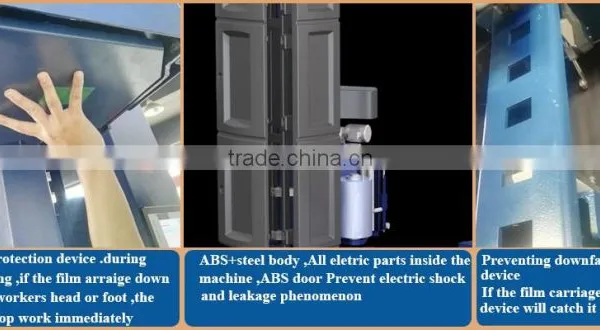

Machine Safety .
The safety is very very important for the machine and for every company and every worker ,so we take all the parts which have the risk of safety problem in to consideration ,and find slution to let machine be safer. We care the workers' foot and head ,we care the eletric shock. This is we must do ,because this is what you care !
We have exhibitions in many countries ,we want to find a partner who is professional in packing machine ,we let our partner provide service for the end user. If you are end user ,we can support you to install machine by video, and if you are distributor ,we can support you to learn the machine ,and let you serve your customer much better .More details please contact us !

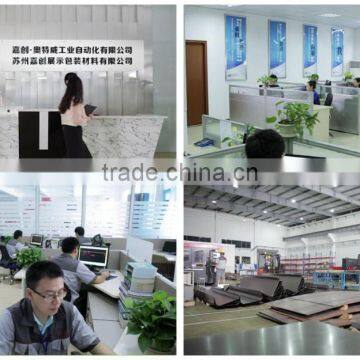

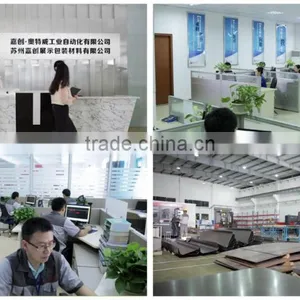

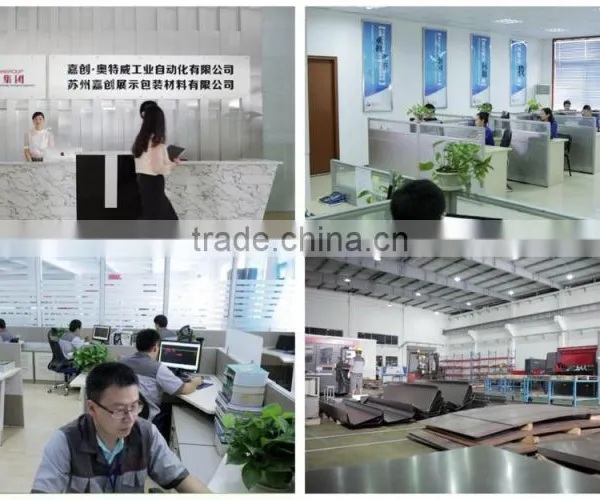

How we manufature the machine ,why you can trust us .
A good machine must need a good beginning ,this beginning means good design,if the design have problem ,no matter how good the spare part you use ,all is in vain ,so JSK pallet stretch wrapping machine have 18 engineers just study and design JSK pallet wrapping machine ,after Desgin ,we test the sample ,after everything is fine ,we begin to manufacture the machine ,we use good laser cutting machine and good bend machine to bend and cut the steel ,we use robot to weld the machine ,after welding our worker will check all the parts ,and then printing the machine ,the install worker must according to our SOP to install the machine ,make sure no missing parts ,after intallation we test each machine ,everything is fine ,wer pack the machine and ship out ,about the packing the machine ,we use steel+wooden box ,pallet wrapping machine easy damage during transport ,so we use the steel box and surface covered with wooden board ,it will be safety for the machine,when customer get the machine ,everything is fine .
1.What's "JSK"
The JSK was founded by Jiachuang group at 2014. Jiachuang group is suzhou jiajun packing who have 15 years experience in industrial packaging field joint other nine powerful packaging machine manufacture and spare parts supplier(SIEMENS) established group company. JSK is a platform for industrial automation resources integration ,use ten company other advantage resources and technology invest and working together ,aim to reduce manufacture cost ,according to customer deep demands made good quality market welcomed machine, JSK Drive x world's advanced Pallet wrapping machine is first JSK brand machine,and begin sell on AUG 2015,and got High response from market . JSK will provide more and more high quality packing machine for customer in the future .let JSK packing machine help more and more companies save cost and pack their products perfect ,and at same time ,promote the development of industrial automation.
1.what‘s mast height of machine?
Dirve x pallet wrapping machine mast height is 2400mm ,and the max packing height is 2200mm ,if you pallet over 2200mm,you need choose mast height 3200mm,the max packing height 3000mm
2.How to choose control system?
Dirve X have three control systems for choose.
The standard control system is:
JSK system
SIEMENS controlo system and OMRON system is optional
3.what's turntable size ?
The standard turntable size is 1650mm .
1800mm and 2000mm turtable is
optional
