Semi Automatic Milk Powder Tin Can Filling Machine
Device No. HT-XGFT-1400
Device Type: Liquid Filling Line

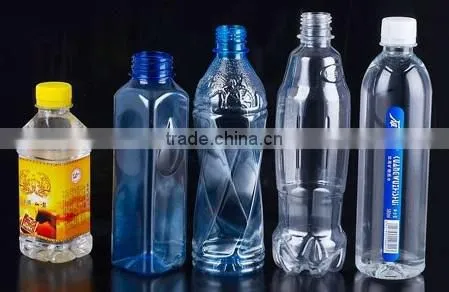

Bottle Material: Glass, plastic
Filling Material: juice
Filling volume: 100-1000ml/bottle
Filling Speed: 1000-12000BPH
Filling temperature: environment temperature
Power Supply: 3.5Kw/380V/50Hz
Air supply: 0.2-0.3m³/Min.
Construction:

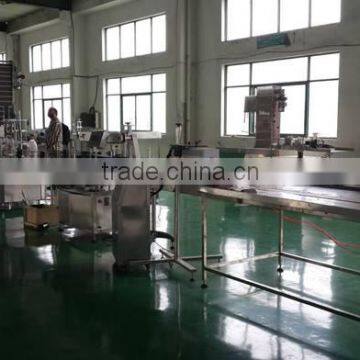

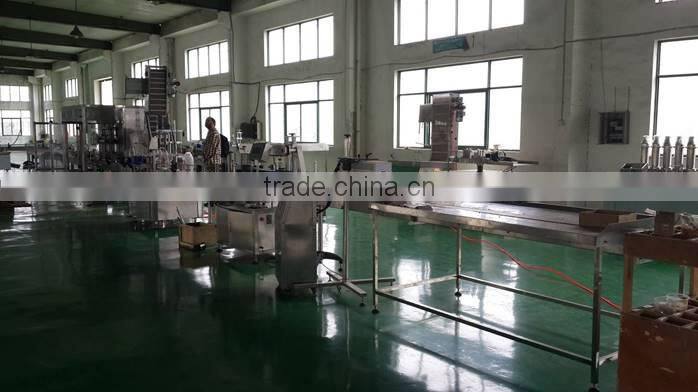

Bottle placed platform – Rotary bottle washing machine – self-flow type liquid filling machine – automatic capping machine – labeling machine – ink coding machine – boxed platform
Bottle placed platform
Main parts: stainless steel, guardrail, motor
Placed bottle to this platform by manual, and then transported to next step by conveyor belt.
Size: Length 1500mm
Width 1000mm
Rotary type bottle washing machine
Main parts: 1 Base Frame 2 water tank 3 up spray 4 down spray 5 bottle output cylinder 6 drive system 7 bottle input cylinder 8 filter 9 10 motor 11 control box
Bottle washing machine adopts our latest edition, following is the working flow:
1. The bottle input device transporting bottle to washing machine, 2. Then chain clamp clamping bottle and make bottle to inversion type, 3. Starting washing for both inner & outer bottle, 4. After washing finished, turn bottle right, flushing inner & outer bottle by purified water again, and 5. Transporting bottle out the washing machine by output device.
The whole process is smooth & steady, and can realize high washing quality, conform to GMP requirements.
Performance feature
This washing machine adopts continuous tracking washing method, suitable for different shape of bottle.
Parameters
Type | HT-XP-12 |
Washing head qty. | 12 Heads |
Washing ability | 1500-2000BPH |
Bottle diameter | 60-100mm |
Bottle height | 160-320mm |
power | 1.1kw |
weight | 600kg |
dimension | 1400×1250×1800mm |

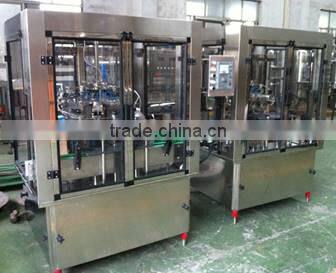

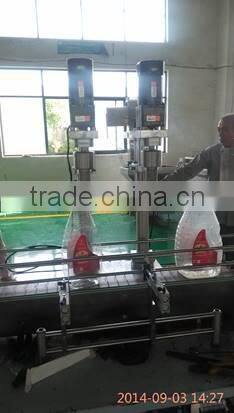

Self-flow liquid filling machine
Self-flow filling machine is a kind of machine that PLC controller, photoelectric sensor, pneumatic actuator all in one. Main aims at those liquid materials which are easy foaming such as juice, soybean sauce, vinegar, vegetable oil, medical liquid.
Maintenance & clean for this machine are convenient & quickly, and host materials all adopt high quality stainless steel(SS304/SS316), in line with the GMP requirements, is the ideal filling equipment for pharmaceutical, cosmetic, fine chemical and other industries, can also cooperates with other device such as bottle washing machine, oven, capping machine.
characteristic
Adopts self-flow filling, suitable for all kinds of good fluidity liquids with high precision, the pump has easy disassembly structure makes cleaning and disinfection convenient.
1. PLC control system, frequency control of motor speed, high degree of automation.
2. If lack of bottle, machine will stop filling, it can realize auto-count function
3. it’s convenient to adjust filling volume by vacuum tube controlled.
4. The machine is suitable for various specifications of bottles, easy adjusting, it 5. Can be finished in a short period of time.
6. Whole machine designed as per GMP requirements
7. If this machine be used to fill white wine, need an explosion-proof processing.
Parameters
type | HT-YG-04 |
Filling head qty. | 4-12Heads |
Power supply | 380V /220V /50HZ |
power | 0.18KW |
Air pressure | 0.4—0.75Mpa |
Filling volume | 100-1000ml |
Filling speed | 1000-12000BPH |
Filling precision | ≤±1% |
dimension | 1600x850x2200mm |
Weight | 350kg |
Construction
No. | Name | Type | Manufacturer |
1 | main transmission device | YG Type | CHINA |
2 | Filling pump | On the basis of bottle shape | |
3 | Filling head | On the basis of bottle shape | |
4 | Conveyor | SP | |
5 | Bottle pull out machine | BP | |
6 | Rotary table device | customize | |
7 | Bearing | customize | CHINA |
8 | Pneumatic components | customize | CHINA |
9 | cam mechanism | 83 type | CHINA |
10 | Main motor | Y802-4 | CHINA |
11 | Conveyor motor | 90YY60 | |
12 | Switching power supply |
| CHINA |
13 | Relay |
| |
14 | button |
| |
15 | Air switch |
| |
16 | Stainless steel | SUS304 | SOUTH KOREA |
17 | PLC | FXEN-14 | CHINA |
18 | frequency converter | 0.75KW | |
19 | Color touch screen |
| |
20 | Photoelectric sensor |
| JAPAN |

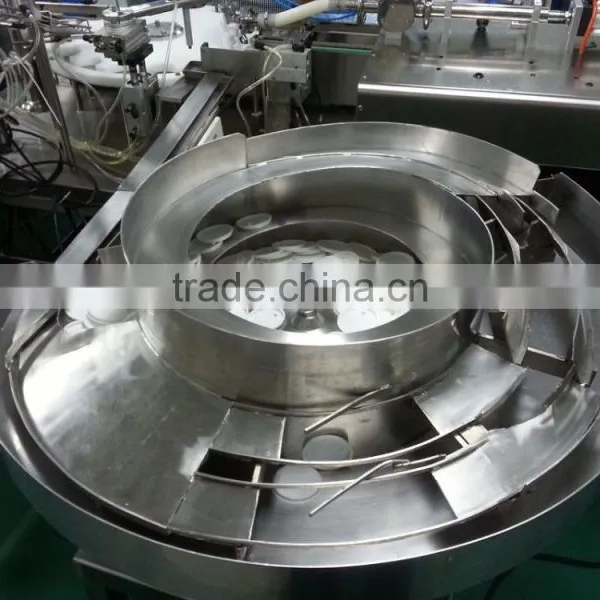

Fully automatic capping machine
This capping machine uses discpositioning method to positioning bottles, then the magnetic capping heads screwing caps of bottles.
Parameters:
1. Applicable Bottle volume: 20-1000ml
2. Applicable cap diameter: φ12~φ70mm
3. Capping precision: ≥99%
4. Power supply: 380V 50Hz
5. Power: ≤1.2Kw
6. Speed control: Frequency control of motor speed
7. Noise: ≤50dB
8. Production capacity: 1000-12000BPH
Characteristic
l High capping precision
l Adopts rotary disc positioning method, makes specifications replaced be easy and has a larger range.
l Bottles can be input & output fluently with frequency control of motor speed.
l With simple construction, the operating and maintain both become easy.
l Magnetic capping function, loosen & tighten are adjustable, would not hurt bottles and caps.
l Continuous operation to complete the automatic production, save time, improve business efficiency.
l Whole machine designed according to GMP requirement.

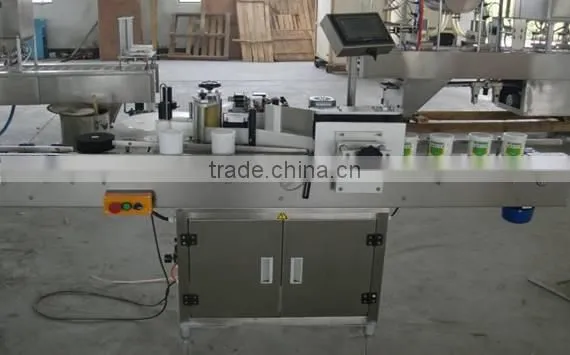

Bottle labeling machine
This machine suitable for glass, plastic bottle, can automatic finished bottle discerning, labeling and code printing. Labeling machine adopts stepping motor or servo motor with PLC control system and photoelectric control system, can realize labeling accurate and stable.
Technology parameters
1. Max Bottle diameter range: customizable
2. Labeling Speed: 20-200 bottles/min. (coding speed: 20-100 bottles/min.)
3. Label specification: label roll min. inner diameter: 76mm width 20-90mm
Max outer diameter: 300mm length: 30-180mm
4. Power supply: 220V 50Hz
5. Power: 750W
6. Dimension: 2200mm×700mm×1200mm
7. Weight: 150kg
Configuration table
Equipment | Part name | Brand | Model |
Labeling machine | Main control SCM | AMERICA | AT89C51RC |
Button display control SCM | AMERICA | PIC93C4 | |
storage | AMERICA | AT24C16 | |
Optoelectronic isolation device | JAPAN | TLPS21-X | |
sensor | JAPAN | PM2-LF10 | |
SOUTH KOREA | BF3RX | ||
motor | CHINA | 51K60RGN-CF1 | |
CHINA | YY90-60/40/15 | ||
electric appliance | AMERICA | LM7805 | |
adjustable-speed motor | CHINA | YPTS-CJ2 | |
CHINA | FS32B | ||
Stepping motor | CHINA | 85BYGH201 | |
Stepping motor actuator | CHINA | Q2H88 | |
Shell stainless steel | SOUTH KOREA | 304 | |
Base frame | CHINA |
| |
bearing | CHINA |
|

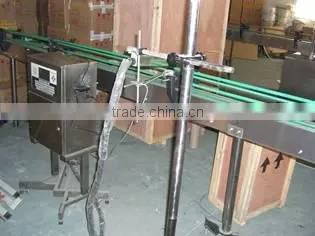

Ink-jet coding machine
A highly integrated circuit design, fully sealed ink circulation system, both of them ensure that machine can running well.
There are 7463 words in Built-in word stock, can meet a variety of edit mode by self-keyboard.
Other functions such as: can save 60 coding messages, 240*128px screen display, automatic tracking and adjusting ink pressure, automatic control ink viscosity.
Technology parameters
Coding Line number | 1-3 line |
Coding dot matrix | Std. word stock number 5*7/16*16, alphabet 5*7/16*16 |
Storage message | Can save 60 coding messages |
Coding speed | 740 letters/sec(5*7) |
Operation interface | Multi-Language system, graphic editing functions built-in |
Coding information | Date, time, item, batch No., serial No. |
Allowable material | Metal, plastic, glass, wood |
Coding distance | Max. 30mm |
communication interface | Rs232 |
Ink consumption | 60 Millions letters/L (5*7) |
Temperature | 5-45℃ |
humidity | Below 90% |
weight | 25KG |
dimension | 360*280*450mm |
Power supply | AC220V 50Hz 100VA |
Goods boxed platform
Main parts: stainless steel, guardrail, motor
Goods delivered to this platform for final boxing.
Size: length 2000mm
Width 1000mm
Conveyer
Main parts: plastic chain belt, yoke, guard bar, fixed mount, transmission shaft.
