Help CenterHC43-2500 ISO9001:2000 Hydraulic Steel Shear
Related Products
-
HC43-630 Hydraulic Scrap ShearsNegotiableMOQ: 1 Set -
HC43-3150 Safe Waste Metal Scrap CutterUS$ 5,000 - 5,000MOQ: 1 Set
-
HC43-630 Manual Valve Hydraulic Crocodile ShearUS$ 2,000 - 2,800MOQ: 1 Set
-
HC43-630 Safe and Reliable Manual Valve Alligator Metal ShearsNegotiableMOQ: 1 Set
-
HC43-1000 New Adopted ISO Manual Shear Cutting MachineUS$ 5,000 - 10,000MOQ: 1 Set
Specifications
1.Shear force 9 grades from 63 to 500 ton2.Cut waste metal
3.Blade 8 grades from 400mm to 1800mm
4.Safe & reliable

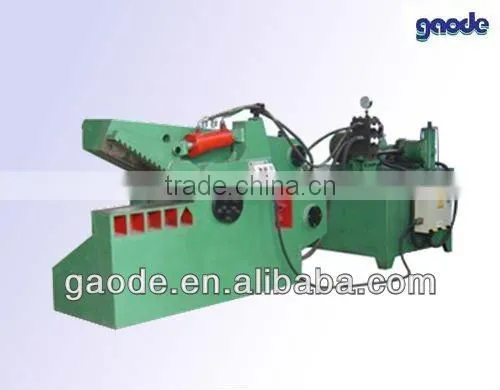

HC43 series of hydraulic metal shears are applied in recycling companies , automobile
dismantling plants, smelting & casting industry to cold-shear section steel and
metallic structural parts into acceptable furnace charges.
Features:
1,Adopting hydraulic drive,HC43 series feature simple operation & easy maintenance .It's
safe and realizable .
2,Shear force 9 grades from 63 to 500 tons; blade length 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm;
3, No footing bolts needed in installation; diesel engine can be equipped for power.
Type |
Max Shear Force (TON) |
Max Holding Force (TON) |
Blde Length(MM) |
Max Blade Opening (MM) |
Shear Frequency (time/min) |
Material Size(MM) |
Power(KW) |
Operation |
HC43-630 |
63 |
16 |
600 |
280 |
9-16 |
30X30 Ø35 |
7.5 |
Manual Freeding, manual or automatic operation |
HC43-1000 |
100 |
16 |
600 |
280 |
9-16 |
40X40 Ø45 |
11 |
|
HC43-1200 |
120 |
20 |
600 |
280 |
9-16 |
45X45 Ø50 |
15 |
|
HC43-1600 |
160 |
25 |
700 |
320 |
9-16 |
55X55 Ø 63 |
18.5 |
|
HC43-2000 |
200 |
25 |
800 |
380 |
9-16 |
65X65 Ø 75 |
22 |
|
HC43-2500 |
250 |
26 |
1000 |
480 |
9-16 |
70X70 Ø 80 |
30 |
|
HC43-3150 |
315 |
42 |
1200 |
520 |
8-16 |
80X80 Ø 90 |
37 |
|
HC43-4000 |
400 |
42 |
1500 |
700 |
8-16 |
90X90 Ø 00 |
44 |
|
HC43-5000 |
500 |
42 |
1800 |
900 |
8-16 |
100X100 Ø110 |
44 |
