Specifications
Scrap Shears1.Safe & reliable
2.No footing bolts needed
3.Diesel engine can be equipped for power

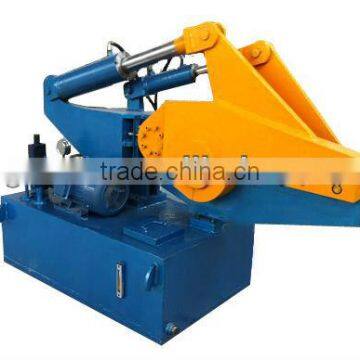

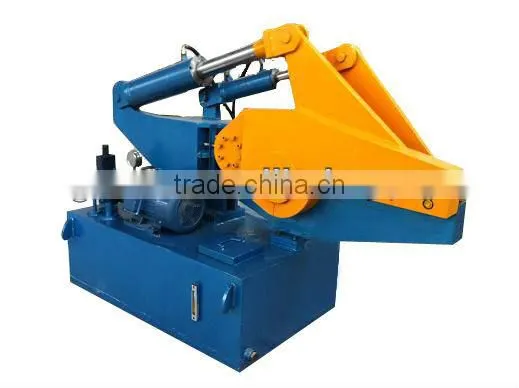

Hydraulic Scrap Shears
Applications:
Hydraulic Scrap Shears are applicable in recycling companies, automobile dismantling plants, smelting &casting industry to
Cold-shear section steel and metallic structural parts into acceptable furnace charges.
Features
Adopting hydraulic drive, HC43 series feature simple operation & easy maintenance, it's safe &reliable.
Shear force 9 grades from 63 to 500 tons: Blade length 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm.
No footing bolts needed in installation: Diesel engine can be equipped for power.
HC43-630 Hydraulic Metal Shear -- Technical Specifications
NO |
TECHNICAL SPECIFICATIONS |
NO |
TECHNICAL SPECIFICATIONS |
||||
1 |
Largest Cutting Force |
800KN |
2 |
Cutting Cylinder Stroke |
210mm |
||
3 |
Largest Holding Force |
120KN |
4 |
Holding Cylinder Stroke |
60mm |
||
5 |
Table Length |
735mm |
6 |
Shearing Frequency |
8~12 times/min |
||
7 |
Blade Length |
600mm |
|||||
8 |
Largest Blade Opening |
280mm |
|||||
9 |
Hydraulic System Pressure |
21MPa |
|||||
10 |
Motor |
Model |
Y132M-4 |
Quantity |
1 set |
||
Nominal Speed |
1440rpm |
Nominal Power |
7.5KW |
||||
11 |
Pump |
Model |
25YCY14-1B |
Quantity |
1 set |
||
Nominal Outflow |
25ml/r |
Nominal Pressure |
31.5MPa |
||||
