Specifications
Features:1. Pre-compress and cut scrap
2.Cut bars and profiles
3. Package light scrap
4. Squeeze and cut car bodies.

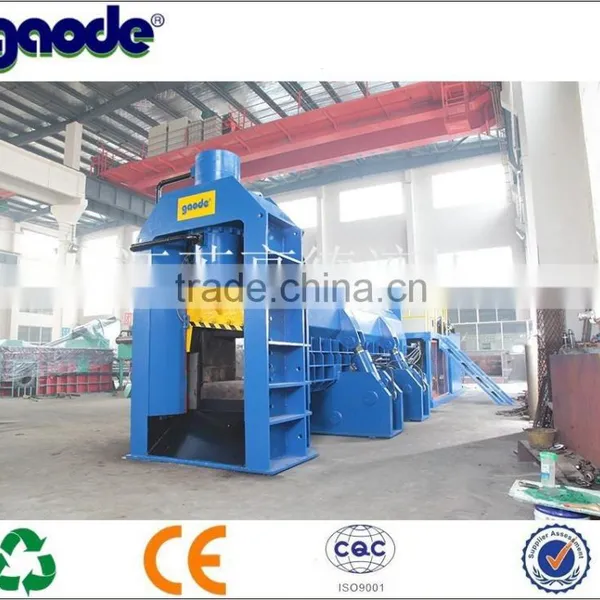

Heavy Duty Automatic Scrap Metal Baler Shear Machine
Application Of Heavy Duty Automatic Scrap Metal Baler Shear Machine:
1. Pre-compress and cut scrap
2.Cut bars and profiles
3. Package light scrap
4. Squeeze and cut car bodies.
Detailed Specifications Of Heavy Duty Automatic Scrap Metal Baler Shear Machine:
1 | Press Box Size(L*W*H)
| 5000*1600*900mm |
| |||
2 | Bale Size(L*W*H)
| 700*500mm |
| |||
3 | Hydraulic System Pressure | 25 MPa |
| |||
4 | Total Motor | 110KW |
| |||
5 | Power | 380V/3PH,50Hz |
| |||
6 | Blade Length | 800mm |
| |||
7 | Shearing Frequency (times/min) | 3-5 time/min |
| |||
8 | Capacity(Ton/Hour) | 4-12 |
| |||
9 | Max Cutting Force (material Tensile Strength no more than 440MPa) | Round TeelΦ120mm |
| |||
Billet 110*110mm | ||||||
Steel Plate 50*600mm | ||||||
10 | Motor | Model | Y200L2-6 | Nominal Power | 55KW |
|
Nominal Speed | 970rmp | Quantity | 2 pieces |
| ||
11 | Hydraulic Pump | Model | 250YCY14-1B | Nominal Pressure | 31.5MPa |
|
Nominal Outflow | 250ml/r | Quantity | 2 Pieces |
| ||
12 | Equipment Outline Dimension
| 11300*2800*3500(Flank Expansion) | L*W*H | |||
11300*2200*3500mm(Flank Collapsed) | L*W*H | |||||
13 | Floor Space | 14000*4000mm | L*W | |||
14 | Control System | PLC Automatic Control |
| |||
15 | Cooling System | Oil - steam heat exchanger
| ||||
Certification Of Heavy Duty Automatic Scrap Metal Baler Shear Machine:
Welcome to our factory
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
