Specifications
Features:1. Pre-compress and cut scrap
2.Cut bars and profiles
3. Package light scrap
4. Squeeze and cut car bodies.

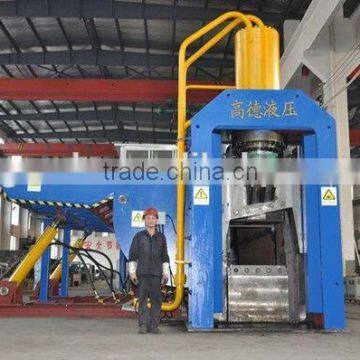

HBS-5000 HBS Automatic Scrap Metal Baler Shear Machine
Application Of HBS Automatic Scrap Metal Baler Shear Machine:
1. Pre-compress and cut scrap
2.Cut bars and profiles
3. Package light scrap
4. Squeeze and cut car bodies.
Detailed Specifications Of Automatic Scrap Metal Baler Shear Machine:
1 |
Press Box Size(L*W*H)
|
5000*1600*900mm |
|
|||
2 |
Bale Size(L*W*H)
|
700*500mm |
|
|||
3 |
Hydraulic System Pressure |
25 MPa |
|
|||
4 |
Total Motor |
110KW |
|
|||
5 |
Power |
380V/3PH,50Hz |
|
|||
6 |
Blade Length |
800mm |
|
|||
7 |
Shearing Frequency (times/min) |
3-5 time/min |
|
|||
8 |
Capacity(Ton/Hour) |
4-12 |
|
|||
9 |
Max Cutting Force (material Tensile Strength no more than 440MPa) |
Round TeelΦ120mm |
|
|||
Billet 110*110mm | ||||||
Steel Plate 50*600mm | ||||||
10 |
Motor |
Model |
Y200L2-6 |
Nominal Power |
55KW |
|
Nominal Speed |
970rmp |
Quantity |
2 pieces |
|
||
11 |
Hydraulic Pump |
Model |
250YCY14-1B |
Nominal Pressure |
31.5MPa |
|
Nominal Outflow |
250ml/r |
Quantity |
2 Pieces |
|
||
12 |
Equipment Outline Dimension
|
11300*2800*3500(Flank Expansion) |
L*W*H |
|||
11300*2200*3500mm(Flank Collapsed) |
L*W*H |
|||||
13 |
Floor Space |
14000*4000mm |
L*W |
|||
14 |
Control System |
PLC Automatic Control |
|
|||
15 |
Cooling System |
Oil - steam heat exchanger
|
||||
Certification Of HBS Automatic Scrap Metal Baler Shear Machine:
Welcome to our factory
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
