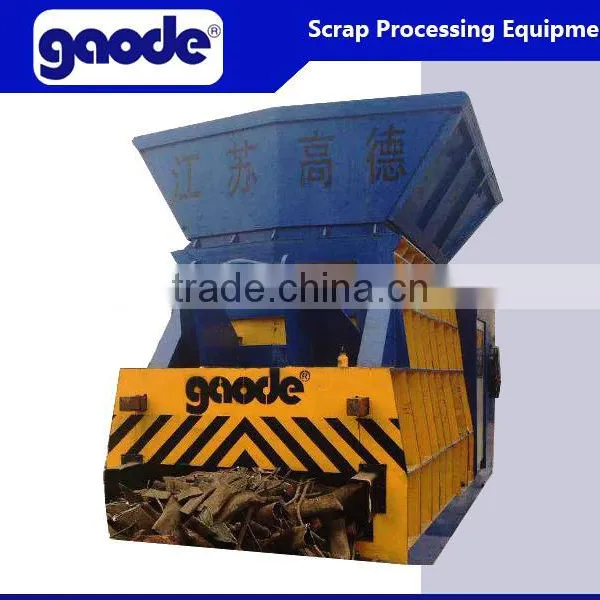

New Box Type Scrap Metal Hydraulic Cutting Machine
Applications Of New Box Type Scrap Metal Hydraulic Cutting Machine:
Applicable in recycling companies, automobile dismantling plants, smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges.
Features Of New Box Type Scrap Metal Hydraulic Cutting Machine:
Adopting hydraulic drive, simple operation & easy maintenance, it's safe &reliable.
No footing bolts needed in installation: Diesel engine can be equipped for power.
Specification
CS4000 Scrap Shear ( container style) | |||||
No. | Technical Parameter | ||||
1 | press box size | 2500X1600 MM | |||
2 | blade length | 1600 MM | |||
3 | cycle time | 2-3 times/min | |||
4 | capacity | 2.5-4.5 t/h | |||
5 | cooler | wind cooler | |||
6 | pressure system | 25.0 Mpa | |||
7 | motor | model | Y225-S-4 | power | 37 KW |
nominal speed | 1460rpm | quantity | 2 sets | ||
8 | pump | model | 250YCY14-1B | outflow | 250ml/r |
nominal pressure | 31.5MPa | quantity | 2 sets | ||
9 | power supply | 380V/50HZ | |||
10 | total power | 74 KW | |||
11 | weight | 20 T | |||
GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Our GAODE brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Fenny
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
China factory
ADD: No. 691 Chengshan Road, Jiangyin City,Jiangsu Province.
Tel: +86 510 86996082/
18921250082(7*24 hours online service)
Fax: +86 510 86993993
Most popular products
| | |
| Metal chip briquetting presses | HBS scrap baler&shear | HPM horizontal baler machine |
| | |
| Aluminum can baler machine | PSX scrap steel shredder line | waste cotton baling machine |
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
