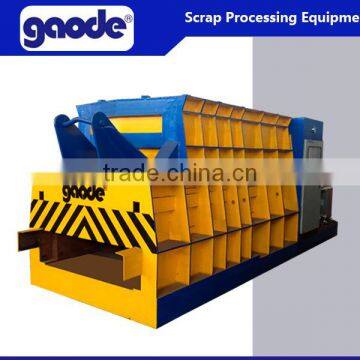

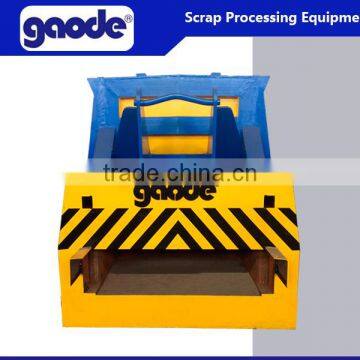

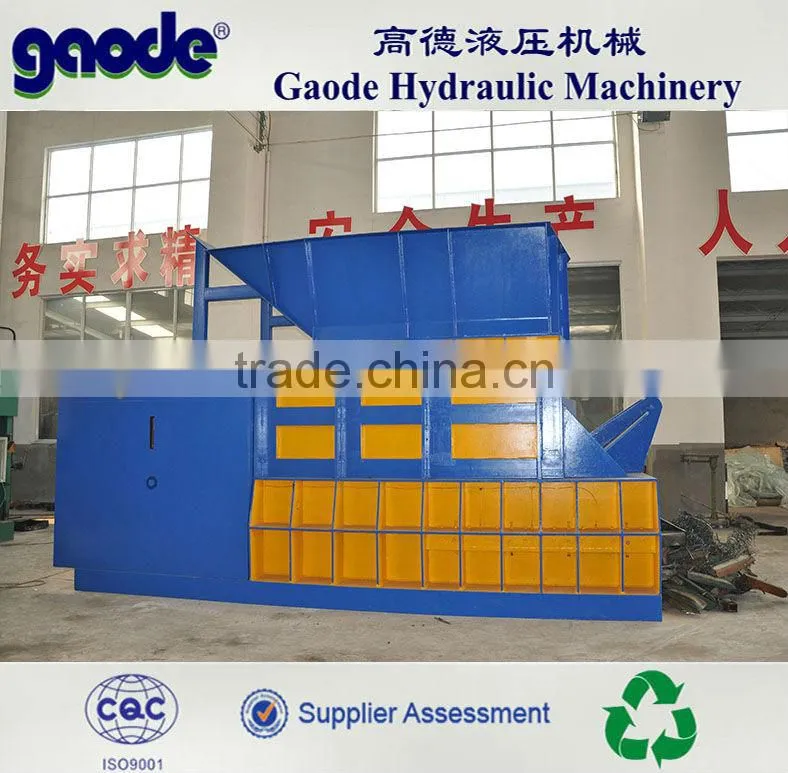

CS400 used scrap shears
Information of scrap shear
Scrap Shear is used for economical scrap processing, easy operation and flexible transportation with a roll on/ roll off system. It can cut any kinds of scrap material. Different models for your choice.
Details of scrap shear
CS4000 Scrap Shear ( container style) | ||||||
No. |
Technical Parameter |
REMARKS |
||||
1 |
press box size |
2500X1600 MM |
||||
2 |
blade length |
1600 MM |
||||
3 |
cycle time |
2-3 times/min |
||||
4 |
capacity |
2.5-4.5 t/h |
||||
5 |
cooler |
wind cooler |
||||
6 |
pressure system |
25.0 Mpa |
||||
7 |
motor |
model |
Y225-S-4 |
power |
37 KW |
|
nominal speed |
1460rpm |
quantity |
2 sets |
|||
8 |
pump |
model |
250YCY14-1B |
outflow |
250ml/r |
|
nominal pressure |
31.5MPa |
quantity |
2 sets |
|||
9 |
power supply |
380V/50HZ |
||||
10 |
total power |
74 KW |
||||
11 |
weight |
20 T |
||||
Exhibitions of scrap shear
workflow of scrap shear

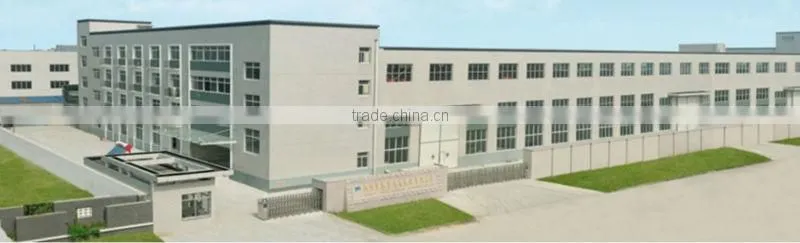

company of scrap shear
Certificate of scrap shear
Contact information:
--- Ms. Tracy Jiang (Sales Representative)
Skype: bellabest4
Mobile: +86 15896491581 (24/7)
Fax: +86 510 86993993
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
ADD: No. 691 Chengshan Road, Jiangyin City, Jiangsu. China
Send Inquiry to This Supplier
