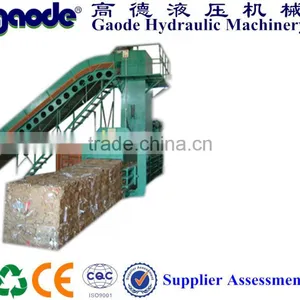

Automatic Hydraulic Driven Type used clothes baler

Specifications

1.Packaging material: scrap paper & plastic scraps & straw
2.Horizontal structure
3.PLC control
4.Push-button operation

Name: HPA1250  used clothes baler







Applications:

HPA series of horizontal balers with manual belting, applicable in baling & belting of loose materials like scrap paper (cardboard, newspaper), plastic scraps(PET bottle, plastic film or crates) & straw, etc.

Features

1)PLC control, combined with touch screen & visible windows, real-time diagram of movements & alarm. Length of bale can be set on touth screen.

2)Design of floating neck movable on 3 directions(left, right & up), good for distribution of pressure on 4 sides, suitable for baling of different materials.

3)Automatic belting to increase speed of baling

4)Spherical connection between pushing cylinder & ram to ensure reliability & life of seals in cylinder.

5)Dispersed cutting blades used on feeding opening to ensure efficiency.

6)Design of low-noise hydraulic circuit with high efficiency & low trouble rate.

7)Easy installation without foundation.





Model	Force(TON)	Pressure (KG/CM2)	Feeding Opening (L X W)MM	Power (KW)	Bale Spec. (MM)	RMKS
HPA500	50	9.6	900X720	22	720X720
HPA630A	63	12.1	900X720	30	720X720
HPA630B	63	7.9	1450X720	30	720X1100
HPA800A	80	10.1	1450X720	45	720X1100
HPA800B	80	6.6	1450X1100	45	1100X1100
HPA1000A	100	8.2	2000X1100	60	1100X1100
HPA1250A	125	10.3	2200X1100	74	1100X1100
HPA1000B	100	7.2	2000X1100	60	1250X1100
HPA1250B	125	10	2200X1100	90	1250X1100
RMKS: Bale length is adjustable, non standard design & customization of products possible. Optional equipment includes iron chain conveyor, PVC belt conveyor, or pneumatic conveyor(air duct)
