Specifications
1.Packaging material: scrap paper & plastic scraps & straw2.Horizontal structure
3.PLC control
4.Push-button operation

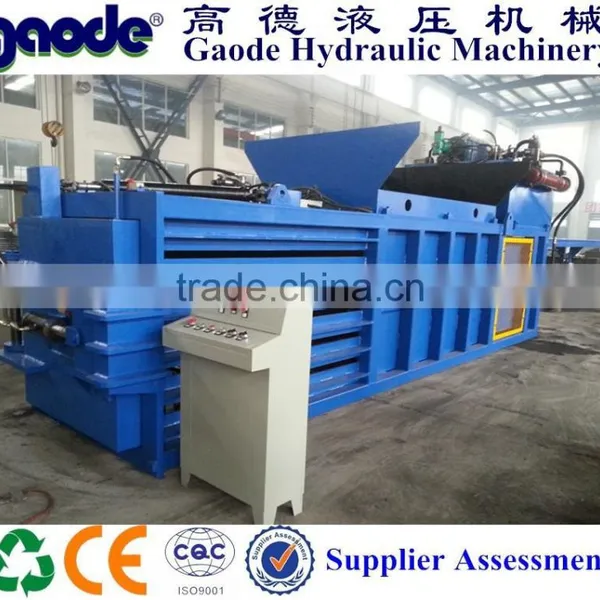

waste paper press machine Machine
Applications:
HPA series of horizontal balers with manual belting, applicable in baling & belting of loose materials like scrap paper (cardboard, newspaper), plastic scraps(PET bottle, plastic film or crates) & straw, etc.
Features
1)PLC control, combined with touch screen & visible windows, real-time diagram of movements & alarm. Length of bale can be set on touth screen.
2)Design of floating neck movable on 3 directions(left, right & up), good for distribution of pressure on 4 sides, suitable for baling of different materials.
3)Automatic belting to increase speed of baling
4)Spherical connection between pushing cylinder & ram to ensure reliability & life of seals in cylinder.
5)Dispersed cutting blades used on feeding opening to ensure efficiency.
6)Design of low-noise hydraulic circuit with high efficiency & low trouble rate.
7)Easy installation without foundation.
Model | Force(TON) | Pressure (KG/CM2) | Feeding Opening (L X W)MM | Power (KW) | Bale Spec. (MM) | RMKS |
HPA500 | 50 | 9.6 | 900X720 | 22 | 720X720 | |
HPA630A | 63 | 12.1 | 900X720 | 30 | 720X720 | |
HPA630B | 63 | 7.9 | 1450X720 | 30 | 720X1100 | |
HPA800A | 80 | 10.1 | 1450X720 | 45 | 720X1100 | |
HPA800B | 80 | 6.6 | 1450X1100 | 45 | 1100X1100 | |
HPA1000A | 100 | 8.2 | 2000X1100 | 60 | 1100X1100 | |
HPA1250A | 125 | 10.3 | 2200X1100 | 74 | 1100X1100 | |
HPA1000B | 100 | 7.2 | 2000X1100 | 60 | 1250X1100 | |
HPA1250B | 125 | 10 | 2200X1100 | 90 | 1250X1100 | |
RMKS: Bale length is adjustable, non standard design & customization of products possible. Optional equipment includes iron chain conveyor, PVC belt conveyor, or pneumatic conveyor(air duct) | ||||||
