Specifications
1.Packaging material: scrap paper & plastic scraps & straw2.Horizontal structure
3.PLC control
4.Push-button operation

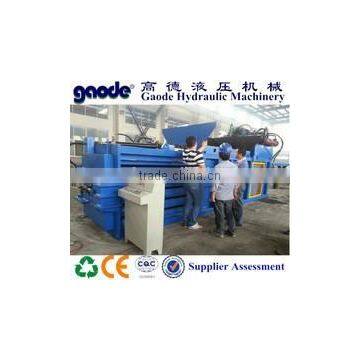

HPM-1000 Hydraulic Compress Horizontal Scrap Paper Baler
HPM series of horzontal balers with manual belting,applicable for
baling & belting of loose materials like scrap paper (cardboard,newspaper),plastic
scraps(PET bottle,plastic film or crates) & straw,etc.
Features:
1) Horizontal structure; Feeding can be manual or automatic with conveyor.
2) PLC control, push-button operation, safe & reliable.
3) Manual belting.
HPM-1000TECHNICAL SPECIFICATION
No. | Technical Specifications | REMARKS | ||||||
1 | Baling chamber dimensions(L*W*H) | 4100×850×1000 mm |
| |||||
2 | Feed opening size(L*W) | 2300×1100 mm |
| |||||
3 | Bale dimension(L*W*H) | (~1600)×850×1000 mm |
| |||||
4 | Compacted density | ≥400 kg/m3 |
| |||||
5 | Hydraulic System Pressure | 21.5Mpa |
| |||||
6 | Weight per bale | About 600 KG |
| |||||
7 | Power Standard | 380V/3PH,50Hz or as customer’s requirement |
| |||||
8 | Total Power | 29.5 KW |
| |||||
9 | Main Motor | Model | Y200L2-6 | Quantity | 1 set |
| ||
Nominal Speed | 980 rpm | Power | 22 kw/380V | |||||
10 | Hydraulic Pump | Model | 160YCY14-1B | Quantity | 1set |
| ||
Nominal Outflow | 160 ml/r | Nominal Force | 31.5MPa | |||||
12 | Motor | Model | Y132S-4 /Y802-4 | Quantity | 1set |
| ||
Nominal Speed | 1440rpm/1390rpm | Power | 5.5KW/5.5HP | |||||
13 | Capacity | 4000-5000 kg/h |
| |||||
14 | Conveyer Belt Specifications | width | 1600 mm |
| ||||
length | 12000 mm | |||||||
speed | 36m/min | |||||||
15 | Operation Method | Push-button |
| |||||
16 | Belting Method | Manual belting with 5 ferrous wire |
| |||||
