Home > Products > Metal Shear > recycling 200tons alligator metal shear machine
recycling 200tons alligator metal shear machine
- 1500 Set / Sets per Month
- Shanghai
- T/T
- 1600 ton Heavy Duty Hydraulic Used Car Body Cutting Gantry Shear Machine OEM Accecpted
- 1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Gaode |
Model Number: | HC43 Series | Voltage: | 380V/50Hz or user define | Rated Power: | 22KW |
Dimension(L*W*H): | 2600*1200*1500mm;1770*1350*1340mm | Weight: | about 7 tons | Certification: | ISO9001:2008;CE;SGS;TUV |
Warranty: | 180 days | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

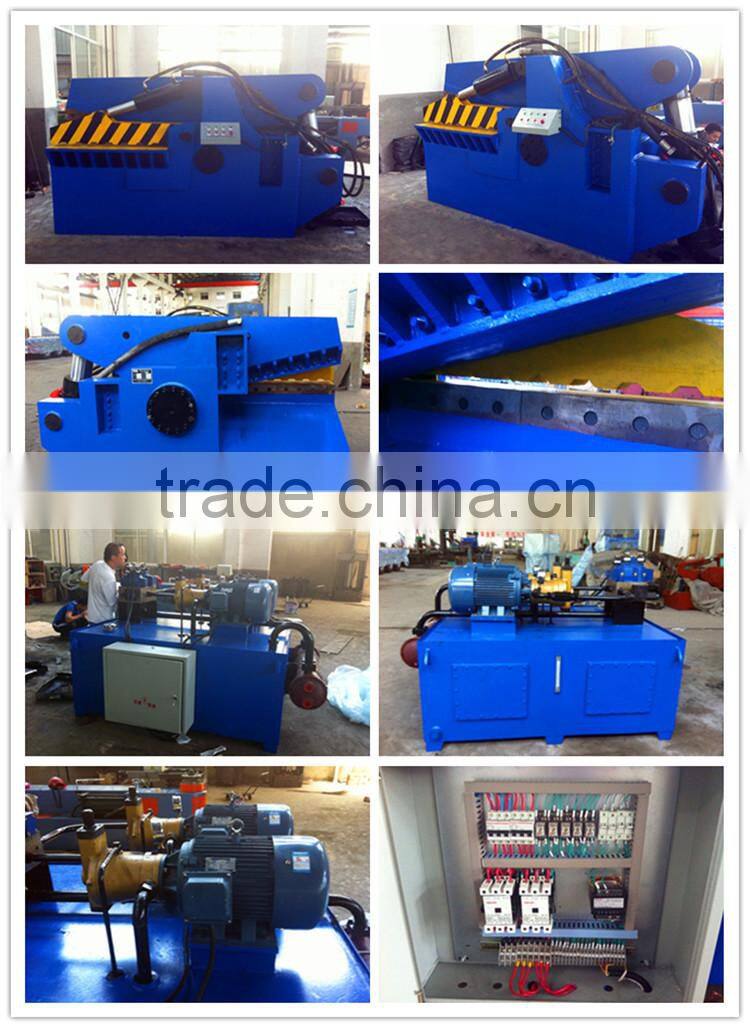

recycling 200tons alligator metal shear machine |
NO | TECHNICAL SPECIFICATIONS | NO | TECHNICAL SPECIFICATIONS | ||||
1 | Largest Cutting Force | 2000KN | 2 | Cutting Cylinder Stroke | 210mm | ||
3 | Largest Holding Force | 80KN | 4 | Holding Cylinder Stroke | 60mm | ||
5 | Table Length | 735mm | 6 | Shearing Frequency | 8~12 times/min | ||
7 | Blade Length | 600mm | |||||
8 | Largest Blade Opening | 285mm | |||||
9 | Hydraulic System Pressure | 21MPa | |||||
10 | Motor | Model | Y200L2-6 | Quantity | 1 set | ||
Nominal Speed | 970rpm | Nominal Power | 22KW | ||||
11 | Pump | Model | 160YCY14-1B | Quantity | 1 set | ||
Nominal Outflow | 160ml/r | Nominal Pressure | 31.5MPa |
Applications:
Applicable in recycling companies, automobile dismantling plants, smelting &casting industry to
Cold-shear section steel and metallic structural parts into acceptable furnace charges.
Features
Adopting hydraulic drive, HC43 series feature simple operation & easy maintenance, it's safe &reliable.
Shear force 9 grades from 63 to 500 tons: Blade length 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm.
No footing bolts needed in installation: Diesel engine can be equipped for power.
Gaode has fully testing equipment to ensure productivity and quality
Gaode has achieved CE,ISO,SGS approval.
Gaode product will be tested in the factory line before packed.
Gaode product is strongerly fixed by steel wires when loading.
China famous trade mark
Thirteen years focused on Recycling Equipment.
Gaode equipment have export to more than 10 countries in Europe, the Middle East, Southeast Asia,Africa, South America and areas etc.
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
Contact information:
Tracy
Skype: bellabest4
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
China factory
ADD: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Tel: +86 15896491581(24 hours service) | Fax: +86 510 8699399
The finished products:
