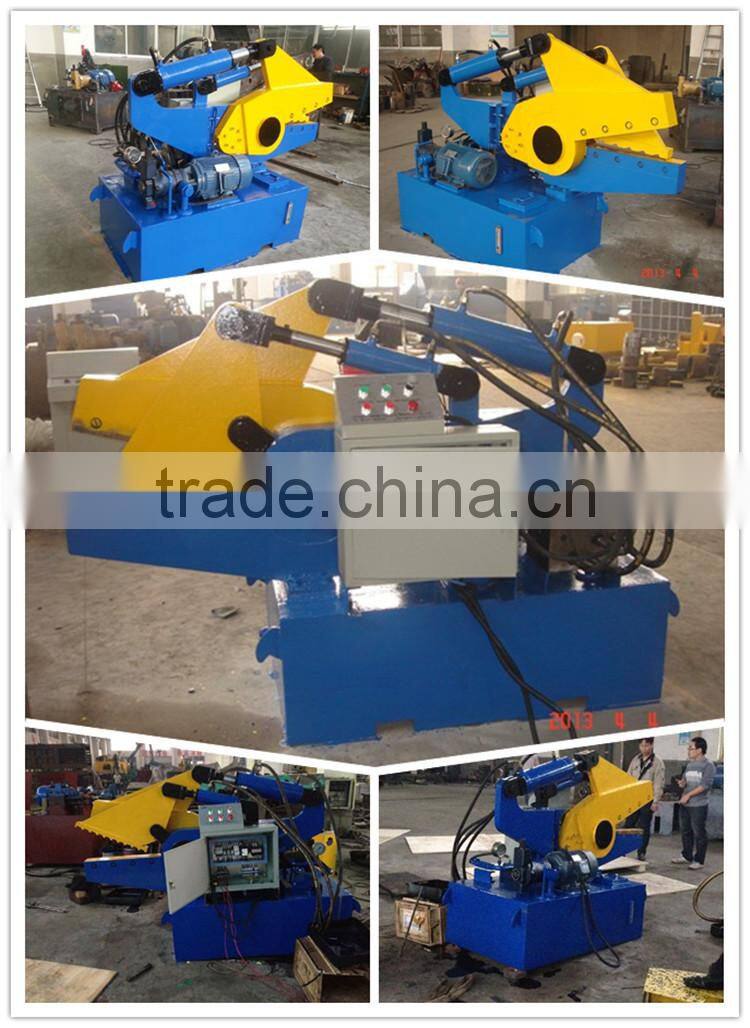

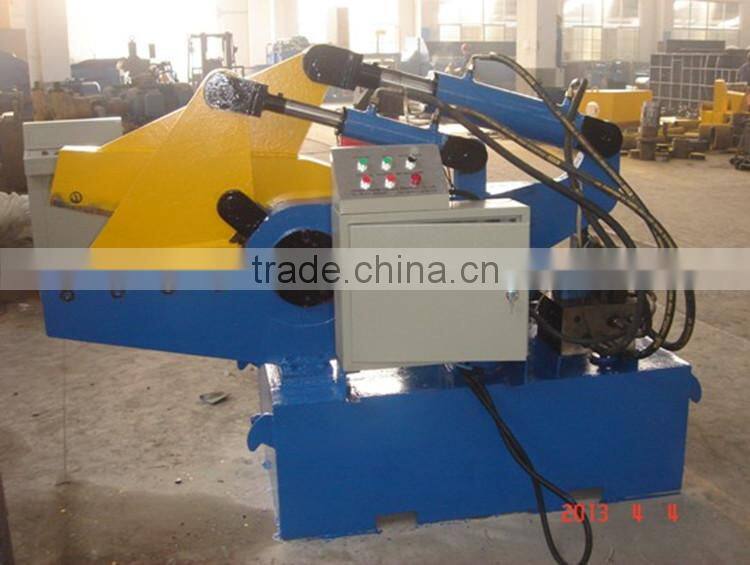

63tons hydraulic scrap metal shear for sale
No. | Specifications | ||
1 | Maximum Shear Capability | KN | 630 |
2 | Maximum Pressure Capability | KN | 120 |
3 | Maximum Cutting Blade Opening | MM | 300 |
4
| Length of Cutting Blade | MM | 600 |
5 | Shearing times of per minutes | times/min | 9-16 |
6 | System Work Pressure | Mpa | 21.5Mpa |
7 | Motor | Model | Y132M-4 |
Power | 7.5KW | ||
8 | Oil pump | Model | 40YCY14-1B |
displacement | 40ml/r | ||
9 | Size of Sheared material (mm) | Round Steel | Ø 30 |
Square Steel | 25*25 | ||
Steel Angle | 40*40*4 (three pcs) | ||
Steel Channel | 100*43*5.5 | ||
Plate | 14*100 |
Applications:
HC43 serises of hydraulic metal shears are applied in recycling companies,automobile
dismantling plants,smelting&casting industry to cold-shear section steel and
metallic structural parts into acceptable furnace sharges.
Features:
1,Adopting hydraulic drive,HC43 series feature simple operation&easy maintenance.It's
safe and realizable .
2,Shear force 9 grades from 63 to 500 tons;blade length 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm;
3, No footing bolts needed in installation;diesel engine can be equipped for power.
Types of HC43 metal shear
Type | Max Shear Force (TON) | Max Holding Force ( TON) | Blde | Max Blade Opening | Shear Frequency | Material Size (MM) | Power (KW) | Operation |
HC43-630 | 63 | 16 | 600 | 280 | 9-16 | 30X30 Ø 35 | 7.5 | Manual Freeding, manual or automatic operation |
HC43-1000 | 100 | 16 | 600 | 280 | 9-16 | 40X40 Ø 45 | 11 | |
HC43-1200 | 120 | 20 | 600 | 280 | 9-16 | 45X45 Ø 50 | 15 | |
HC43-1600 | 160 | 25 | 700 | 320 | 9-16 | 55X55 Ø 63 | 18.5 | |
HC43-2000 | 200 | 25 | 800 | 380 | 9-16 | 65X65 Ø 75 | 22 | |
HC43-2500 | 250 | 26 | 1000 | 480 | 9-16 | 70X70 Ø 80 | 30 | |
HC43-3150 | 315 | 42 | 1200 | 520 | 8-16 | 80X80 Ø 90 | 37 | |
HC43-4000 | 400 | 42 | 1500 | 700 | 8-16 | 90X90 Ø 00 | 44 | |
HC43-5000 | 500 | 42 | 1800 | 900 | 8-16 | 100X100 Ø 110 | 44 |
Production Process
GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.
Our GAODE brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Company Show
The Finished Products
Fair Show
Certification
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
