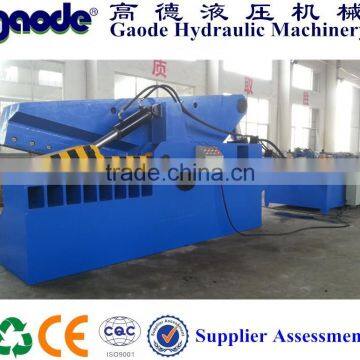

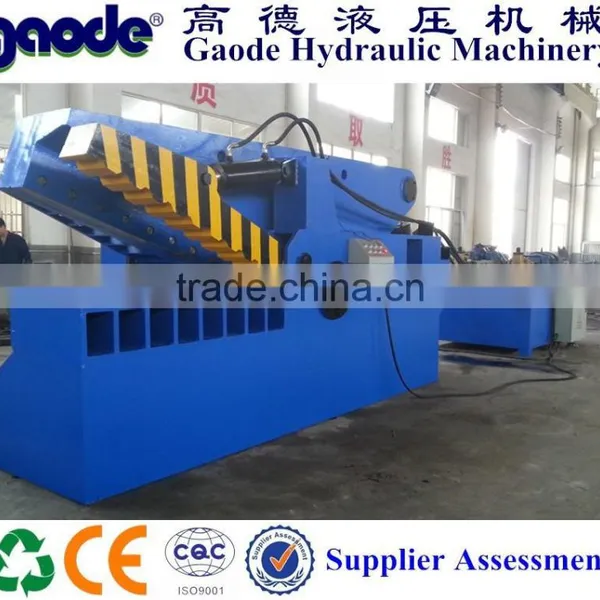

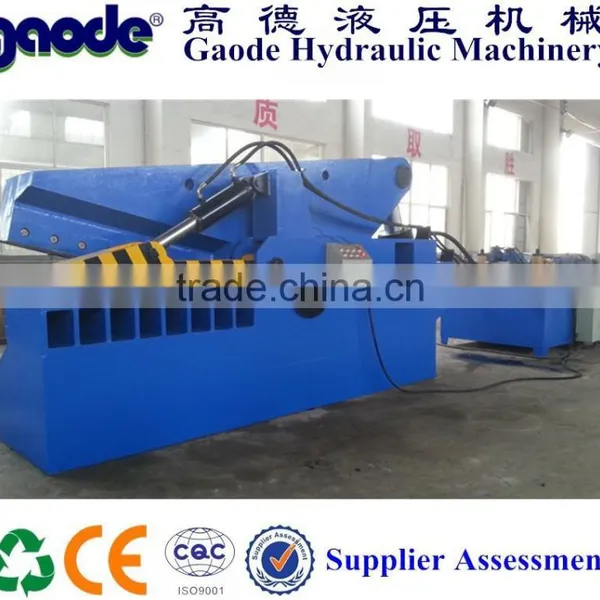

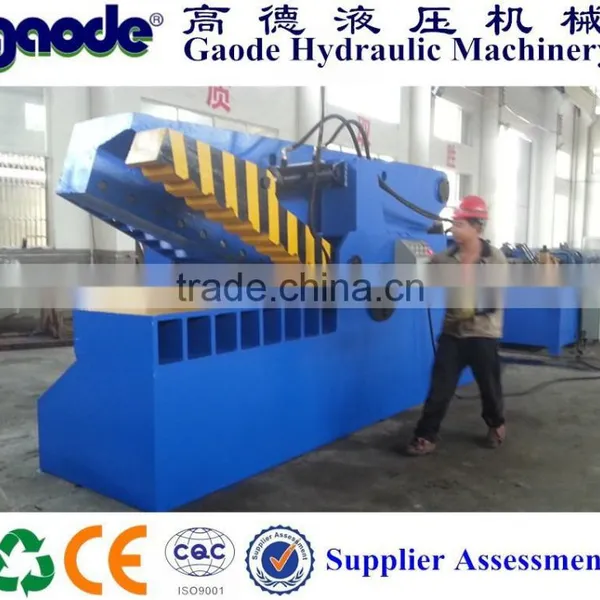

| Automatic Portable Hydraulic Alligator Shear |
No. | TECHNICAL SPECIFICATIONS | |||||
1 | Max Shear Force | 5000KN | ||||
2 | Max Holding Force | 420KN | ||||
3 | Shearing Frequency | 8~12 times/min | ||||
4 | Height of Working Table | 1000 mm | ||||
5 | Blade Length | 1600 mm | ||||
6 | Max Blade Opening | 700 mm | ||||
7 | Hydraulic System Pressure | 25MPa | ||||
8 | Control System | Hydra-electrical Valves; Push Button to Control | ||||
10 | Motor | Model | Y225M-6 | Quantity | 2 sets | |
Nominal Speed | 970rpm | Nominal Power | 30KW | |||
11 | Hydraulic Pump | Model | 160YCY14-1B | Quantity | 2 sets | |
Nominal Outflow | 160ml/r | Nominal Pressure | 31.5MPa | |||
Applications:
Applicable in recycling companies, automobile dismantling plants, smelting &casting industry to
Cold-shear section steel and metallic structural parts into acceptable furnace charges.
Features
Adopting hydraulic drive, HC43 series feature simple operation & easy maintenance, it's safe &reliable.
Shear force 9 grades from 63 to 500 tons: Blade length 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm.
No footing bolts needed in installation: Diesel engine can be equipped for power.
Gaode has fully testing equipment to ensure productivity and quality
Gaode has achieved CE,ISO,SGS approval.
Gaode product will be tested in the factory line before packed.
Gaode product is strongerly fixed by steel wires when loading.
China famous trade mark
Thirteen years focused on Recycling Equipment.
Gaode equipment have export to more than 10 countries in Europe, the Middle East, Southeast Asia,Africa, South America and areas etc.
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
Contact information:
Tracy
Skype: bellabest4
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
China factory
ADD: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Tel: +86 15896491581(24 hours service) | Fax: +86 510 8699399
The finished products:
