PET Bottle Uesd Plastic Washing Recycling Line Of Hebei Province
- 500 Set / Sets per Month
- Tianjin
- T/T Credit Card PayPal
- Plastic Industrial Hopper Dryer Plastic Drying Machines with autoloder
- Good Price Industrial Plastic Granules Drying Machine Supplier
- Good Price Industrial Plastic Material Dehumidifying Dryer Supplier
- Good price 3 in 1 Industrial dehumidifier dryer for plastic
- Industrial Hot Air Plastic Granules Dryer Hopper Drying Machine Price
- Industrial mold dehumidifier mold dryer machine price
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | Fangtai |
Model Number: | Type 80 | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Plastic Drying Machine
About products

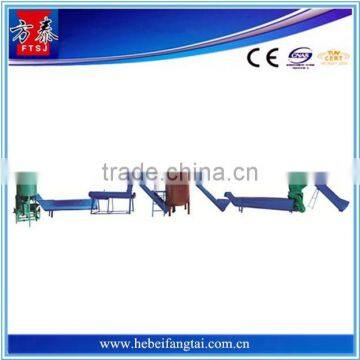

This line washes and cleans the recycled PET bottles, such as the mineral water bottles, pesi bottles, oil bottles, etc. The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to module the bottles again. We had exported this line to Russia, Ukraine, Romania, Egypt, Malaysia, Vietnam, Uzbekistan, etc.
Brief introduction of the individual equipment:
1. Bale opener (Optional)
Open the baled PET bottles into individual bottles, controlled by inverter.
2. Belt conveyor
Transporter with frequency control, to adjust speed to requirements of line.
3. label and caps reomoving machine
Three functions:
Firstly, peeling the 98% labels and 60% -70% caps of the bottles without water.
Secondly, clean the bottles convenient for manual sorting.
Thirdly, it will be more efficient to increase capacity of the crusher.
4. Manual sorting platfrom
The belt length is 6m, workers sorting the different color bottles and non-PET materials manually. It is equipped with the strong magnetic.
5. Crusher
This crusher is designed foe wet crusheing It used to crush the bottles into pet flakes equipped with float and fixed blades.
6. Washing tank with double screw shafts
To separate the pet flakes from the impurities as well as clean the pet flakes.
7. Screw conveyor +hot washer+screw conveyor
Step1,Transport flakes to the hot washer.
Step2,Use hot washer,remove the labels ,dirt and other inmurities by chemicals.
Step3,Send the washed pet flakes to the friction machine.
8. Friction washing machine
The flakes are efficiently cleaned insight inclining drum with high speed. Flakes are rubbing against each other as well as against the rotating auger. The auger moves the flakes forward and clean rest remain of dirt.
9. Washing tank with double screw shafts
Flotation/sink tank separates the material according their density. PET sinks to the bottom, PE and PP float on the top and are moved by rotating shovels to side of washing tank. A small screw conveyor takes them out.
10. Centrifugal dryer
Drying the cleaned pet flakes.After drying ,the water content less than 3%.
About us
Thank you very much for your attention on our machines.Our company is engaged in Recycling
machine for many years and got CE certification gloriously.We are original manufacturer.So our
company should have mighty right to offer you handsome price In addition.We are engaged in
machines such as PP PE HDPE film and other plastic material waste recycling machine lines and
PET bottles crushing washing recycling lines,extrusion,packer, baler machine,agglomerating lines,
mixer,crusher,centrifugal dryer,dewatering machine,etc.
And here is plastic recycling machine for PP PE PS and others,plastic recycling machine,plastic
recycling machinery.
Please don't hesitate to contact with me if you are still looking for what you want.You will be finding
your choice is just awesome good as per our machines are of high quality.You will confirm by your
own sight.By the way,Please send the model that you are taking interesting.
Please note: we can design and manufacture machine according to our clients specially requirement.
More informations please don't hesitate to give me email for detailed technical data.
For more information, don't hesitate to contact me when you are free.
