Product Introduction
Streamlined design,elegant appearance,Direct injection engine,dynamic reserves,high efficiency and energy saving
The entire vehicle hydraulic transmission,automatic regulation of output torque,and infinitely variable speed,flexible and portable operation
The full hydraulic steering,flexible,
hydraulic torque converter,fixed shaft type power shift gear box,large power,strong climbing ability,high reliability,
To realize stepless speed.flexible operation.improving the operation efficiency.Avoid the mechanical shift when the impact caused by the mechanical barrier,And has overload protection function.tO extend the service life.
The advanced hydraulic system and high quality parts to ensure the high reliability of the whole machine is more reasonable.power matching.
Using low voltage and wide tyres, having excellent cross-country performance and through the performance, operation ability, long service life etc.
Full function, the use of a wide range of iron ore,coal, municipal engineering..construction sites, plant material, terminals and other materials.
formation.1ifting and towing the best tools.
Optional wood clamping machine.grass cutting machine.bucket.nsrrow side tipper.four in one bucket configuration function.
Main Parameter
Loading bucket capacity |
1.15 m3 |
Rated load capacity |
2000kg |
Max. breakout force |
49KN |
Max. Traction |
38kn |
Tipping load |
32KN |
Speed |
25Km/h |
Forward I gear shift |
0-11km/h |
Forward II gear shift |
0-27km/h |
Reverse I gear shift |
0-11km/h |
Reverse II gear shift |
0-27km/h |
Dumping height |
3200mm |
Dumping reach when at max. dumping height |
900mm |
Dumping angle |
45° |
Max attachment rollback when on transport position |
52° |
Lifting time of bucket |
4.6s |
Falling time of bucket |
3.2s |
Engine |
LR4102G |
Rated power |
52kw |
Rated speed |
2400r/min |
Max. steering angle |
35° |
Grade ability |
60% |
Min. turning radius (outside of bucket) |
4917mm |
Operation weight |
6365kg |
Size(L*W*H) |
5392mm*2000mm*2715mm |

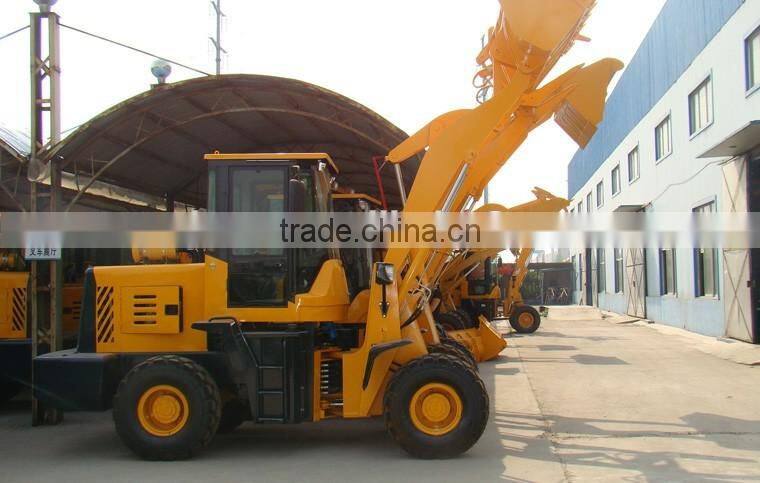

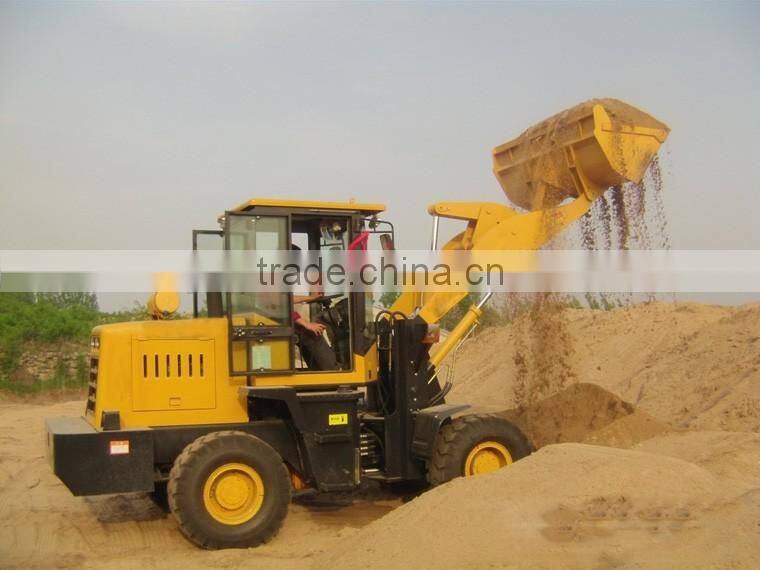

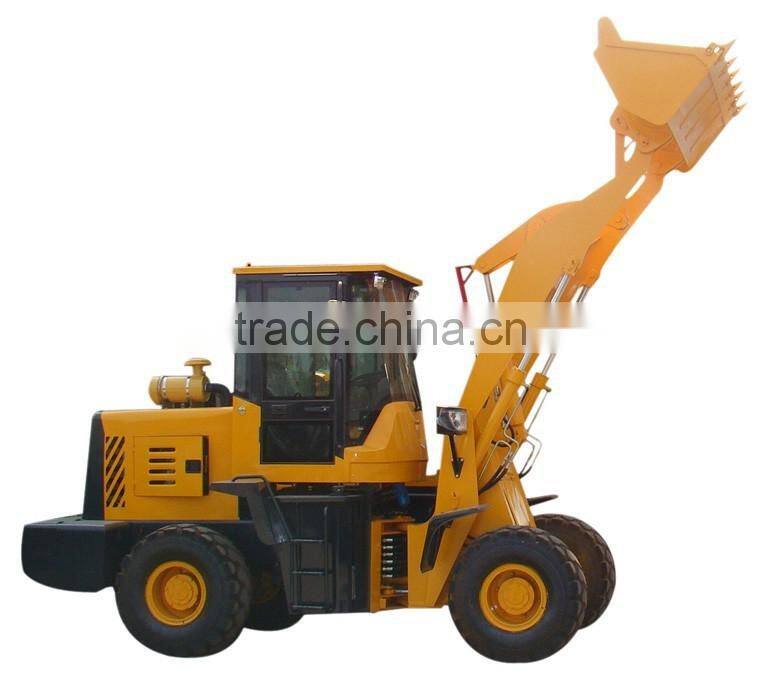

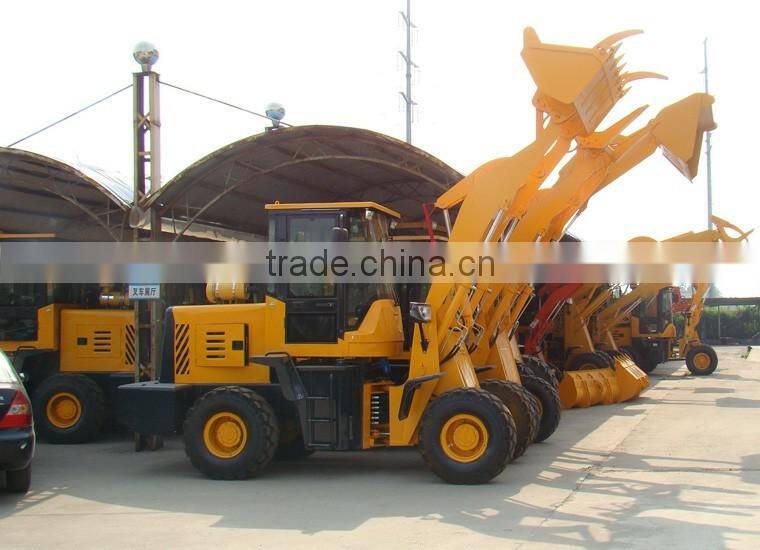

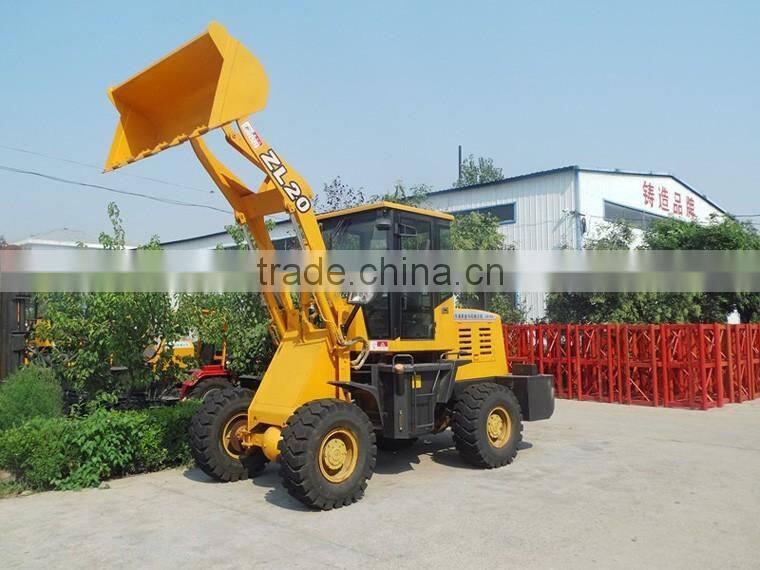

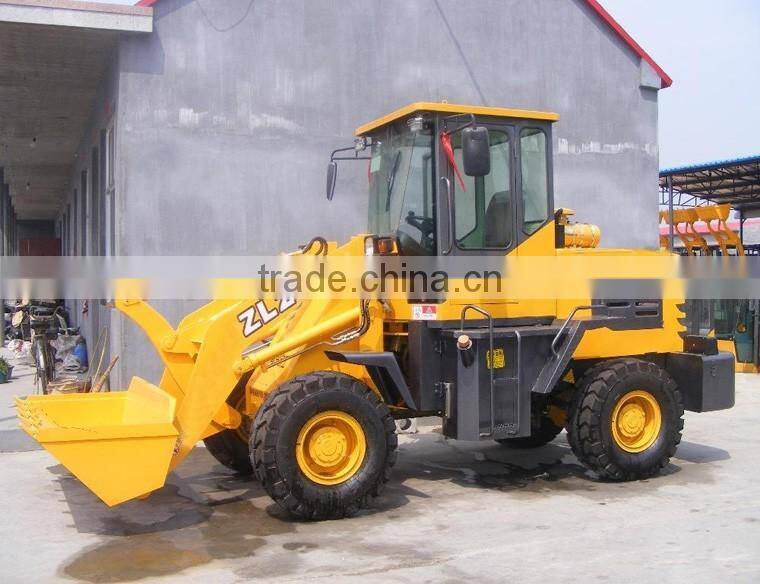

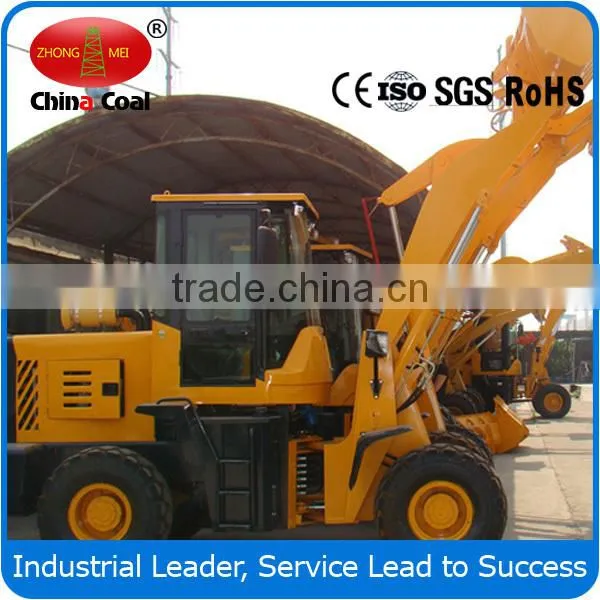

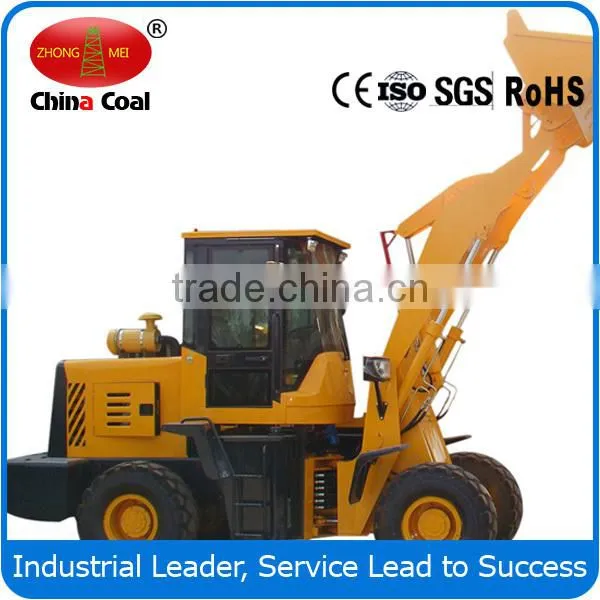

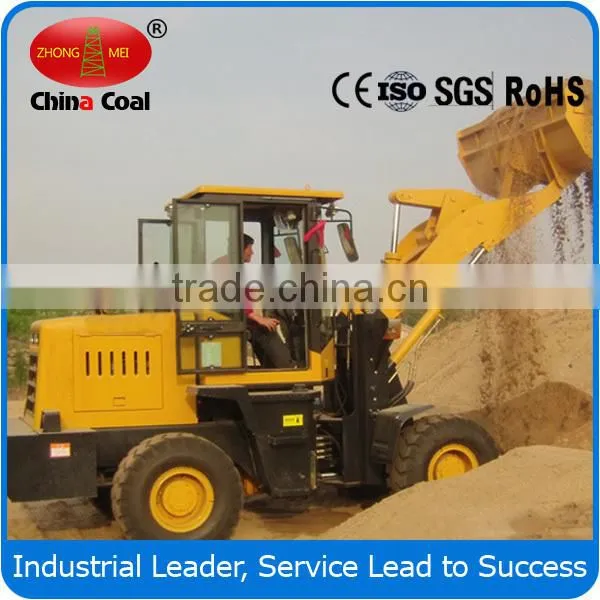

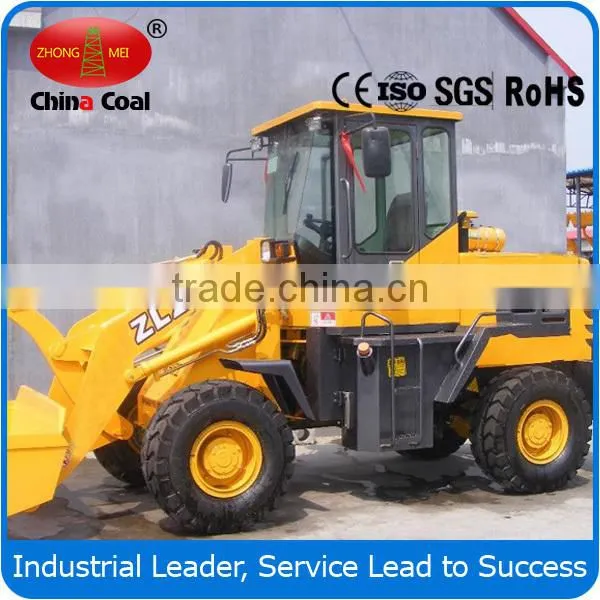

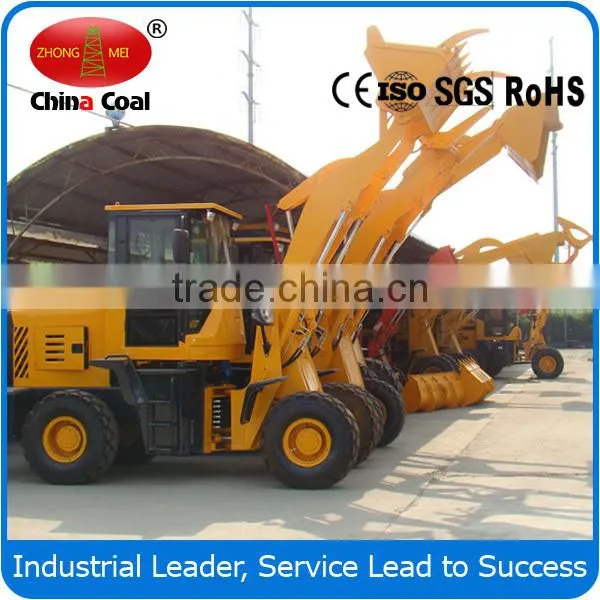

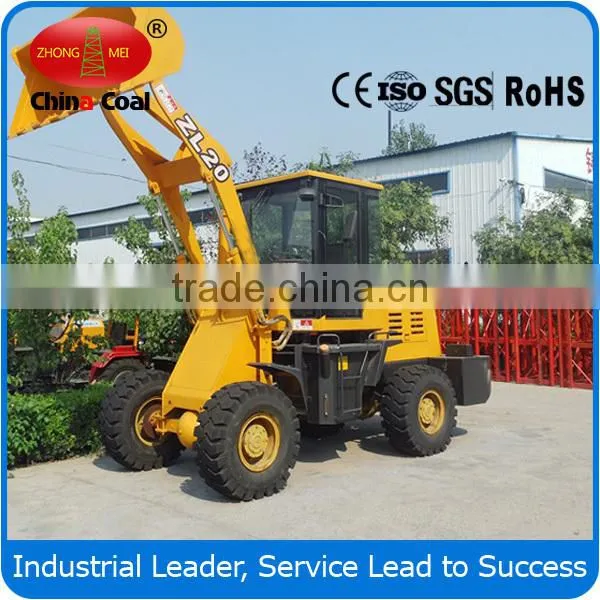

Figure Photos
