Product Introduction

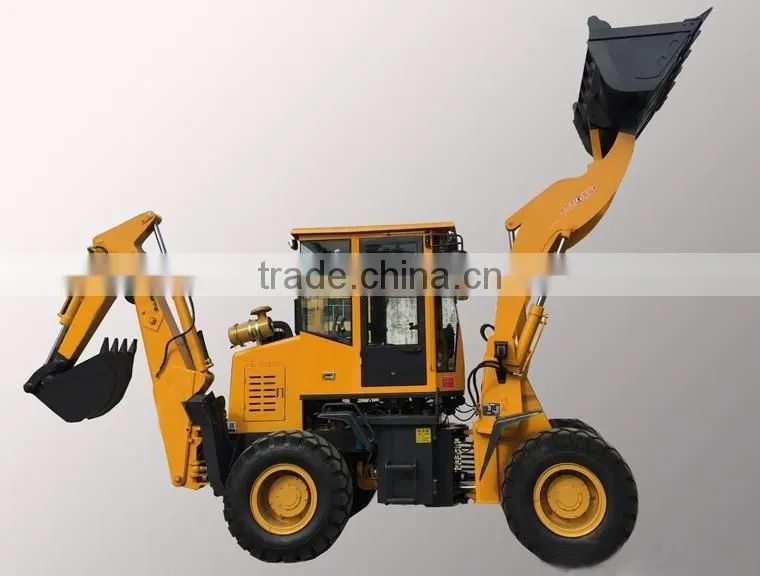

WZ30-18 Excavators Backhoe Loaders
1, Increased cab with security glass, bright and spacious.
2, Operation table: easy to check water temperature, oil temperature, current,
3, Adopts famous brand hydraulic part, dual pump converging power; excavating, loading hydraulic power for each other.
4, Adopts suspension shock absorber-360 • rotate seat, with seat belts, and improve driver comfort and safety.
5, Hinge type front and rear frames, small turning radius, full hydraulic steering, easy and convenient operation.
Part 6, mining-led operation, light manipulation, positioning accuracy.
7, Fully equipped with all the features of small excavators and loaders.
8, Equipped with a variety of options to meet the needs of different users.
9, Reset the tap unit and the wings legs, broken rock, and when you dig deeper than other forms of mining equipment with greater stability.
Main Parameter
Operating weight | 4800kg |
Capacity of bucket | 0.3m3 |
System working pressure | 20mpa |
Engine | 4102 |
Rated power | 51kw |
Rated speed | 2400r/min |
Max. excavating height | 5000mm |
Max. excavating depth | 3600mm |
Max. excavating radius | 5000mm |
Max. excavating WidthMax. excavating width | 550mm |
Capacity of bucket | 1.0 m3 |
Rated load | 1800kg |
Dumping height | 3600mm |
Dumping reach | 950mm |
Min. turning radius | 4300mm |
Max. flux | 50ml/r |
Max. Tractive force | 38KN |
Max. breakout force | 49KN |
Max. digging force | 44KN |
Grade ability | 45% |
Max. traveling speed(forward, backward) | ≤25km/h, 25km/h |
Ground clearance | 220mm |
Wheel base | 2290mm |
Tread | 1500mm |
Drive type | 4WD |
Tyre | 20.5/70-16 |
Size(L*W*H) | 6900mm*2080mm*2900mm |

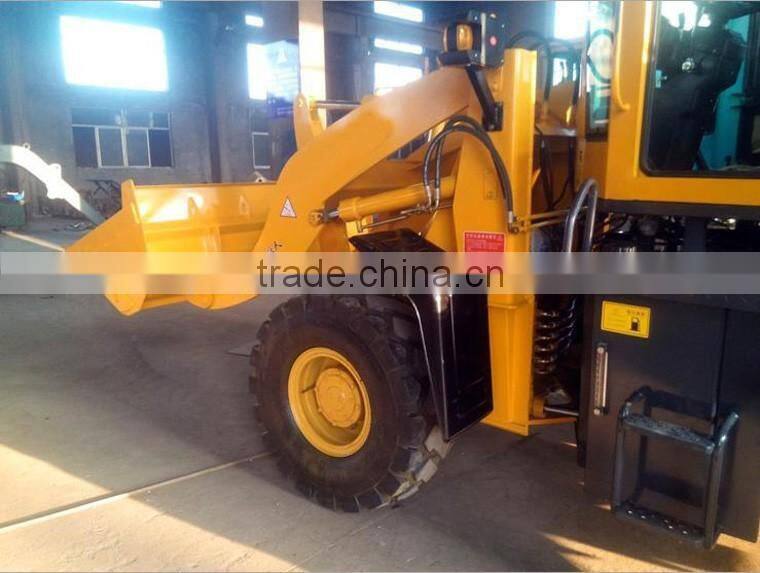

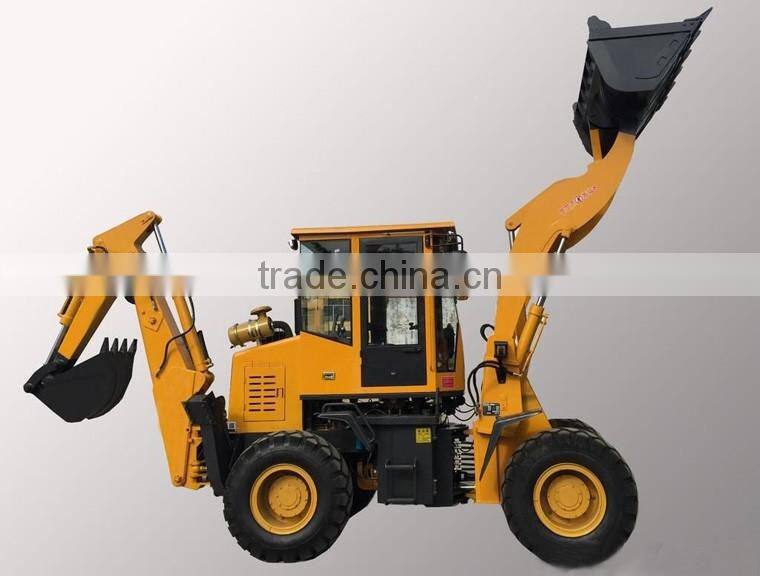

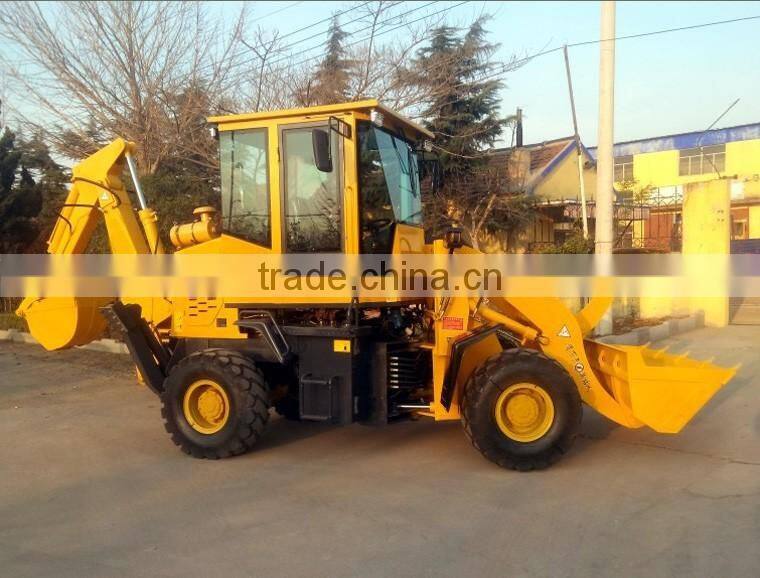

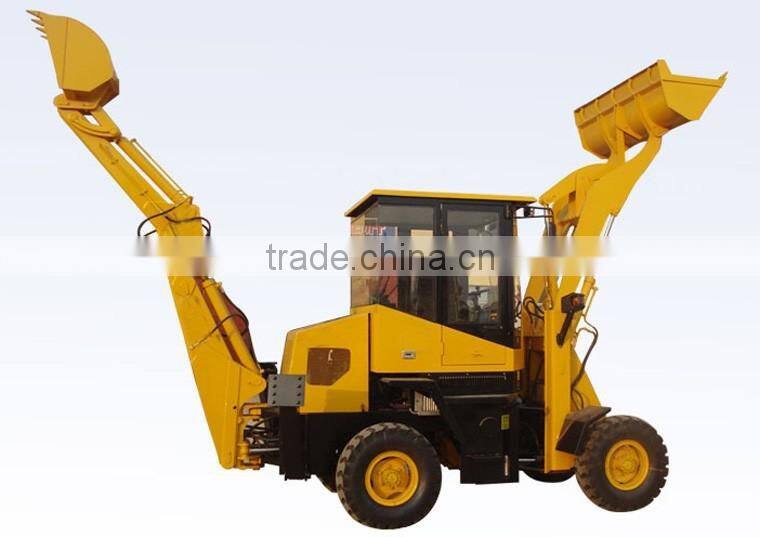

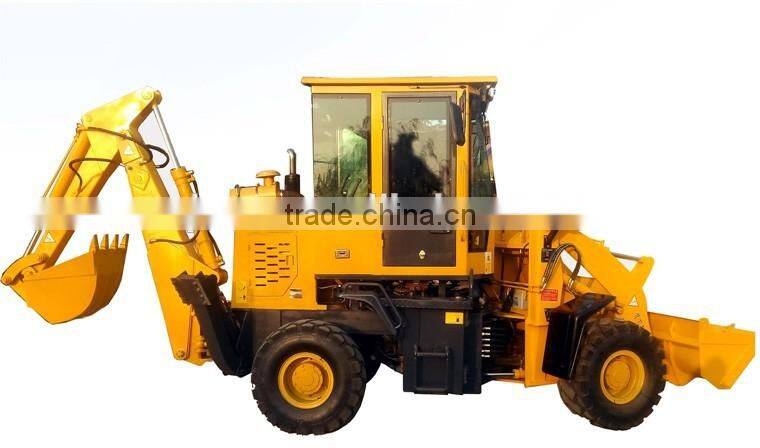

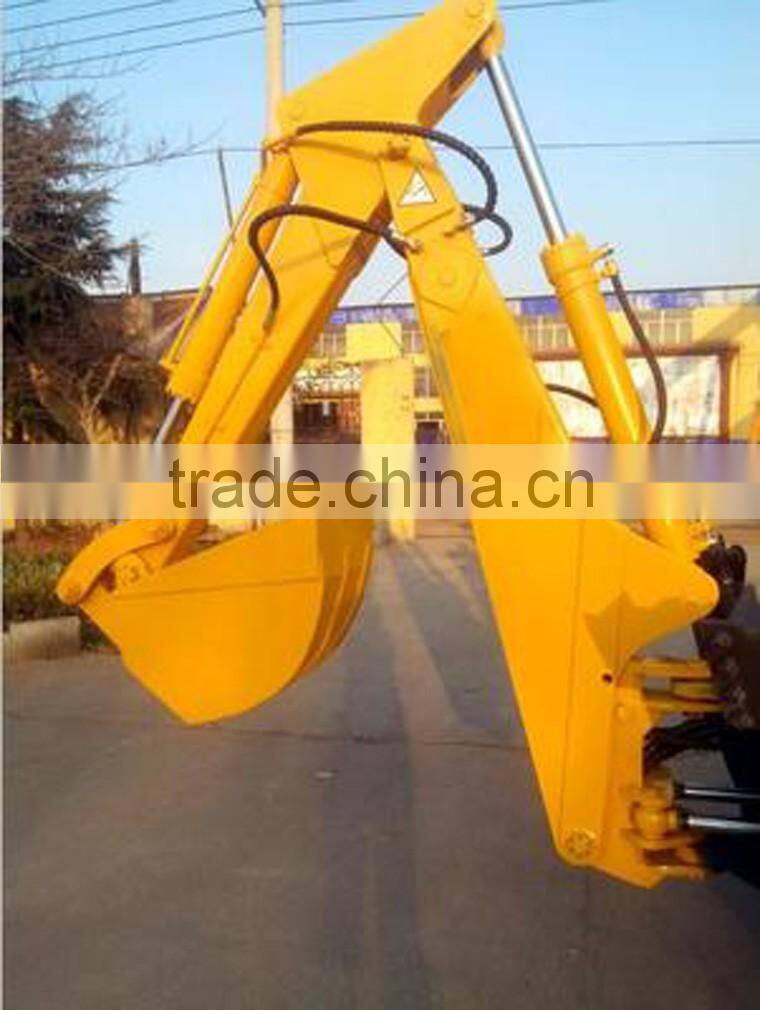

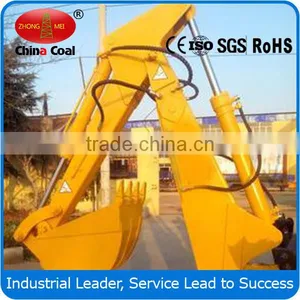

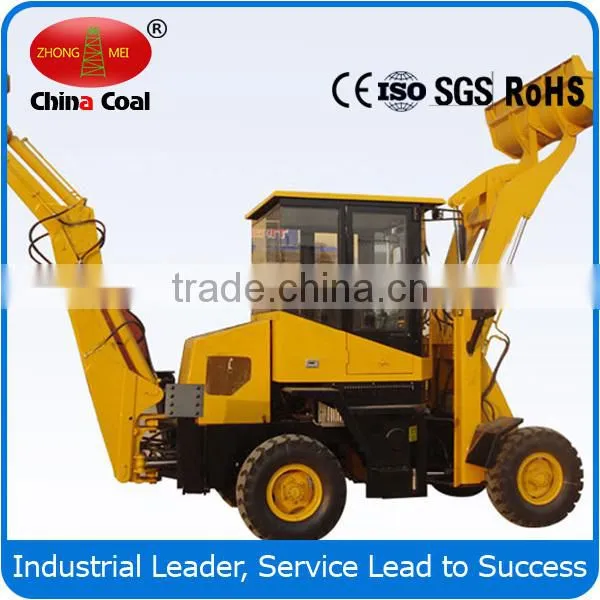

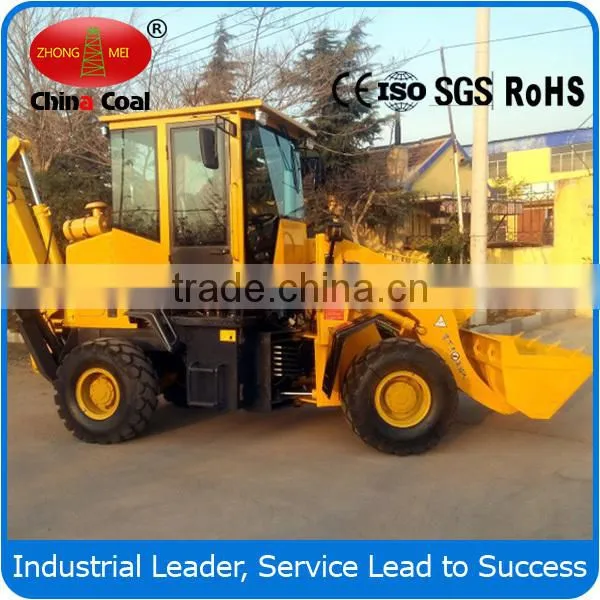

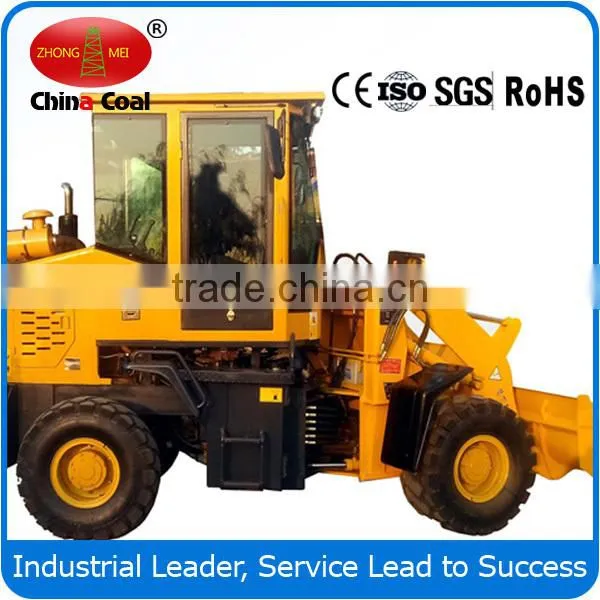

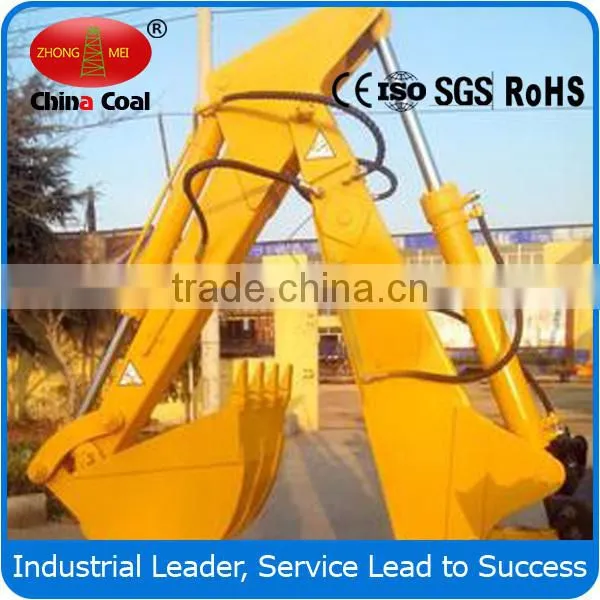

Figure Photos
Figure Photos
