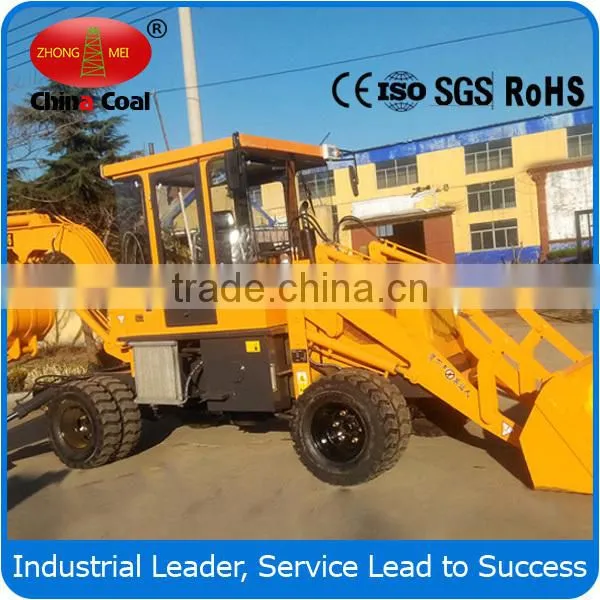

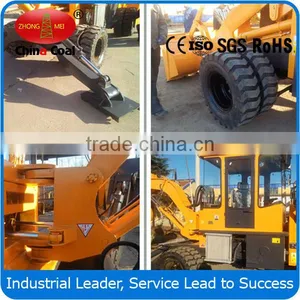

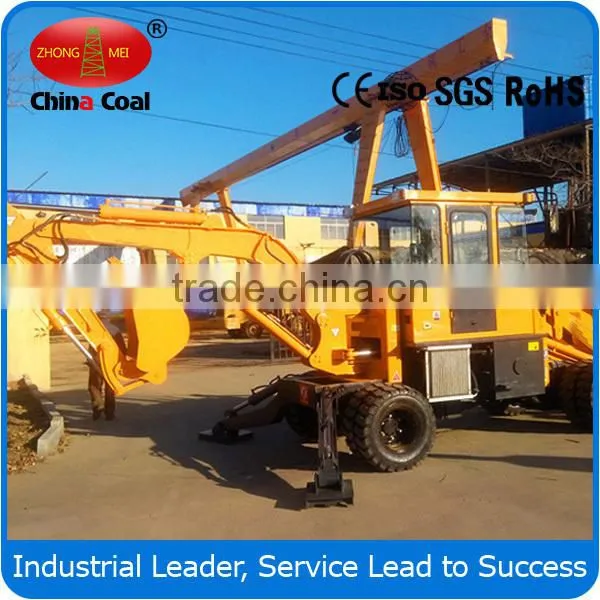

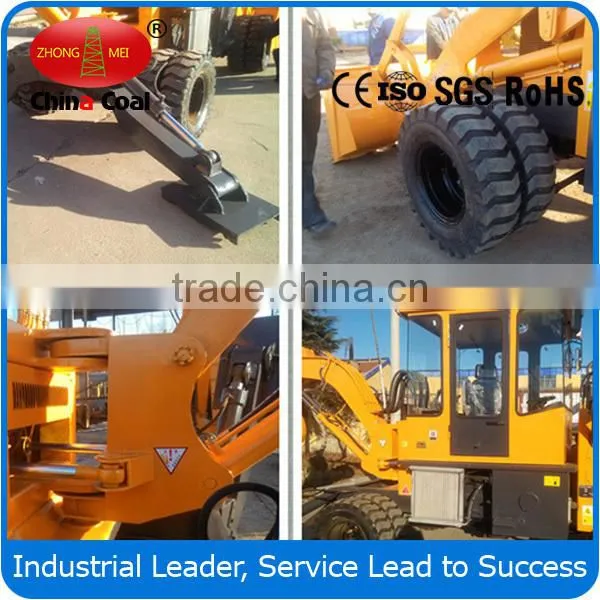

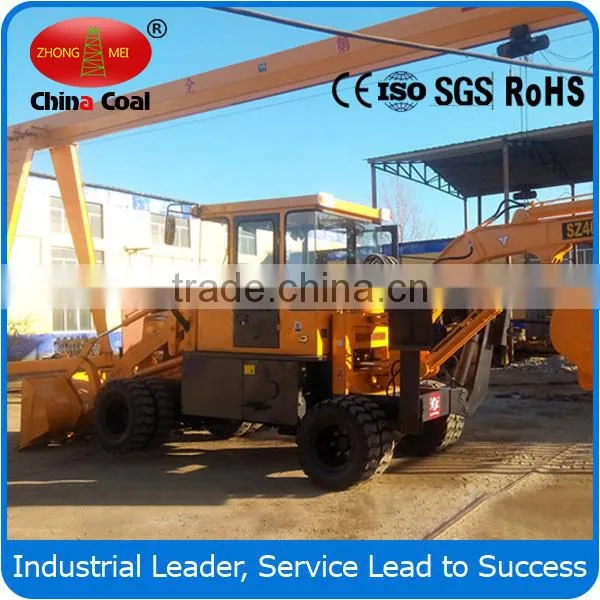

Help CenterSZ40-16 Backhoe Loader With 0.4m3
Related Products
-
WZ30-25 Small Wheel Loader From China CoalNegotiableMOQ: 1 Set -
WZ30-18 China Mini Wheel Loader, Backhoe LoadersNegotiableMOQ: 1 Set
-
Hydraulic Backhoe Loaders From China With 38KWUS$ 10 - 100,000MOQ: 1 Set
-
Hot Products Backhoe Wheel Loaders With 1200kg Rated LoadUS$ 10 - 100,000MOQ: 1 Set
-
Basement Dedicated Backhoe Loader With 32KN Tipping LoadNegotiableMOQ: 1 Set
Product Introduction

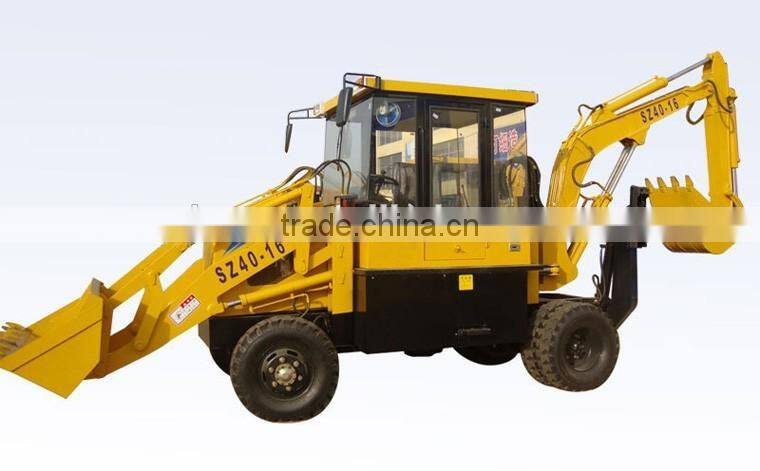

backhoe loader with 0.4m3 rated bucket capacity
1). The machinery is of compact structure and logical layout.
2). Good appearance and design of components embody hommization adequately.
3). The performance has achieved advanced level in China.
4). The imported components is used as the transmission system and the hydraulic system uses domestic famous brand.
5). The panoramic cabin is of broad vision.
6). The driving axle with differential lock and wet disc brake significantly improve the traction and safty performance.
7). The service brake and parking brake adopts maintainable-free.
8). The cover with open-back design improves maintainability.
9). It can be fixed with many accessories according to requirements.
Main Parameter
Operating weight |
6500kg |
Capacity of bucket |
0.4m3 |
System working pressure |
20mpa |
Engine |
4102 |
Rated power |
60kw |
Rated speed |
2200r/min |
Max. excavating height |
6000mm |
Max. excavating depth |
3200mm |
Max. excavating radius |
5550mm |
Max. excavating WidthMax. excavating width |
720mm |
Capacity of bucket |
0.9m3 |
Rated load |
1600kg |
Dumping height |
2850mm |
Dumping reach |
1000mm |
Lifting time of movable arm |
3.8s |
Descending time of movable arm |
3.4s |
Dumping time |
3s |
Max. flux |
63ml/r |
Max. Tractive force |
30kn |
Grade ability |
35° |
Ground clearance |
220mm |
Wheel base |
2800mm |
Tread |
1550mm |
Drive type |
4WD |
Tyre |
825-16 |
Size(L*W*H) |
7500mm*2100mm*2700mm |

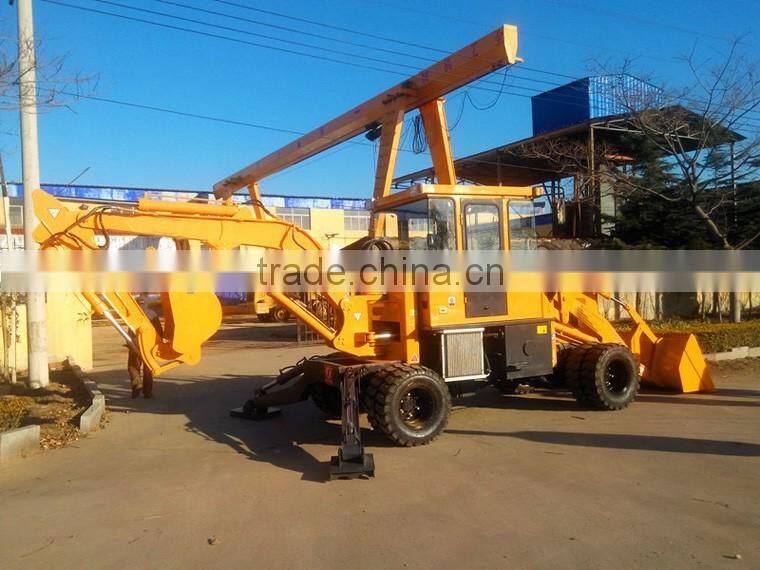

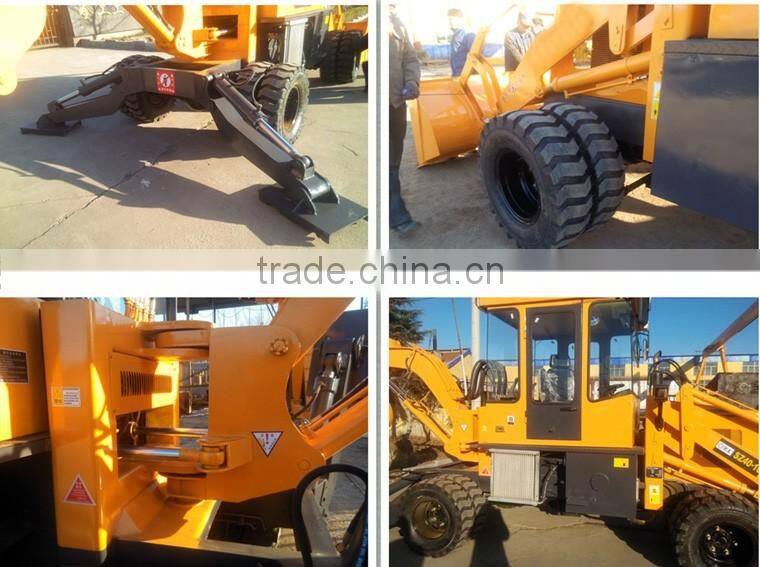

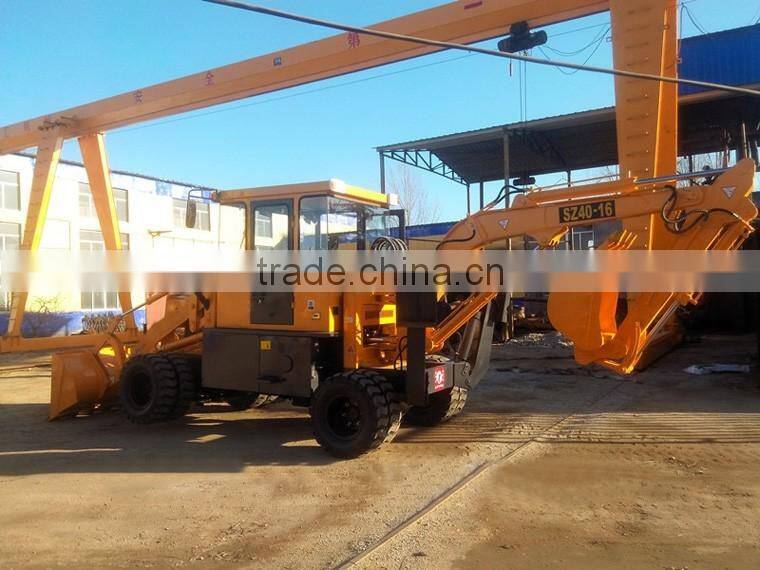

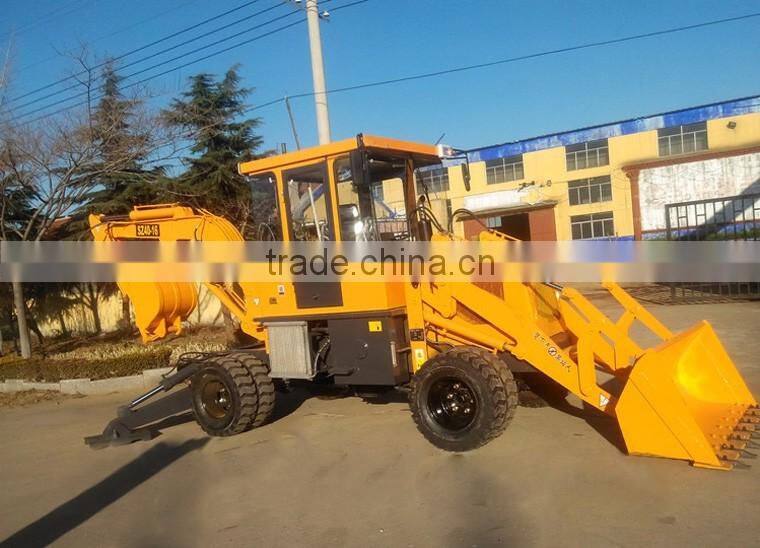

Figure Photos
Figure Photos
