Rock Splitting Tools/ Stone Splitting Wedge Machine

Name: Rock Splitting Tools/ Stone Splitting Wedge Machine
Brand: China Coal
SKU: 141037956
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Stone

Motor Type:

Other

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Ningbo Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Stone

Motor Type Other

Power(W) no

Place of Origin Shandong, China

Brand Name China Coal

Model Number ZM( 32-38)A

Dimension(L*W*H) differ

Certification ISO9001, CE, ISO, SGS, TUV, InTouch

Warranty 1 Year

After-sales Service Provided No overseas service provided

Product Description

Rock Splitting Tools/ Stone Splitting Wedge Machine Introduction

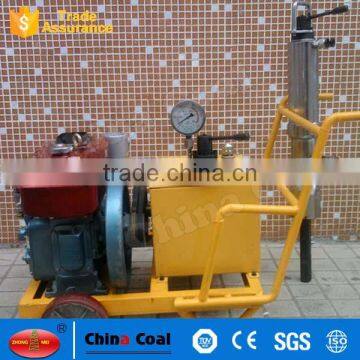

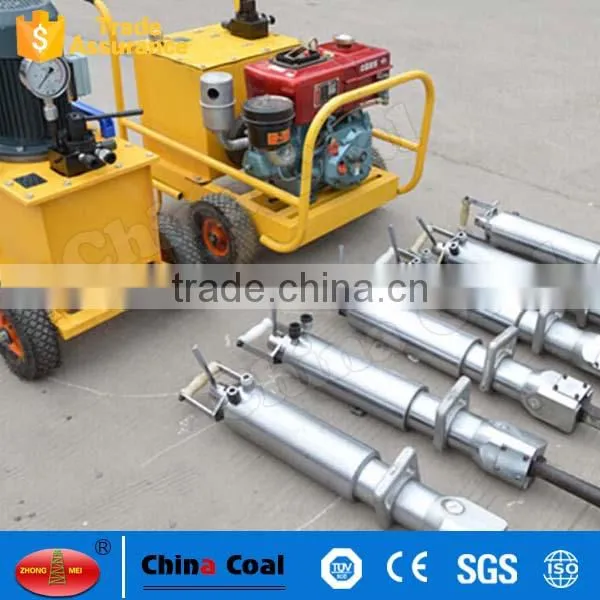

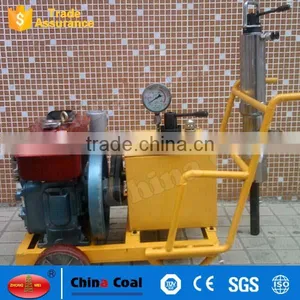

Rock Splitting Tools/ Stone Splitting Wedge Machine

Rock Splitting Tools/ Stone Splitting Wedge Machine is our newly developed Product which is a powerful and

extremely cost effective alternative to other conventional demolition tools. It can develop a very huge

splitting force (Maximum 1000 T) when it put into the pre- drill holes of rock or concrete and crack it

into pieces within several seconds. It is widely used in mineral mining (cave mining), civil engineering

construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.

Model	Piston Diameter	Hole Diameter	Hole Depth(mm)	The length of the wedge	crack width	Split time	Theoretical splitting force	The actual split force
(Type)	(MM)	(MM)	(MM)	(MM)	(mm)	(S)	(T)	(T)
ZM( 32-38)A	80	Φ32~38	≥300	150	10~35	5~12	500	280
ZM( 38-40)A	80	Φ38~42	≥300	150	10~40	5~12	500	280
ZM( 38-40)B	80	Φ38~42	≥400	200/250	10~40	5~12	650/600	350/300
ZM( 40-42)	90	Φ42~46	≥600	300	10~40	5~12	680	420
ZM( 42-46)	90	Φ42~46	≥600	380	10~40	5~12	650	500
ZM( 44-46)A	100	Φ44~46	≥600	300/380	10~40	5~12	780	550
ZM( 44-46)B	105	Φ44~46	≥600	300/380	10~40	5~12	880	600
ZM( 46-48)	110	Φ46~48	≥600	300/380	10~40	5~12	1080	700

Poewr pump pack	Dimension(mm)	weight(kg)	Tank capability(L)	Engine power	pressure(MPa)	Flux(L/m)	Splitting(pc)
Diesel engine	11501180940	120	40	6Hp	55-60	2-13	1-10
