Stone Splitter for Demolition
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
4.2KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stone Splitter Tunneling Hydraulic SplitterNegotiableMOQ: 1 Set -
Rock Splitter Machine With Electric PowerNegotiableMOQ: 1 Set
-
Hydraulic Stone SplitterUS$ 1,000 - 5,000MOQ: 1 Set
-
Good Quality Hydraulic Stone Rock Concrete Splitter for SaleUS$ 1,000 - 10,000MOQ: 1 Set
-
Hydraulic Stone Cutter--hydraulic Stone SplitterUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Motor Type
AC Motor
Power(W)
4.2KW
Place of Origin
Shandong, China
Brand Name
China Coal
Model Number
DS
Dimension(L*W*H)
1150*1180*940
Certification
CE
Warranty
12 months
After-sales Service Provided
No overseas service provided
Product Introduction
| Product Name: | hydraulic rock splitter /hydraulic stone splitter | ||||||||

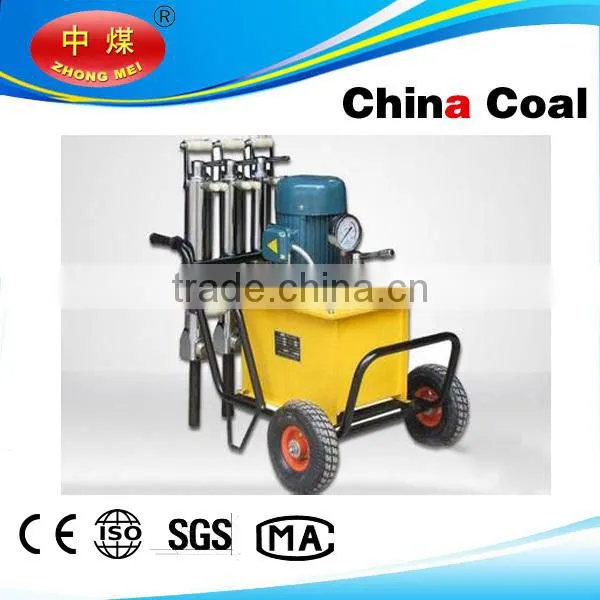

| Description: | 1. Hydraulic rock splitter is maninly composed of power pump pack and hydraulic cylinder. | ||||||||
| Mainly applicable to the secondary breaking. | |||||||||

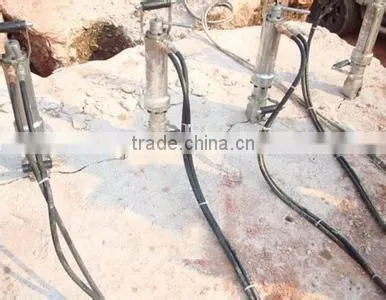

| 2. First drill hole in stone, then insert hydraulic cylinders which is contain wedge and feathers, | |||||||||
| Start engine to provide hydraulic pressure. | |||||||||
| 3. Repeat the process until the whole structure is fractured into smaller sections and ready for removal | |||||||||
| Advantages: | 1. Enormous splitting force up to 500 tons & vibration free | ||||||||
| 2. Dust free and near silent operation & Light weight and Easy handling | |||||||||
| 3. Different sizes of counter wedge and center wedge can use on the same splitter | |||||||||
| Application: | 1. Split all kinds of natural stones, rock, granite, marble mining & quarrying | ||||||||
| 2. Remove redundant reinforced concrete structures, concrete machine beds and plinths etc. | |||||||||
| 3. Underwater demolition & Demolition in a restricted space | |||||||||
| 4. Controlled demolition of pillars, concrete and walls where heavy equipment is impractical | |||||||||
Main Parameter
| Model | Bore diameter |
Minimun drilling depth |
The length of the wedge |
Crack width of a division |
Split time |
Theoretical splitting force |
The actual split force |
| (Type) | (MM) | (MM) | (MM) | (MM) | (S) | (T) | (T) |
| DS90A | Φ36~40 | ≥300 | 150 | 10~40 | 5~12 | 720 | 680 |
| DS90B | Φ38~40 | ≥400 | 200 | 10~40 | 5~12 | 700 | 660 |
| DS90C | Φ38~42 | ≥500 | 250 | 10~40 | 5~12 | 680 | 640 |
| DS90D | Φ38~42 | ≥600 | 300 | 10~40 | 5~12 | 660 | 620 |
| DS90E | Φ45~50 | ≥800 | 380 | 10~40 | 5~12 | 640 | 600 |
Figure Photos
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s,registered capital is 138million yuan. The group total has 1100 employees,3 wholly owned subsidiaries and 18 professional branches.Hundreds of our products are exportedto Australia,Russia, Colombia,
Ukraine,Georgia, the United states,Southeast Asia and so on more than 60 countries and regions.
Customers Visit

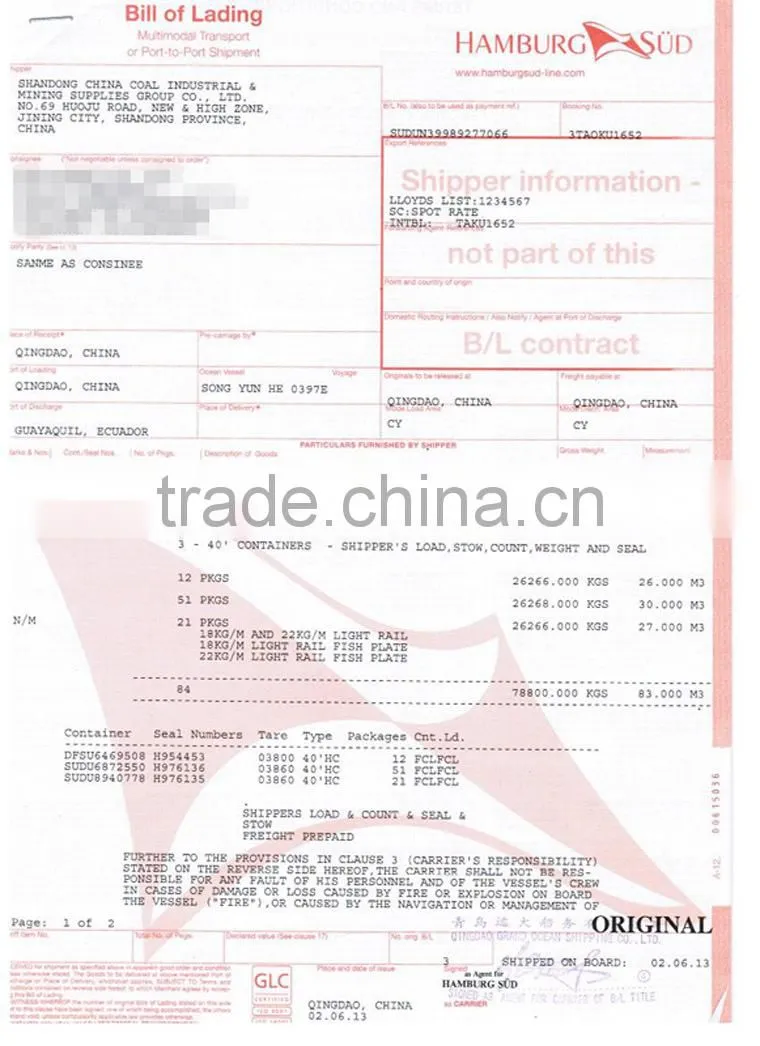

B/L of The History Trading
