Product Introduction
ZM( 32-38)A concrete stone splitter machine for 5-12s Split time:
Hydraulic Stone Splitter
is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000 T) when it put into the pre- drill holes of rock or concrete and crack it into pieces within several seconds
It is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in please let us know which type of pump
Main Parameter
Model | Piston Diameter | Hole Diameter | Hole Depth(mm) | The length of the wedge | crack width (mm) | Split time | Theoretical splitting force | The actual split force |
(Type) | (MM) | (MM) | (MM) | (MM) | 10~35 | (S) | (T) | (T) |
ZM( 32-38)A | 80 | Φ32~38 | ≥300 | 150 | 10~35 | 5~12 | 500 | 280 |
ZM( 38-40)A | 80 | Φ38~42 | ≥300 | 150 | 10~40 | 5~12 | 500 | 280 |
ZM( 38-40)B | 80 | Φ38~42 | ≥400 | 200/250 | 10~40 | 5~12 | 650/600 | 350/300 |
ZM( 40-42) | 90 | Φ42~46 | ≥600 | 300 | 10~40 | 5~12 | 680 | 420 |
ZM( 42-46) | 90 | Φ42~46 | ≥600 | 380 | 10~40 | 5~12 | 650 | 500 |
ZM( 44-46)A | 100 | Φ44~46 | ≥600 | 300/380 | 10~40 | 5~12 | 780 | 550 |
ZM( 44-46)B | 105 | Φ44~46 | ≥600 | 300/380 | 10~40 | 5~12 | 880 | 600 |
ZM( 46-48) | 110 | Φ46~48 | ≥600 | 300/380 | 10~40 | 5~12 | 1080 | 700 |

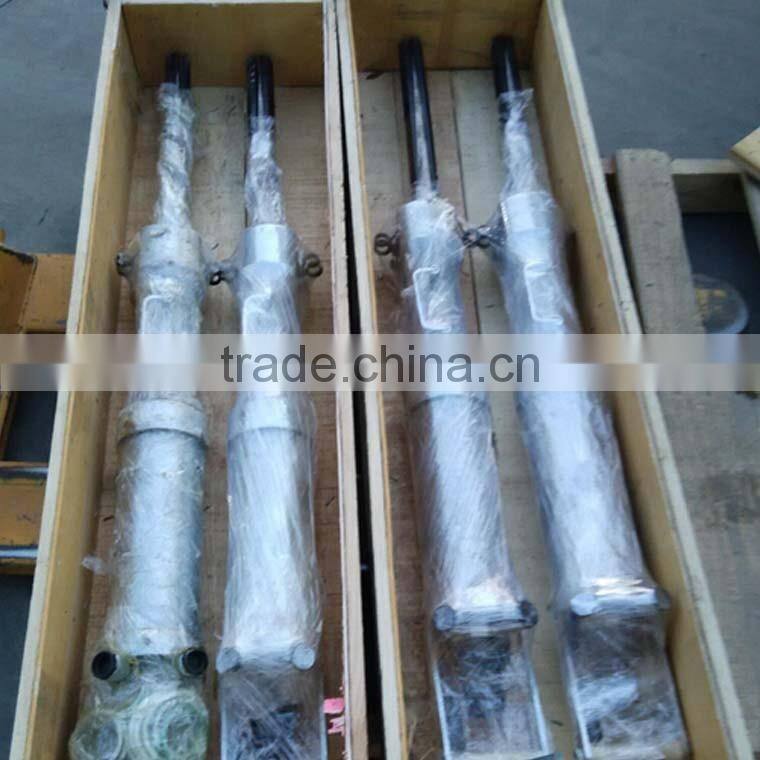

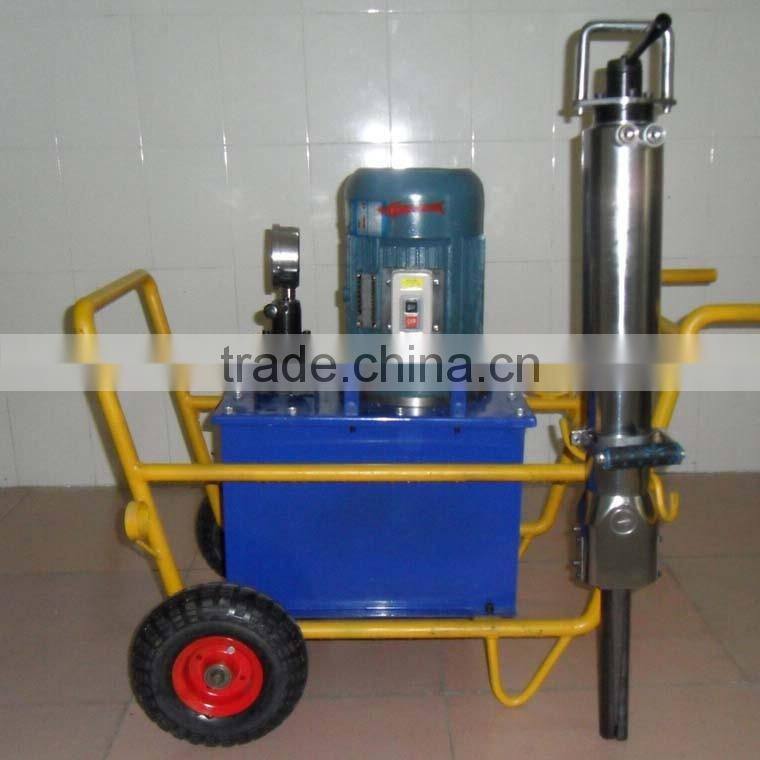

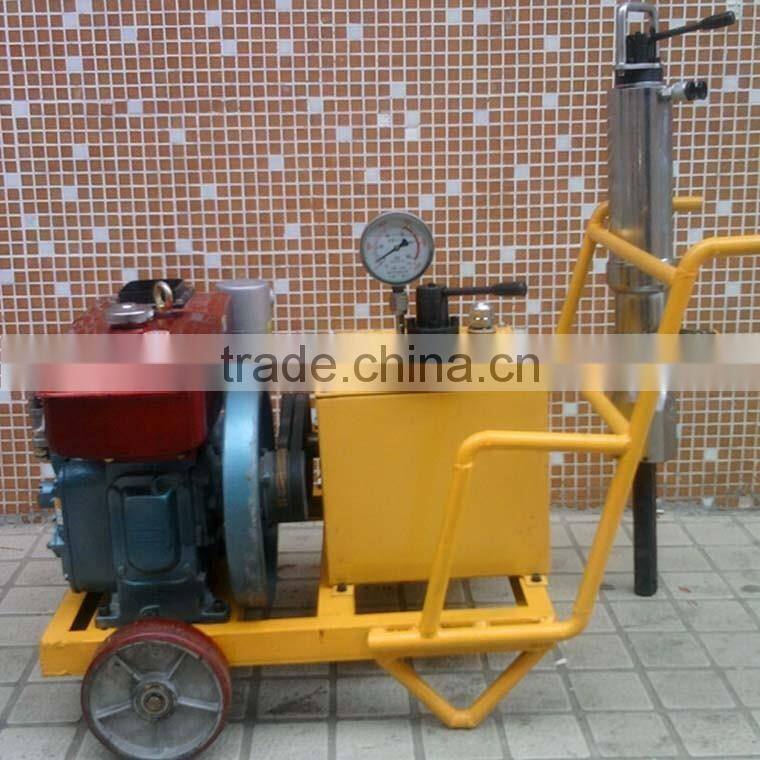

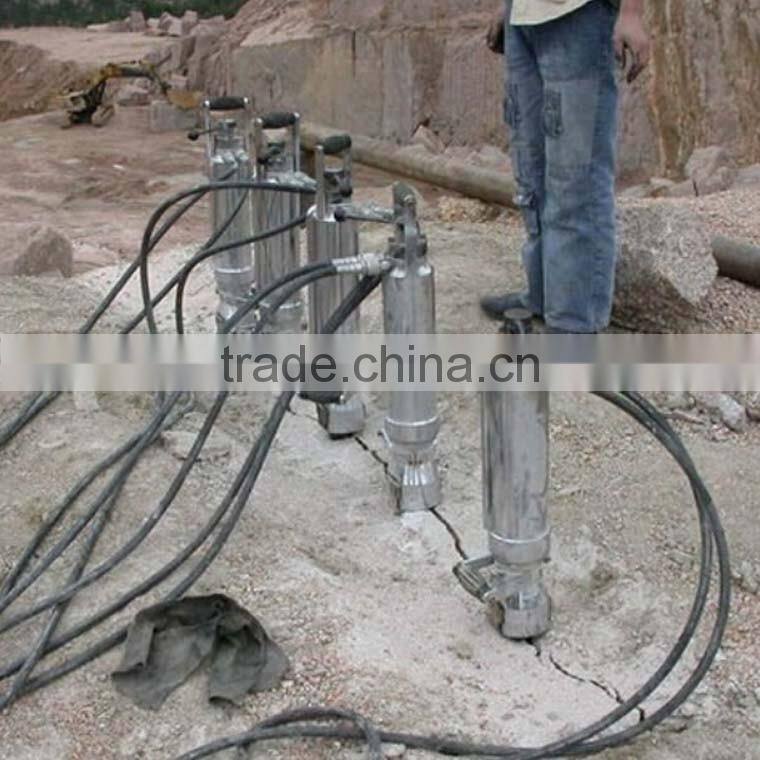

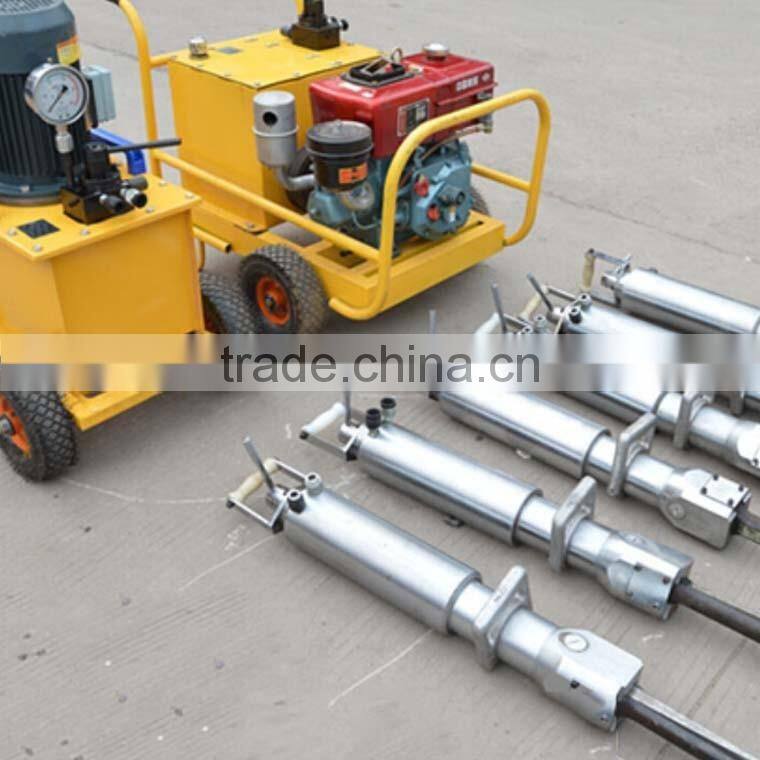

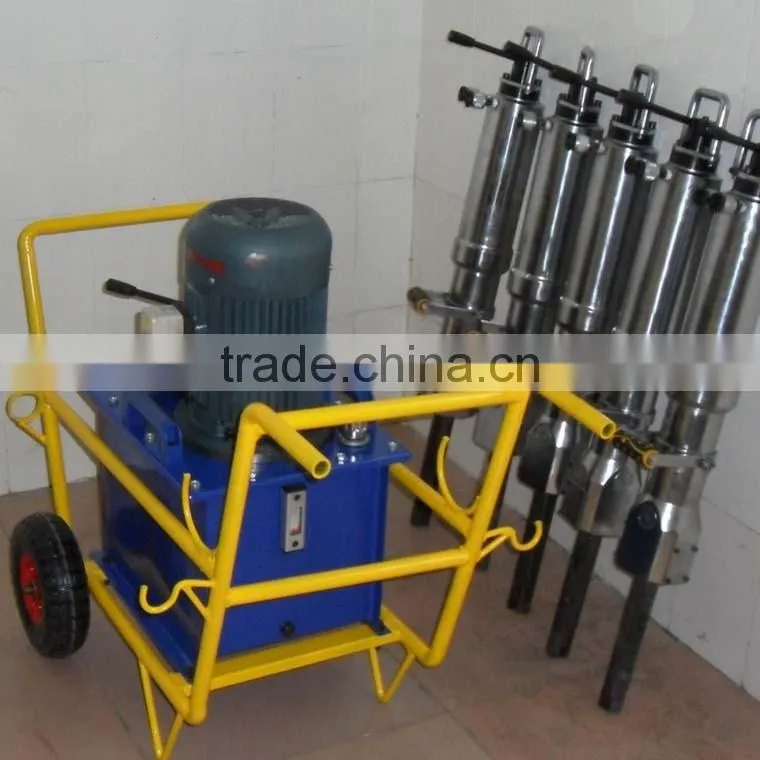

Figure Photos

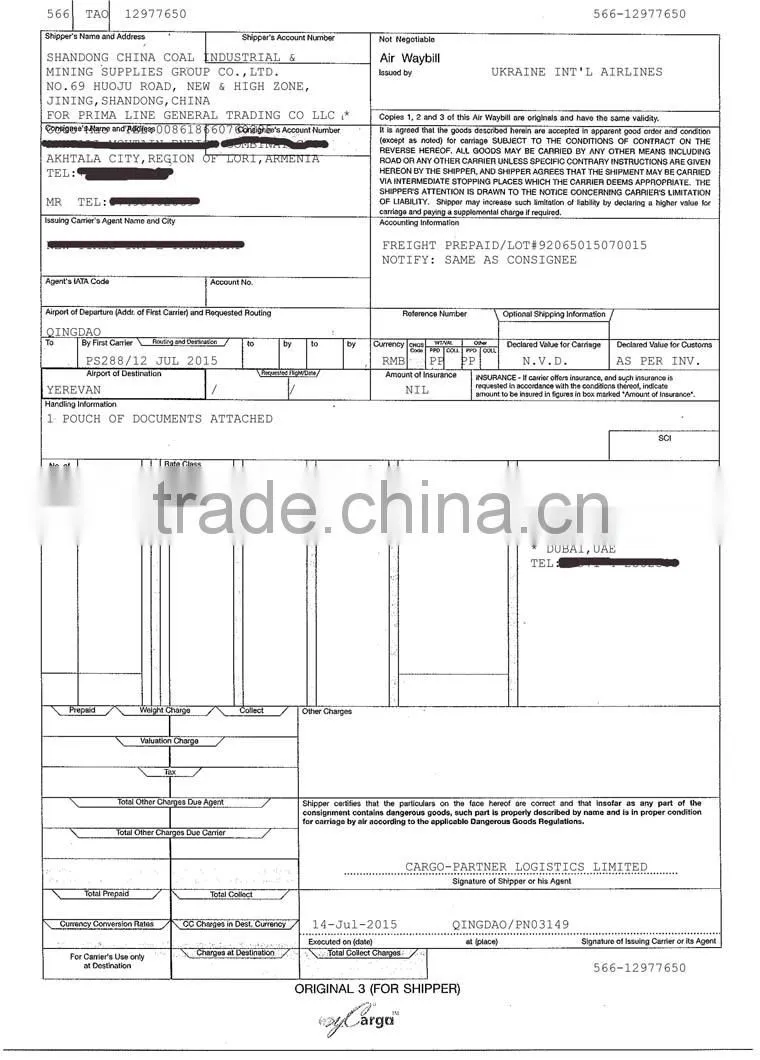

B/L of The History Trading
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s. With world-class production ability, specialized technical support, and valued service, our products have been exported to Australia, Russia, Colombia, Ukraine, Georgia, the United states, Southeast Asia and other more than 140 countries and regions.
