China Manufacturer XY-3B Best Price Small Borehole Rock Core Water Well Drilling Rigs For Sale
- Qingdao Shenzhen Shanghai
- T/T Credit Card
You May Like
-
Small Portable Borehole Water Well Drilling
-
Deep Hydraulic Diesel Engine Water Well Drilling Rig
-
Cheap Price High Quality Hand Held Drill Rig
-
200m Depth Tractor Mounted Water Well Drilling Rig/ Drill Machine To Dig Deep Well
-
Water Well Drilling Rig Machine With Diesel Engine for Drilling 200m
-
Cheap Water Well Drilling Rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | chinacoal | Model Number | XY-3B | |
| Usage | Coal | Voltage | Diesel engine | |
| Power(W) | 35.3 | Dimension(L*W*H) | 330*260*200mm | |
| Weight | 8.5 | Certification | MA | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Diesel Engine 150m Depth Trailer Mounted Water Well Drilling Rig, Trailer Mounted Truck Water Well Drilling Rig Introduction
XY-3B Water Well Drilling Rig is the new 600-meter vertical shaft drilling rig that produced by our factory, can be equipped with diesel engine or electric motor as the driving force. The drilling rig is mainly used for diamond and carbide drilling of solid bed. But also it can be used in engineering geological exploration drilling and pile hole drilling .
Diesel Engine 150m Depth Trailer Mounted Water Well Drilling Rig, Trailer Mounted Truck Water Well Drilling Rig Main Parameter
1,Parameters | |||
Drilling depth m | ø75 mm: 600 ø 273 mm:150 ø 500 mm:80 ø 800 mm:50 | ||
Drill pipe diameter(mm):50,60 Drilling angle (degree):70-900 Rig dimensions(mm):2500×1100×1700 Rig weight(Kg):1300 | |||
2.Gyrator |
| ||
Vertical speedr/min | Forward | 74,163,240,337,440,617,743,1045 | |
Reversion | 64,160 | ||
Vertical feeding process mm:550 lifting capacity KN 68 Vertical capacity KN:46 Maximum operating torque Nm:3500 | |||
3.Winch Lifting speed m/s:0.53, 1.1, 2.0 Lifting capacity KN:30 Diameter of wire rope mm:15 Drum diameter mm:264 Brake wheel diameter mm:460 | |||
4.Drilling rig moving device Shift stroke mm:420
| |||
5.Pump model:CBW320 Rated displacement L/min 40 Rated pressure Mpa 8 | |||
6.Drilling rig power Diesel engine model:CZ4102 Rated power Kw:35.3 Rated speed r/min:2000 | |||

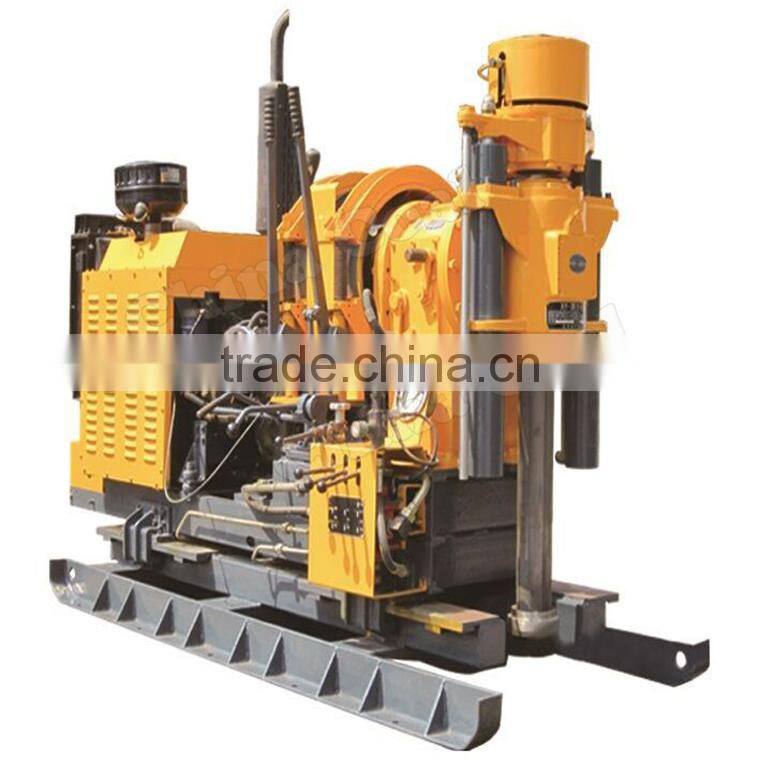

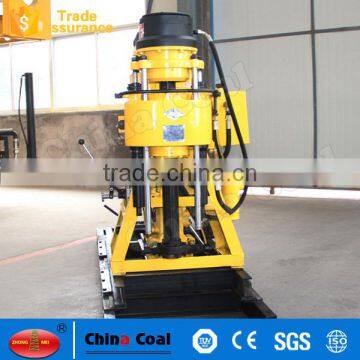

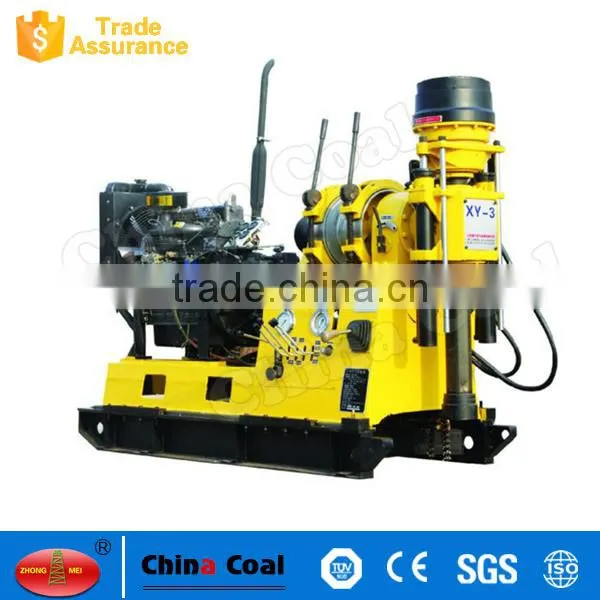

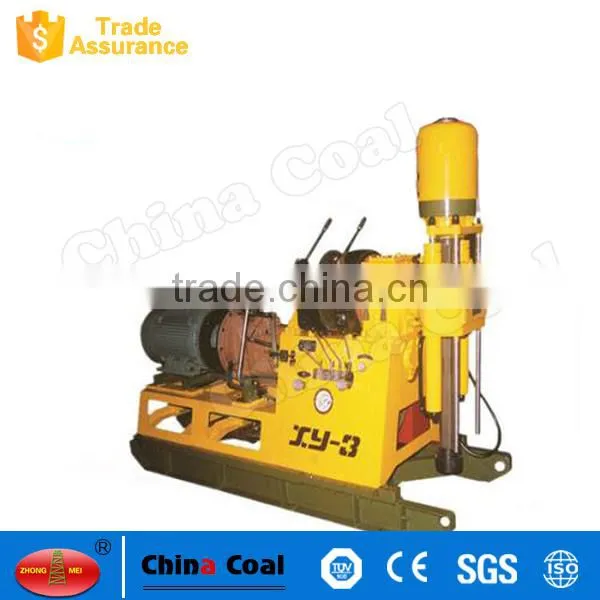

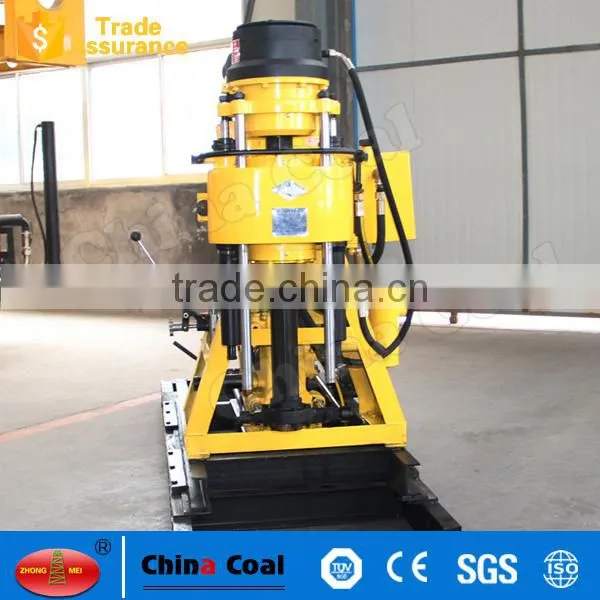

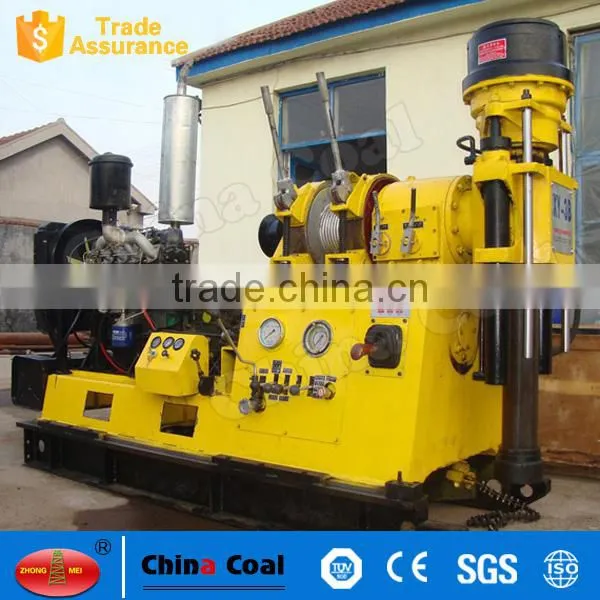

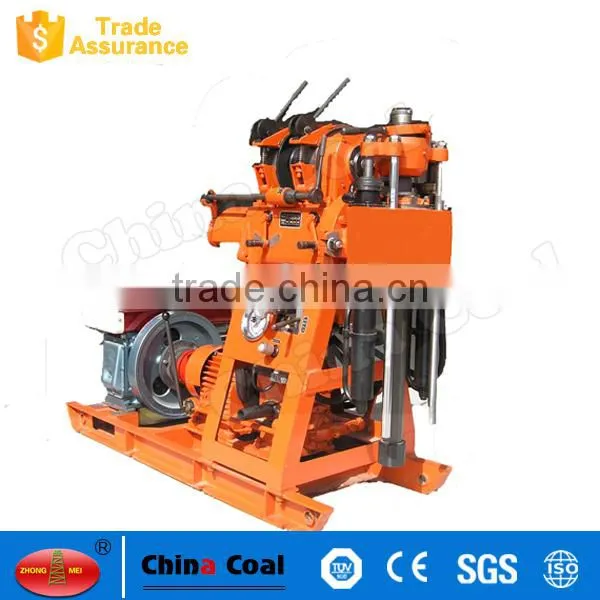

Diesel Engine 150m Depth Trailer Mounted Water Well Drilling Rig, Trailer Mounted Truck Water Well Drilling Rig Figure Photos
