Cheap Price High Quality Hand Held Drill Rig
- qingdao shanghai tianjin ningbo
- T/T L/C D/P D/A Credit Card
You May Like
-
200m Depth Tractor Mounted Water Well Drilling Rig/ Drill Machine To Dig Deep Well
-
Water Well Drilling Rig Machine With Diesel Engine for Drilling 200m
-
Cheap Water Well Drilling Rig
-
Small Water Well Drilling Machine For Sale, Well Water Drill Rig
-
Dth Water Drilling Machine For Sale Philippines
-
Mini Water Well Drilling Rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | chinacoal | Model Number | XY-200 | |
| Usage | Other, core drill | Voltage | 380V | |
| Dimension(L*W*H) | 1433*697*1273mm | Weight | 500kg | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
cheap price high quality hand held drill rig Introduction
XY-200 drilling rig is mainly a collection of functions and features of the popular market XY-1, XY-1B, XY-1A other small rigs.It is a light larger torque rotary rigs which uses XY-1 hydraulic automatic infeed, a wide range of large modulus gear transmission of XY-1B's, XY-1A Wide range speed. Suitable for geological survey and prospecting, exploration roads and building exploration , high-speed grouting detection hole, blast hole, small wells, small pile hole drilling, etc. Divided into three types of XY-200, XY-200 (YJ) (with the shift function) and XY-200 (YJ) with pump.
cheap price high quality hand held drill rig Main Parameter
(1) Rated drilling depth:200m,The deepest shall not exceed 220m.
Rated opening diameter:200mm.
Maximum opening diameter : 300mm.
Drilling depth and drilling diameter shall be determined according to the formation conditions.
(2)The vertical speed (four steps):118,236,505,1010.r/rain
(3)Max output torque:1500N. m
(4)Maximum weight (a speed of single rope):17KN
(5)drill pipe diameter:42mm
(6)Borehole inclination:90~75°
(7)Rig overall dimensions·(L×B×H)1433×697×1273mm
(8)Rig weight:500kg(Transfer machines 620kg, transfer machine with pump 720kg)
(9)Engine model:S1115

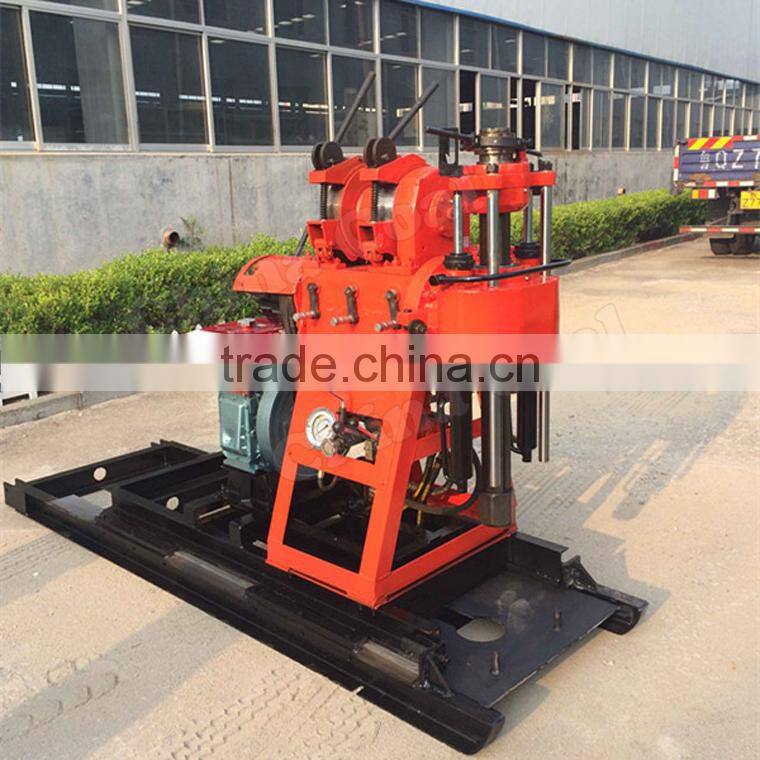

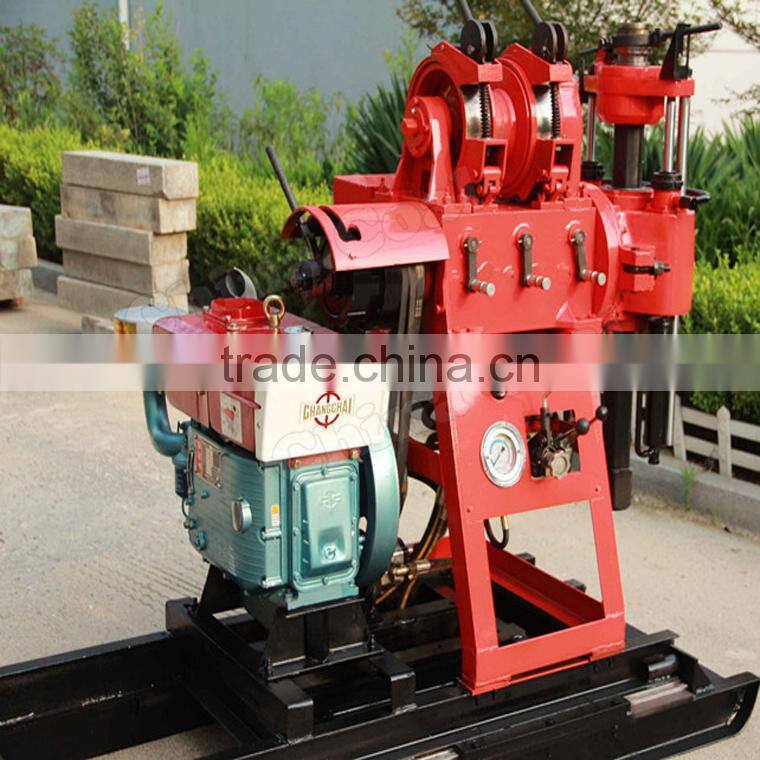

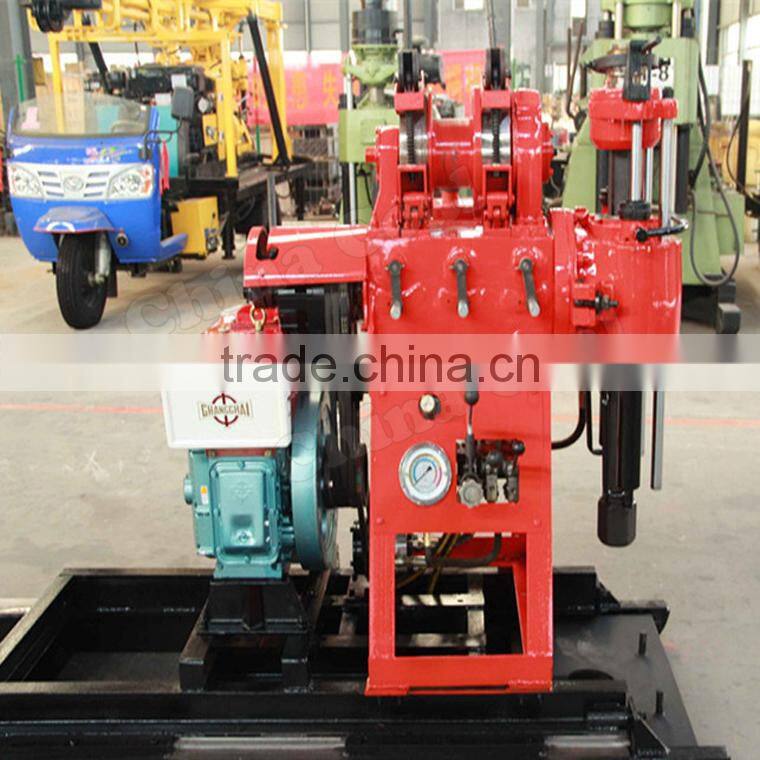

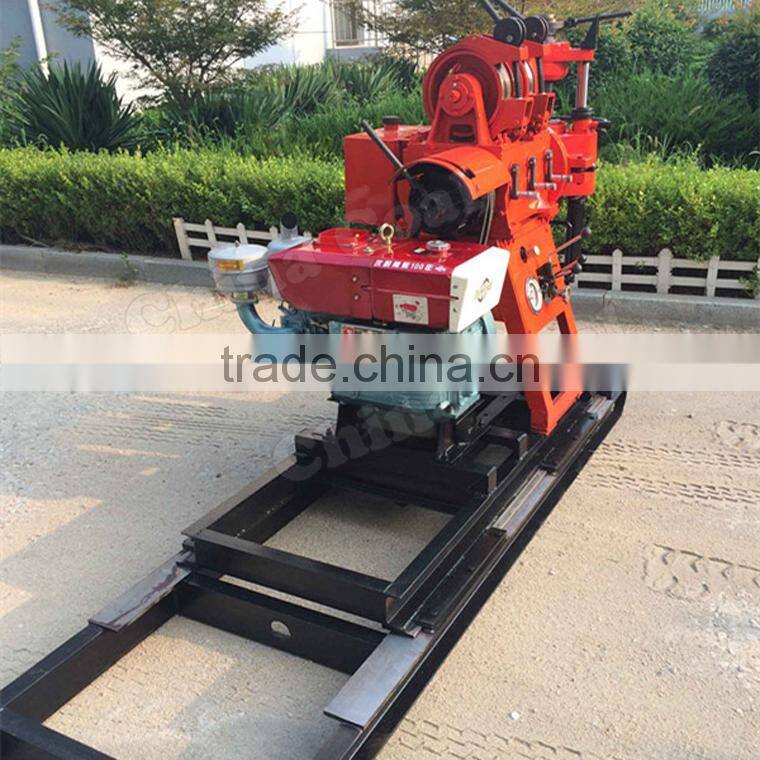

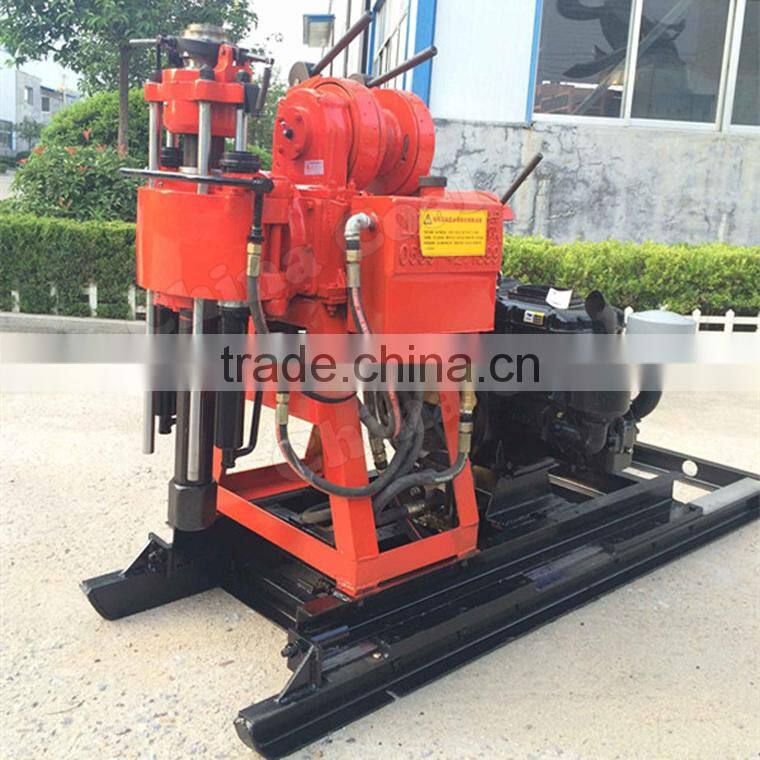

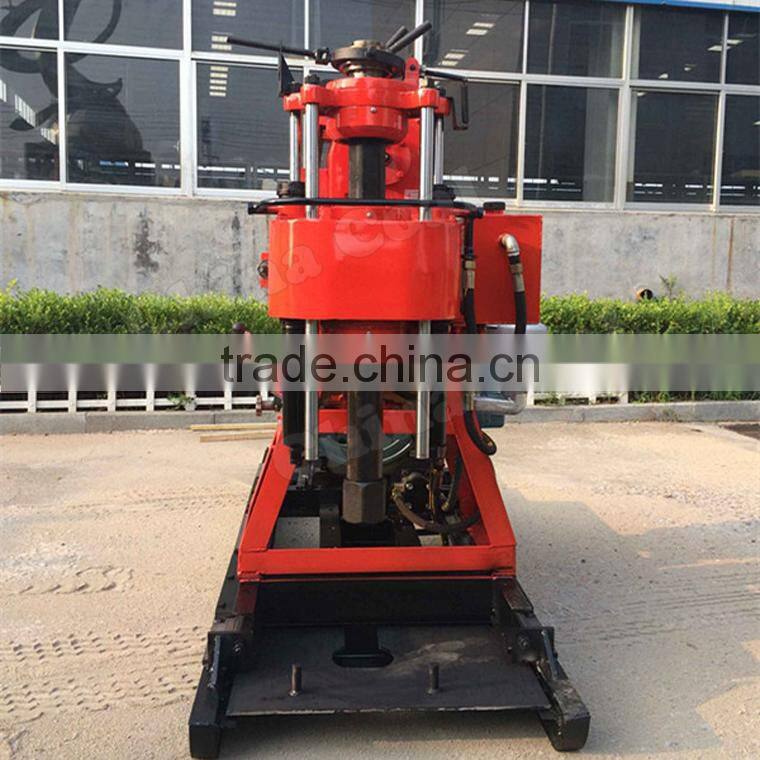

cheap price high quality hand held drill rig Figure Photos
