What is Rock Drilling Equipment Quarry Stone Drilling Machine?
Rock Drilling Equipment Quarry Stone Drilling Machineis used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
Rock Drilling Equipment Quarry Stone Drilling Machine is suitable for drilling of horizontal or inclined holes on the medium-hard and hard rock. When its matched with air leg Model FT100, it can blast holes from different directions and angles.
Blast hole diameter is between 36mm and 42mm. with an efficient depth from 1.5m to 2m.
What Does Rock Drilling Equipment Quarry Stone Drilling Machine Used For?
Hot Sale High Quality Jack Hammer Rock Drill YT27 is widely used in road construction, concrete and other hard objects demolition. It is featured by durable parts, good performance and easier operation, which is a classic products among breaking tools.
More Rock Drilling Equipment Quarry Stone Drilling Machines For Choose
Our business scope: Y series rock drillings, G7 air rock jack hammer, G10 jack hammer, G19 jack hamemr, G20 jack hammer, YT series rock drillings with air leg, YT24 rock drilling machine, YT28 rock drills, YT29 rock drills, YN27c internal rock drills, electric coal drilling machine, coal drill rod, drill bit, drill rod with shank, etc.,
Main Parameter of Rock Drilling Equipment Quarry Stone Drilling Machine
Type | YT27 |
Weight | 26 (Kg) |
Length | 668 (mm) |
Cylinder dia | φ80 (mm) |
Piston stroke | 60 (mm) |
Working pressure | 0.4~0.5 (Mpa) |
Impact energy | ≥70 (J) |
Impact frequency | ≥36 (Hz) |
Air consumption | ≤85 (L/s) |
Working water pressure | 0.2~0.3 (Mpa) |
Air pipe inner dia | φ25 (mm) |
Water pipe inner dia | φ13 (mm) |
Rock drill hole dia | φ34~φ42 (mm) |
Rock drill hole depth | 5 (m) |
Shank size | 22×108 (mm) |

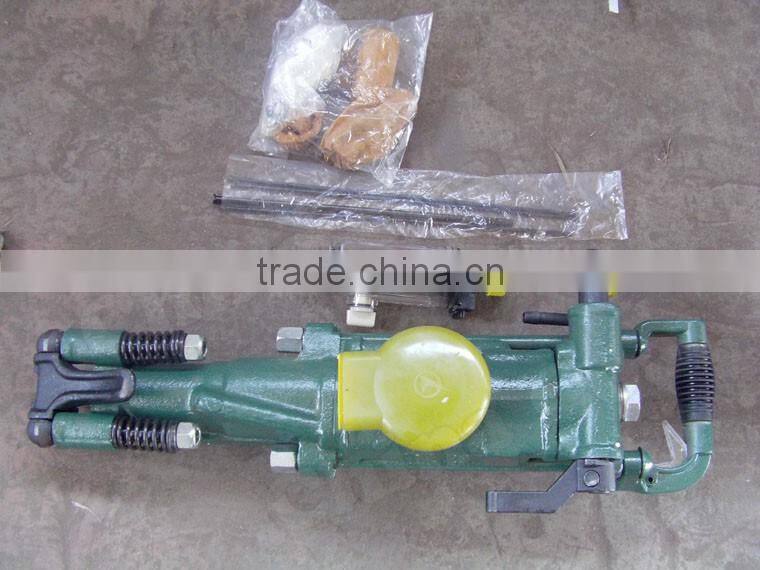

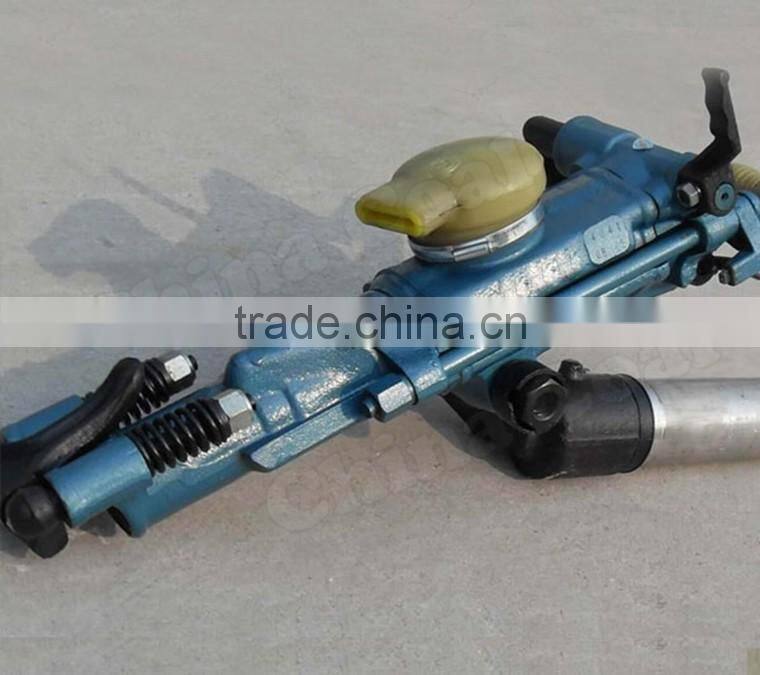

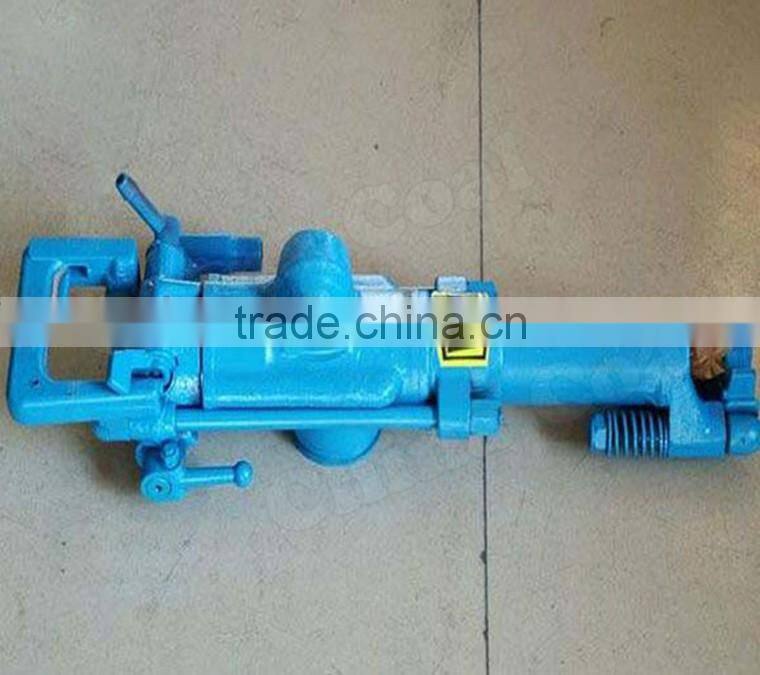

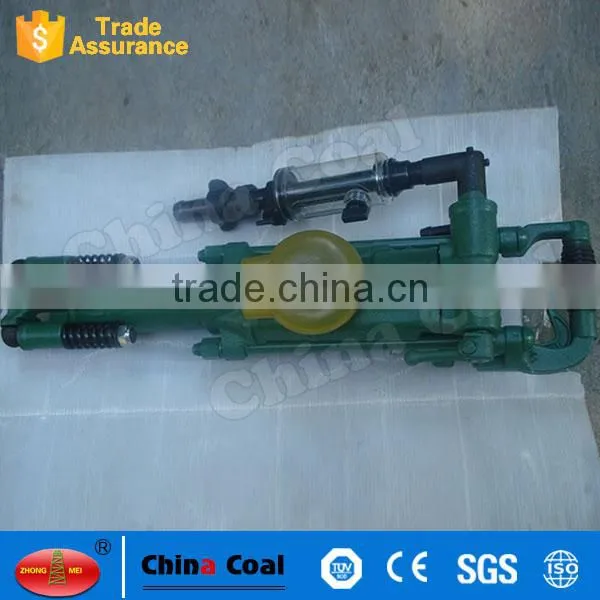

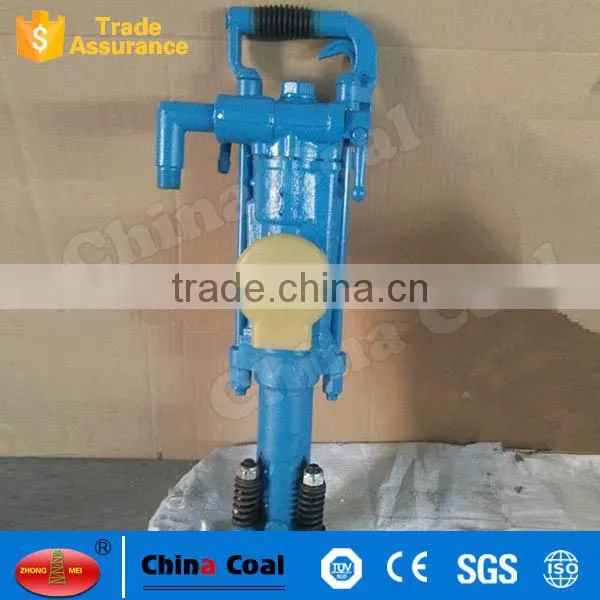

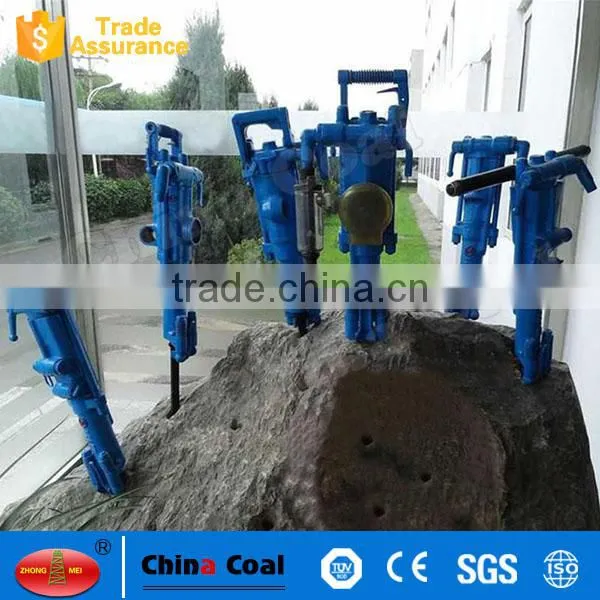

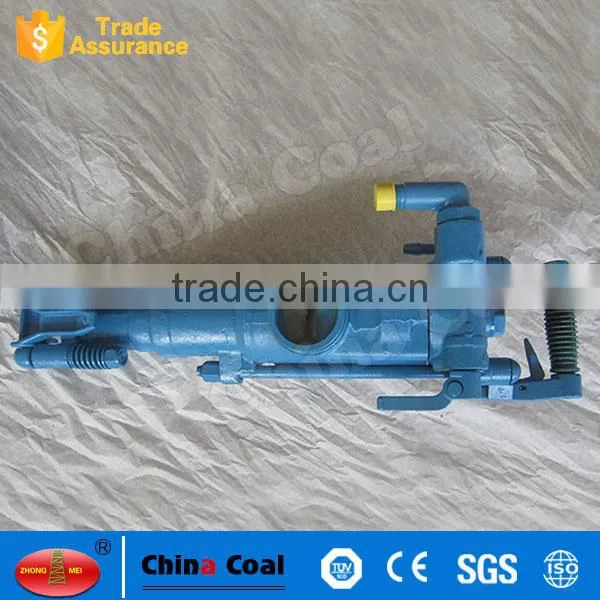

Images of Rock Drilling Equipment Quarry Stone Drilling Machine
