Product Introduction
YN27C gasoline power portable rock drilling machine
Product Name: YN27C gasoline power portable rock drilling machine
Company Name: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Specifications:
-YN27C petrol powered Internal Combustion Rock Drill
-Rock drill for drill hole, cleavage, bruising
-Max depth 6m
-Rock drill
YN27C Internal Combustion Rock Drill is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill. Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.
The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.
Main Parameter
Technical Parameters:
TECHNICAL SPECIFICATIONS | |
Weight of main machine | 27 kg |
Type of carburetor | Hand needle valve, no floating type |
Ignition system | Controllable silicon contactless system |
Displacement of engine piston | 185 cm3 |
Load Rotating speed of engine | ≥2450 r/min |
Idling rotating speed of drill rod | ≥200 r/min |
End of drill rod dimensions | Hexagonal 22x108 mm |
Max drilling depth | ≥6 m |
Tank capacity | ≥1.14 L |
Drilling speed | ≥250mm/min |
Mixture ratio of gasoline and lubricating oil(in volumes) | 9:1 |
Clearance of spark plug | 0.5-0.7 mm |
Note:
Our business scope: Y series rock drillings, G7 air rock jack hammer, G10 jack hammer, G19 jack hamemr, G20 jack hammer, YT series rock drillings with air leg, YT24 rock drilling machine, YT28 rock drills, YT29 rock drills, YN27c internal rock drills, electric coal drilling machine, coal drill rod, drill bit, drill rod with shank, etc.
Pls feel free to inquiry, the better quotation will be sent to you for your reference.

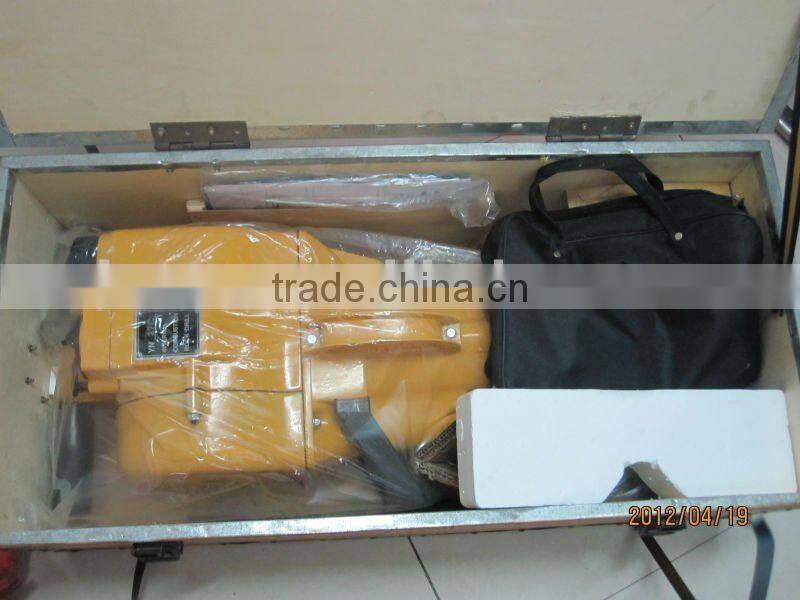

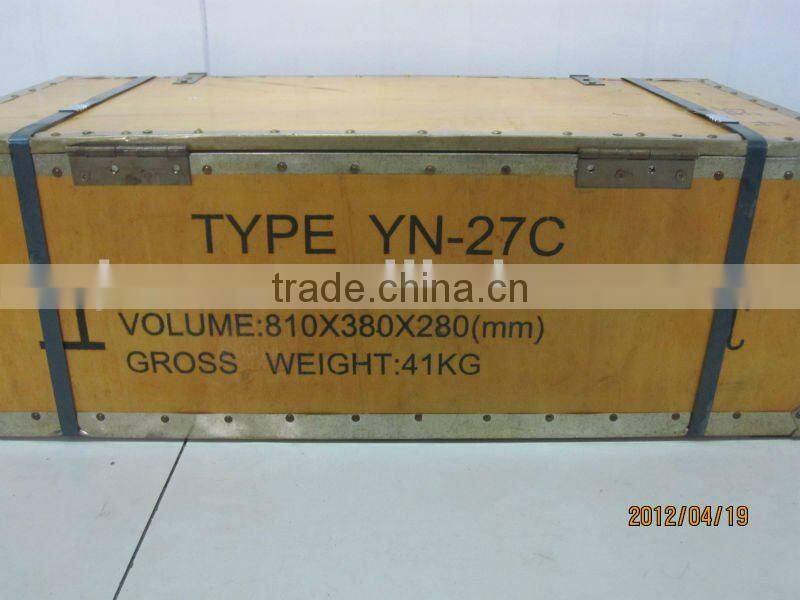

Figure Photos

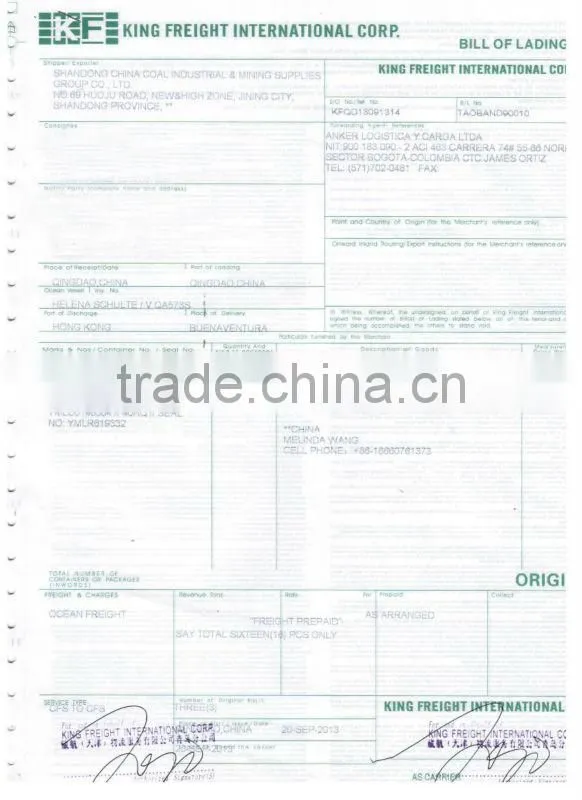

B/L of The History Trading
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s. With world-class production ability, specialized technical support, and valued service, our products have been exported to Australia, Russia, Colombia, Ukraine, Georgia, the United states, Southeast Asia and other more than 140 countries and regions.
