Introduction of mini hydraulic crawler excavator
1.Original imported Diesel engine, our ZM 18 Stronger Ability to Topography Mini Hydraulic Excavator For Sale meet the EURO III emission standand
2.Original hydraulic component; Hydraulic system based on load sensing technology, excellent running performance, gentle action only can make high accuracy
3.Turning radius quite short, the chasis luffing can be adjusted and the boom is deflectable,fit for safe working in narrow space.
4. Attached piping system are standard configuration, subsidiary device can be arranged easily
Main Parameter of mini hydraulic crawler excavator
| Model | ZM18 | ZM18(economic type) |
Function and parameter | Working weight (kg) | 1800 | 1800 |
Bucket capacity (m³) | 0.05 | 0.05 | |
Maximum bucket digging force (kn) | 15.2 | 12 | |
Tailless rotation | YES | NO | |
Swing arm reflection | YES | NO | |
Debus amplitude | YES | NO | |
Walking gear | Double speed | Single speed | |
Transportation length (mm) | 3572 | 3572 | |
Transportation width (mm) | 980/1300 | 1400 | |
Transportation height (mm) | 2356 | 2261 | |
Working range | Maximum digging depth (mm) | 2247 | 2247 |
Maximum digging radius (mm) | 4045 | 4045 | |
Maximum dumping clearance (mm) | 2452 | 2452 | |
Configure and structure | Engine model | kubota | laidong |
D1105 | 3800 | ||
Engine power (kw/rpm) | 14.2/2200 | 14.7/2200 | |
System pressure (Mpa) | 21 | 16 | |
Hydraulic system type | Load-sensitive | Throttling system | |
Hydraulic pump | Rexroth | Made in china | |
Structural style | Plunger piston | Wheel gear | |
Valve brand | WOLVOIL | Made in china | |
Swing type | Cycloid | Cycloid | |
Walking motor brand | BONFIGL | Made in china | |
Walking motor type | Plunger piston | Cycloid + reducer |

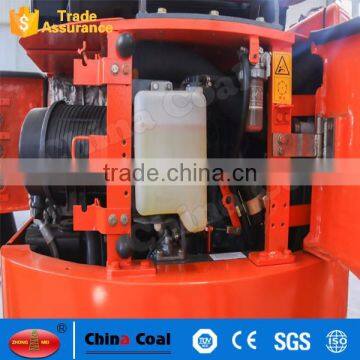

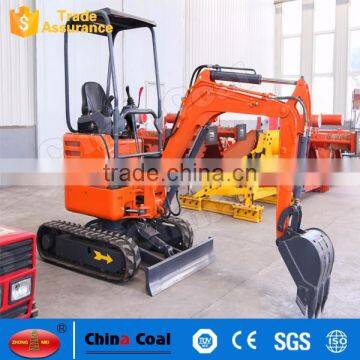

Figure Images of mini hydraulic crawler excavator
