160-450mm PE Pipe Production LineHeavy Extrusion Volumn
Modelized Temperature Control
Adopting Special Screw, good effect.

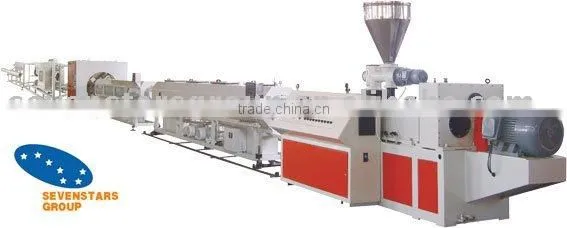

160-450mm PE Pipe Production Line
serial number |
Equipment name |
quantity |
1 |
Single screw extruder: SJ90×33 |
One Set |
2 |
Computer control system |
One set |
3 |
Automatic dry feeder |
One Set |
4 |
Mark line synchronize extrusion die head |
One Set |
5 |
Basic die |
One Set |
6 |
Exit die, core die |
One Set |
7 |
Single screw Mark line synchronize extruder SJ30×25 |
One Set |
8 |
Vacuum Shaping Tank |
Two Sets |
9 |
Calibration Sleeve |
Six Sets |
10 |
Vacuum airproof system |
One Set |
11 |
Pipe holding device |
One Set |
12 |
Spray cooling tank |
Two Sets |
13 |
Spray airproof system |
Two Sets |
14 |
Caterpillar Haul-off unit |
One Set |
15 |
Planet Cutter |
One Set |
16 |
Shelf |
One Set |
Suitable products' diameters: 160mm; 200mm; 250mm; 315mm; 400mm; 450mm (one pressure class, SDR21)
Single screw extruder: SJ90×33
Local brand Screw and Barrel
EUROTHERM gear speed reducer
Barrel: 38CrMoAlA,Nitrification process
Screw: 38CrMoAlA,Nitrification process
Temperature control system:RKC Controlling
Parameters:
Screw diameter: 90mm
L / D: 33:1
Motor power:160KW (DC motor)
Capacity of extrusion(Max): 450 kg/h(Capacity of production line can be effected by raw material, peripheral equipment and aperture of pipes)Gear speed reducer: High torque, low noise, specific gear speed reducer for twin screw extruder
Barrel heat belt: 38KW
Cooling method: 5×0.37KW Low noise blower
Computer control system(SIEMENS)
User friendly application, LCD screen
Sense touching screen
New generation programmable control system
Modulized temperature control
Estimate device for melt pressure and melt temperature
Hardware comes from SIEMENS Company
Mark line synchronize extrusion die head
Apply German technology
Quality alloy steel
Diameter range:160mm; 200mm; 250mm; 315mm; 400mm; 450mm.
Single screw Mark line synchronize extruder SJ30×25
Local brand Screw and Barrel
Barrel:38CrMoAlA, Nitrification process
Screw:38CrMoAlA, Nitrification process
Control system: RKC Temp-controller, Frequency conversion timing
Parameter:
Screw diameter: 30mm.
L / D: 25:1.
Motor power: 2.2 KW.
Vacuum Shaping Tank
Fast-adjusting device for vacuum degree
Electrical length-adjusting device (for the first tank)
Material:Stainless steel
Strong spray
Double shaping room
Parameter
Length: 5700mm
Vacuum rate: -0.01~-0.06 Mpa
Vacuum pump: 2×4 KW
Water pump: 2×5.5KW
Adjusting range of forward-and-back:: ±500 mm
Adjusting range of up-and-down: ±80 mm
Adjusting range of left-and-right: ±60 mm
Caterpillar haul-off Machine
Six caterpillars
Pipe length calculate device
Control type:Speed transducer
Parameter
Traction speed(Max):2.0 m/min
Motor power:5.5KW
Effective haul length:1500mm
Max Traction strength:25,000N
Planetary Cutter
PLC control, planetary cutting, hydraulic pressure control blade movement
Pneumatic holding device
Quality alloy steel blade
Parameter
Motor power:3.0KW
Saw blade:180mm
Max cutting thickness:45mm
