Help CenterPp-r Production Line (75-160)
Related Products
Specifications
1.adopts the high efficiency spiral pole ectrude machine made by out company .2.high speed and high efficiency plasticized.
SJ-75 production line for plastic pipe productons
Range of pipes diameter;Φ75——Φ160mm
The length of this production line; about30mm
Equipment list
serial number |
Equipment name |
quantity |
Price |
1 |
SJSZ—75/33 single screw extruder |
one |
|
2 |
Vacuum tank |
one |
|
3 |
Three claw haul—offs |
one |
|
4 |
Planetary cutting off machine |
one |
|
5 |
Piling stocker |
one |
|
6 |
Mold |
one |
|
7 |
Auxiliry machine |
one |
|

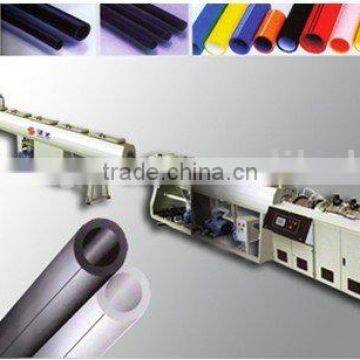

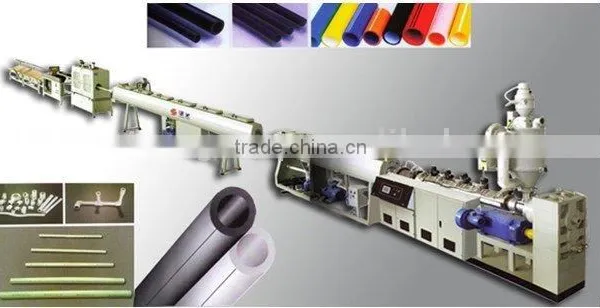

above the picture just for reference ..
all is as our final fixed configuration .
the follow is the detailed reference parameter for the main extruder
SJ—75/33 single screw extruder
(1)Diameter of the screw;Φ75mm
(2)Slenderness ration33;1
(3)Material of sylinder andscrew;38CrMoALA nitrided
(4)Power;75kw
(5)Speed controller with inverter
(6)Capacity of out put;150-250kg/h
(7)Number of barrel heating and power;4X4kw
(8)Power of cooling;4X0.18kw
(9)Speed reduction gear box;ZLYJ—250 exclusive use for extruder
