1.Plastic pelletizing machine
2.Plastic granulating machine
3.Plastic granulator
4. plastic pelletizer
1. Feature and Function of plastic pelletizing granulating machine/plastic granulator/plastic pelletizer :
This pelletizing line,recycling PP PE PET PVC, film ,bags, flakes, make them into pellets.
2. Process flow of plastic pelletizing granulating machine/plastic granulator/plastic pelletizer:
Conveyor→ raw material compactor(feeder)→ Extruding system→ Die-head and High speed Net exchanging system→
water ring pelletizing system/noodle type pelletizing system→ dewatering machine→ vibrating sieve→ Air Blower → Storage hopper
3. Detailed description of plastic pelletizing granulating machine/plastic granulator/plastic pelletizer :
1. Conveyor:convey PP PE pet pvc eva film or flakes into compactor/feeder.
2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5.water ring pelletizingsystem : cutting pellets in water.
6. noodle type pelletizing system :cutting cooling pellets after water tank .
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
4. Thecnical parameters of plastic pelletizing granulating machine/plastic granulator/plastic pelletizer :
Model |
L/D |
Output |
Speed of Screw Rotation |
Power |
Center Height |
SJ-50/33 |
33:1 |
20-80 kg/h |
12.5-130 r/min |
37kw |
1000 mm |
SJ-65/33 |
33:1 |
80-150 kg/h |
33-130 r/min 20-120r/min |
45kw |
1000 mm |
SJ-75/33 |
33:1 |
120-280 kg/h |
20-120 r/min |
55kw |
1000 mm |
SJ-90/33 |
33:1 |
150-450 kg/h |
33.3-110 r/min |
75kw |
1000 mm |
SJ-120/33 |
33:1 |
300-600 kg/h |
20-100 r/min |
90kw |
1200 mm |
SJ-150/33 |
33:1 |
450-700 kg/h |
7-80 r/min |
110kw |
1200 mm |
SJ-180/33 |
33:1 |
600-800kg/h |
7-80 r /min |
185kw |
1200 mm |
SJ-200/33 |
33:1 |
800-1000kg/h | 7-80 r/min |
260kw | 1200 mm |
SJ series double-stage pe pp plasic film granulator machine | ||||||||||
Model |
SJ-100/100 |
SJ-120/120 |
SJ-150/150 |
SJ-200/200 |
||||||
Screw Dia. |
100 |
120 |
150 |
200 |
||||||
L/D |
28-30 10-15 |
28-30 10-15 |
28-30 10-15 |
28-30 10-5 |
||||||
Capacity |
120-180kg/h |
220-300kg/h |
300-400kg/h |
500-600kg/h |
||||||
SJ series single stage pe pp film compactor-granulator machine(with agglomerator) | |||||
Model |
ZL-85 |
ZL-100 |
ZL-130 |
ZL-160 |
ZL-180 |
Screw Dia. (mm) |
85 |
100 |
130 |
160 |
180 |
L/D Ratio |
25-42 |
25-42 |
25-33 |
25-33 |
25-33 |
Output (kg/hr) |
120-180 |
250-350 |
400-500 |
550-700 |
800-1000 |
SJ series double- stage pe pp film compactor-granulator machine(with agglomerator) | |||||
Model |
ZL-85/85 |
ZL-100/100 |
ZL-130/130 |
ZL-160/160 |
ZL-180/180 |
Screw Dia. (mm) |
85 |
100 |
130 |
160 |
180 |
L/D Ratio |
25-42 |
25-42 |
25-33 |
25-33 |
25-33 |
Output (kg/hr) |
120-180 |
250-350 |
400-500 |
550-700 |
800-1000 |
5. Photo of plastic pelletizing granulating machine/plastic granulator/plastic pelletizer:

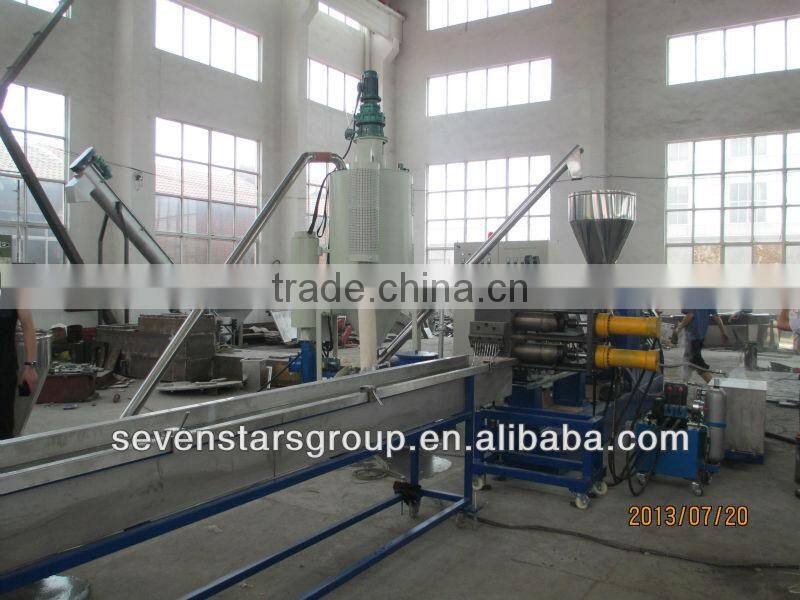

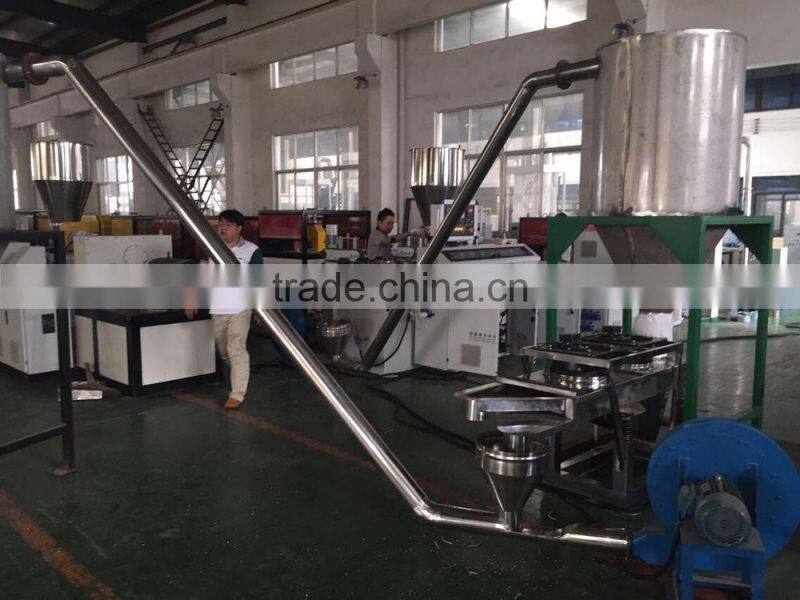

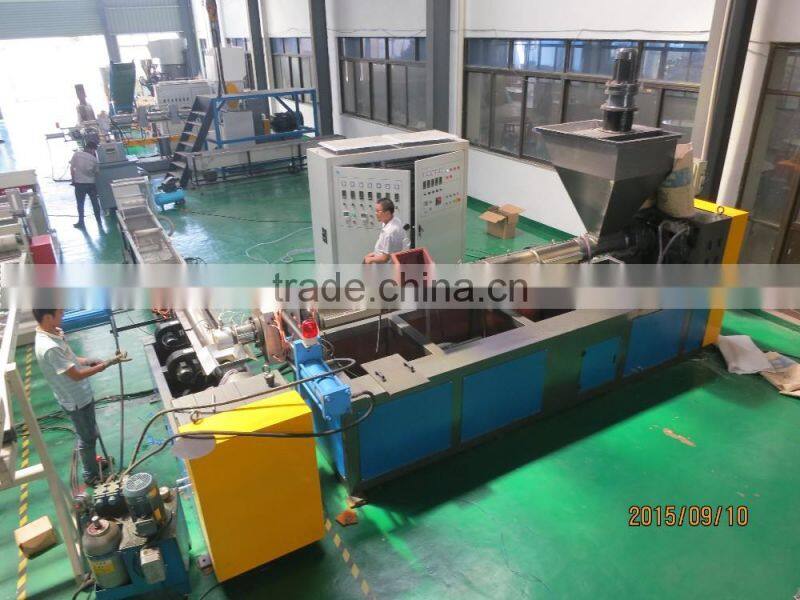

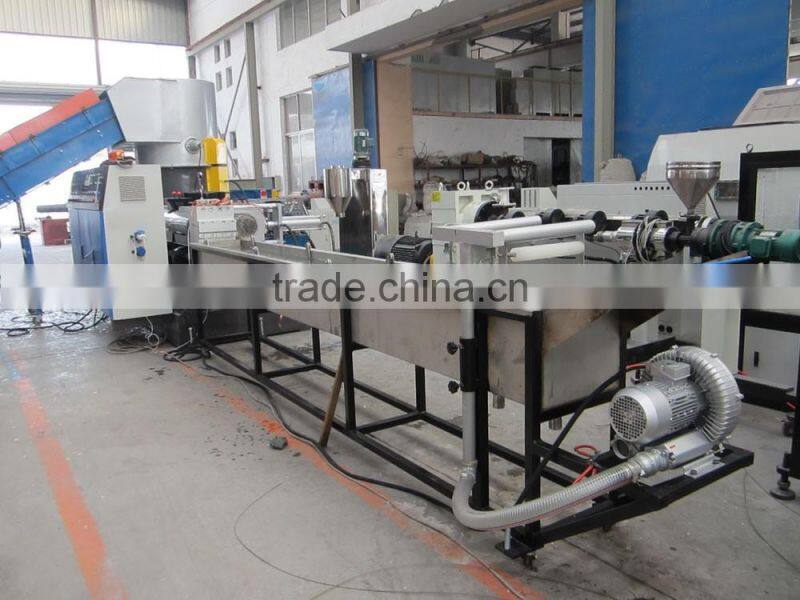

this kind is for clean pp pe film/bag granulating/pelletizing

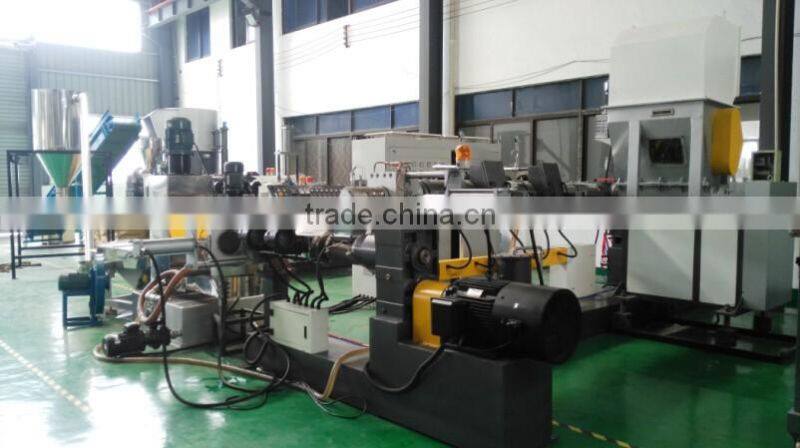

this kind is for pp pe film/bag granulating/pelletizing

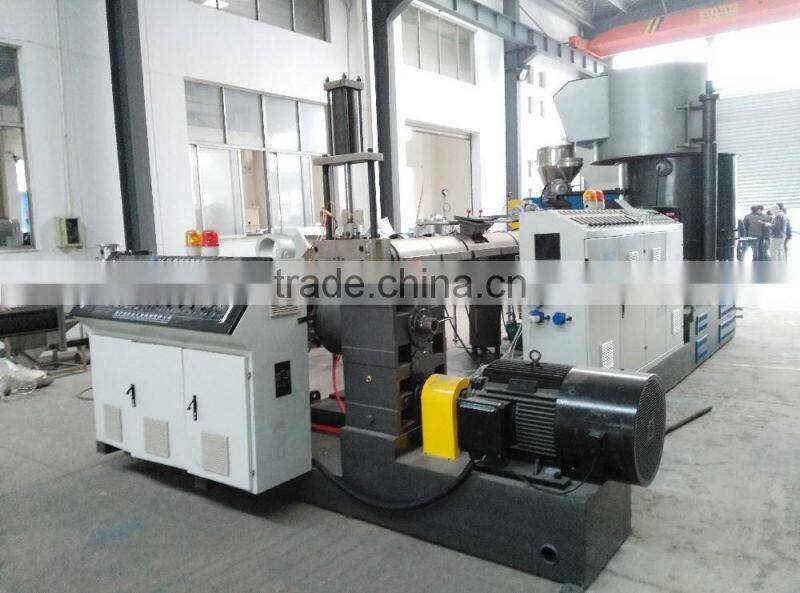

this kind is for Crushed pp pe flakes granulating / pelletizing
this kind is for recycled pp pe flakes granulating / pelletizing ;
this kind is for pp pe flakes especialy for high viscosity PP granulating / pelletizing :
pvc pelletizing machine
pet pelletizing line
water ring type granulating / pelletizing system (good pellet shape):

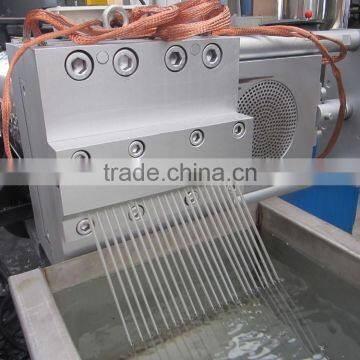

noodle type granulating die head( for pp pc pet lldpe etc ):

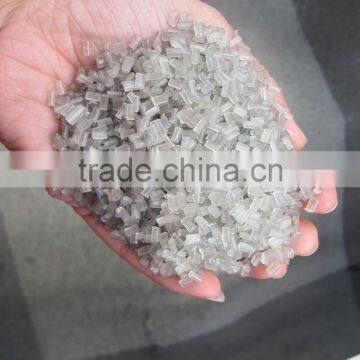

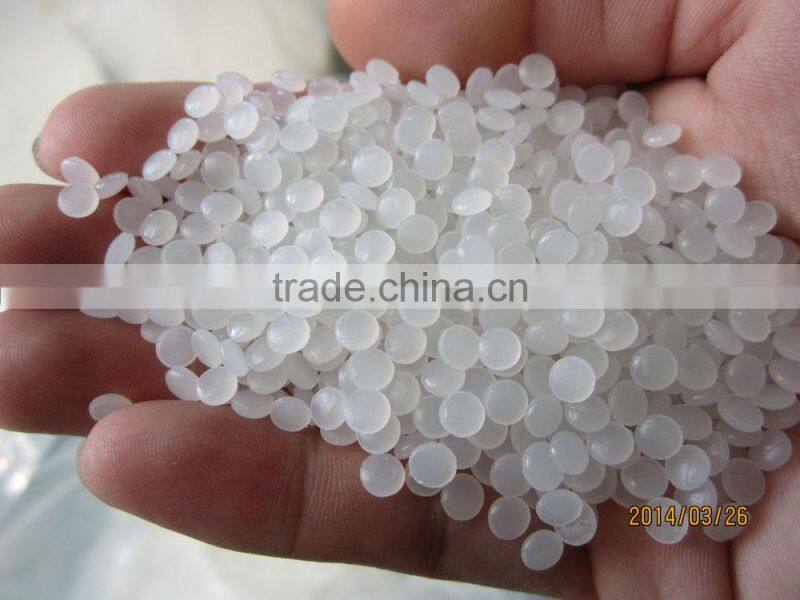

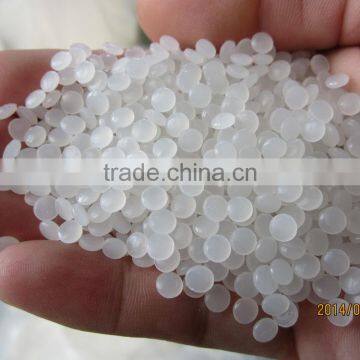

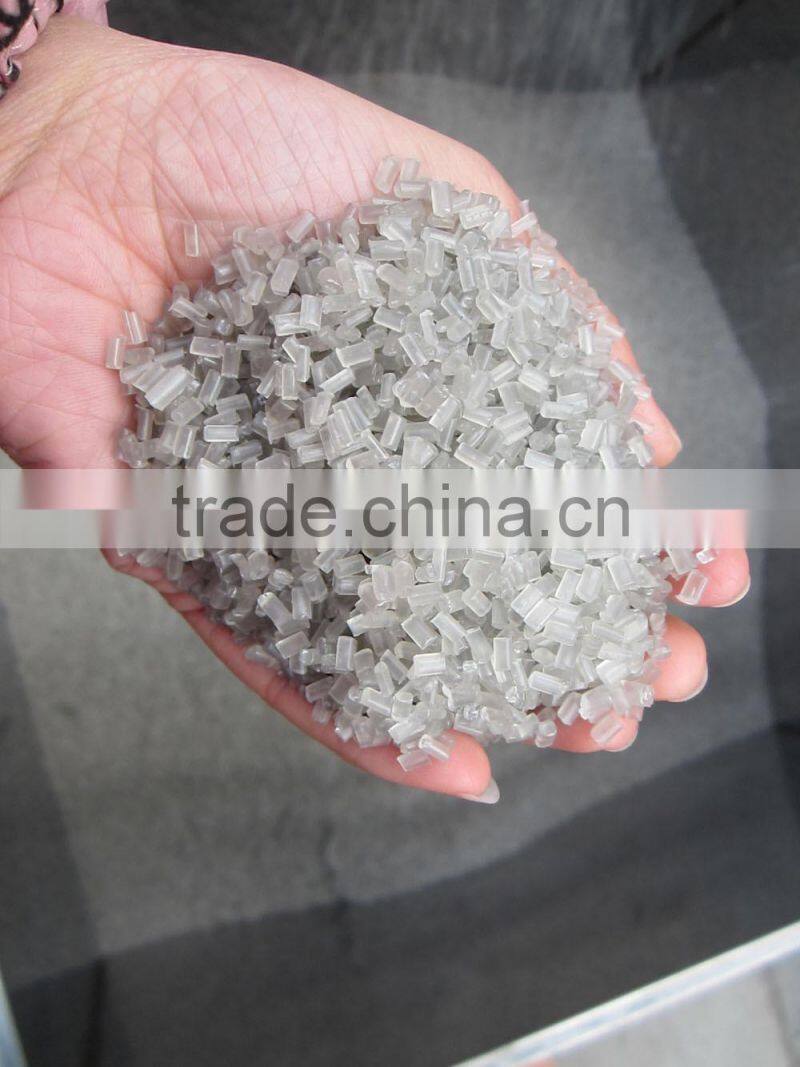

plastic granulate :

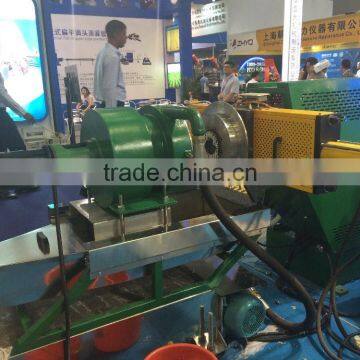

exhibition :
Please contact me for many kinds not mentioned........
My mobile is 008618110596875 with whatsapp ,viber and wechat.
