Specifications
pellet production plant1.High output:200-1000kg/h
2.CE & ISO
3.Low consumption
4.Suitable for PP PE film
pellet production plant/pellet granulator/wood pellet granulator :
Feature and Function of pellet production plant :
This pelletizing line,recycling PP PE film ,bags, flakes, make them into pellets.
Process flow of pellet production plant :
Conveyor→ raw material compactor(feeder)→ Extruding system→ Die-head and High speed Net exchanging system→ water ring pelletizing system/noodle type pelletizing system→ dewatering machine→ vibrating sieve→ Air Blower → Storage hopper
Detailed description of pellet production plant :
1. Conveyor:convey PP PE film or flakes into compactor/feeder.
2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5.water ring pelletizingsystem : cutting pellets in water.
6. noodle type pelletizing system :cutting cooling pellets after water tank .
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
Main technical data of pellet production plant :
Extruder |
SJ90 | SJ120 |
SJ150 |
SJ180 |
Main Motor Power |
55KW | 75kw |
110kw |
185kw |
Production capacity |
150KG/H | 150-250kg/h |
300-400kg/h |
450-800kg/h |

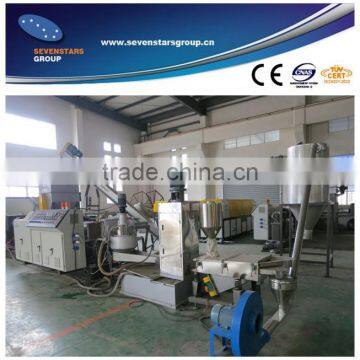

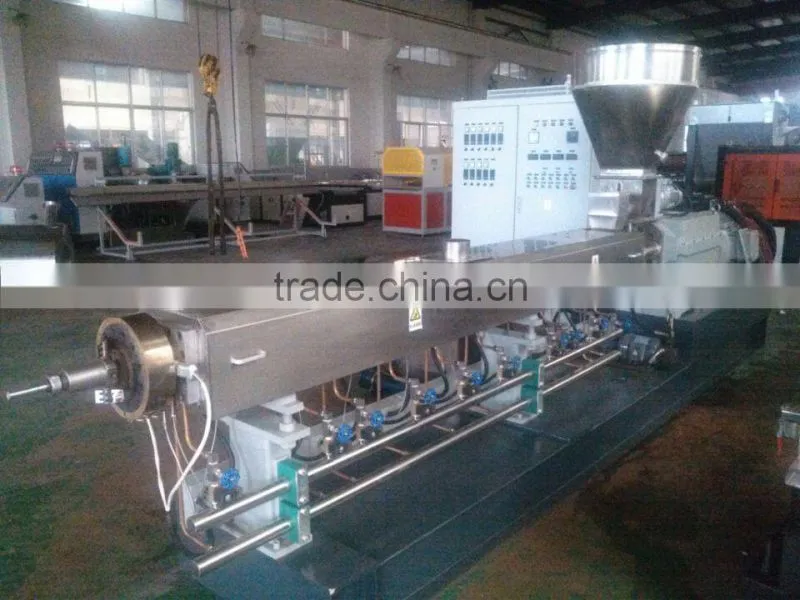

Photo of pellet production plant :
this kind is for pp pe film pelletizing
this kind is for pp pe flakes pelletizing:
this kind is for pp pe flakes pelletizing:
this kind is for dirty pp pe flakes pelletizing;
this kind is for pp pe flakes especialy for high viscosity PP pelletizing:
water ring type pelletizing system (good pellet shape):
noodle type pelltizing die head(low cost):
wood pellet making machine
plastic pellet:
factory certificate:
Frequently asked questions:
1.Are you manufacturer or trading company?
Answer :we are manufacturer,all the machine ,we make it ourself to reduce the cost of our customer.
2.The quality of the machine is good?
Answer:All the machines are manufactured with high quality, we choose our material very strict,
all the material come to our factory must pass the test
substandard goods are returned to the supplier.
3.Why the price of your machine is higher than others?
Answe:That is a frequent question,we take strong attention to every detail in the manufacturing process,
the quality control in our factory is very strict,
all defective semi-manufactures must be treated again or reject. all the machine must be checked out ,
then deivered to our customer.
all about that pushing up the price, what we want to do is give our customer a good quality product
with stable working and long lived.
