Pellet manufacturing plant
- 50 Set / Sets per Month
- shanghai
- T/T D/P D/A Credit Card PayPal
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Sevenstar | Model Number: | pelletizer |
Voltage: | depend on request | Dimension(L*W*H): | depend on | Weight: | depend |
Certification: | CE ISO9001 | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description
Specifications
pellet manufacturing plant1.High output:200-1000kg/h
2.CE & ISO
3.Low consumption
4.Suitable for PP PE film
Pellet manufacturing equipment /machine/line:
Feature and Function of Pellet manufacturing machine :
This pelletizing line,recycling PP PE film ,bags, flakes, make them into pellets.
Process flow of Pellet manufacturing plant :
Conveyor→ raw material compactor(feeder)→ Extruding system→ Die-head and High speed Net exchanging system→ water ring pelletizing system/noodle type pelletizing system→ dewatering machine→ vibrating sieve→ Air Blower → Storage hopper
Detailed description of pellet manufacturing plant :
1. Conveyor:convey PP PE film or flakes into compactor/feeder.
2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5.water ring pelletizingsystem : cutting pellets in water.
6. noodle type pelletizing system : cutting cooling pellets after water tank .
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
Main technical data of pellet manufacturing plant :
Extruder | SJ90 | SJ120 | SJ150 | SJ180 |
Main Motor Power | 55KW | 75kw | 110kw | 185kw |
Production capacity | 150KG/H | 150-250kg/h | 300-400kg/h | 450-800kg/h |

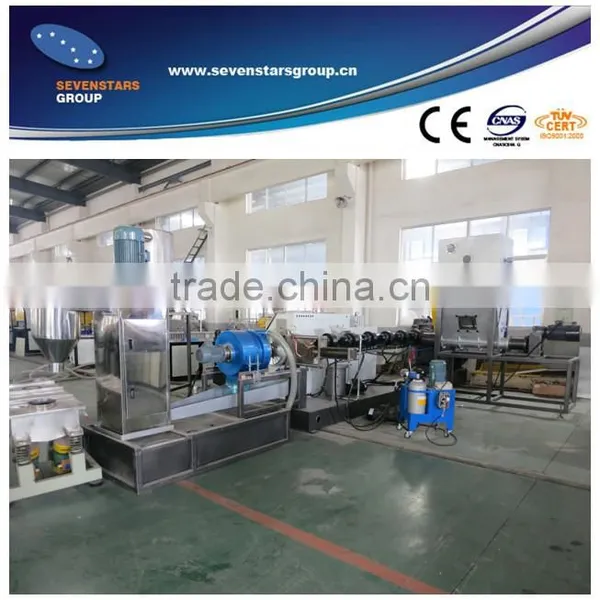

Photo of pellet manufacturing plant :
this kind is for pp pe film pelletizing
this kind is for pp pe flakes pelletizing
this kind is for pp pe flakes pelletizing
this kind is for dirty pp pe flakes pelletizing
this kind is for pp pe flakes especialy for PP pelletizing
many others not mentioned........
