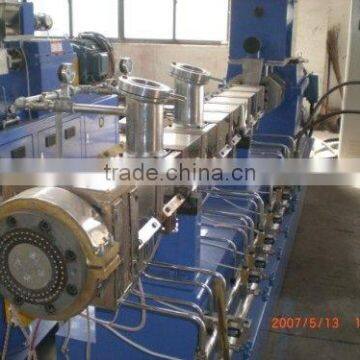

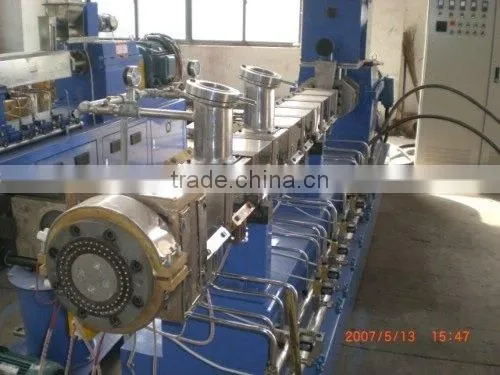

Help CenterPlastic Extruder(co-rotating Twin-screw Extruder)
Related Products
Specifications
Building block type screw and barrel have the advantages of multi combination, wider applications. By changing the small quantitFeatures:
1.The barrels can be changed in accordance with the processing requirement .The building block type barrels enable more precise processing. The temperature of every barrel can be individually set.
2.The surface of the barrel has been special treated for more wearable and anticorrosive so that the barrels can suitable for different raw materials.High quality and stable gear distribution transmitting system The system is designed with high torque, the gears are high precisely processed. With the reasonable oil immersion device and the force lubrication system and the chain protection device enable the extruder can be smoothly and stably running. From the very limited space,
3. Optional separate controlling unit, analogue panel display, PLC system, PEC system controlling. Low vibration, low noise. The machine can be installed easily on the flat ground.
Main technical parameters of TSSK series co-rotating twin-screw extruder (normal)
Model |
TSSK-20 |
TSSK-30 |
TSSK-35 |
TSSK-50 |
TSSK-65 |
TSSK-72 |
TSSK-92 |
Screw diameter(mm) |
21.7 |
30 |
35.6 |
50.5 |
62.4 |
71.2 |
91 |
Rotary speed(rpm) |
600 |
400 |
400/600 |
500/600 |
400/500 |
400/500 |
400/500 |
Main motor power(kw) |
4 |
11 |
11/15 |
37/45 |
55/75 |
90/110 |
220/250 |
L/D(L/D) |
32-40 |
28-48 |
32-48 |
32-48 |
32-48 |
32-48 |
32-40 |
Capacity(kg/h) |
2-10 |
5-30 |
10-80 |
20-150 |
100-300 |
300-600 |
600-1000 |
Technical parameter of TSSK series co-rotating twin- screw extruder (high torque)
Model |
30 |
40 |
52 |
65 |
75 |
95 |
Screw diameter(mm) |
30 |
41 |
51.4 |
62.4 |
71 |
93 |
Rotary speed(rpm) |
600 |
600 |
500 |
400 |
400 |
400 |
Main motor power(kw) |
18.5 |
45 |
75 |
110 |
160 |
350 |
L/D(L/D) |
28-40 |
28-48 |
28-48 |
28-48 |
28-48 |
28-40 |
Capacity(kg/h) |
55-90 |
135-225 |
225-375 |
330-550 |
480-800 |
1050-1750 |
