High Qanlity Plastic Mixer
- 5 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A
- Good price industrial small vertical plastic granules color mixer supplier
- Good price 304 stainless steel horizontal food powder mixer supplier
- Good Price Vertical Screw Type Plastic Drying Mixing Machine Mixer with Dryer
- Good Price Plastic Material batch Mixer Gravimetric Blender Machine Supplier
- Industrial Double Screw Metering Mixer Volumetric Doser
- 500 kg capacity mixer/ vertical plastic granules mixer
Product Details
Condition: | New | Application: | plastic mixing | Automatic Grade: | Automatic |
Production Capacity: | 100% for PVC Mixer | Place of Origin: | Jiangsu, China | Brand Name: | SEVENSTARS |
Model Number: | SRL-Z for Mixer | Voltage: | 380V 50HZ or customerized | Power(W): | 22-110KW |
Dimension(L*W*H): | according to different capacity | Weight: | 2000-10000KG for different capacity machine | Certification: | CE SGS |
Warranty: | 15 months for Mixer | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Mixer1.Mixing fast
2.Large volume
3.stable output
4.best price and quality
Mixer:
Mixer Machine Function:
SRL-Z series high speed mixer is used for mixing of coloring for blending PVC resin with other additives,like lubricant,stabilizer etc.
This units combines hot mix and cooling mix together .After heat mixing, the material can get into cold mix automatically and exhausts remaining gasses and avoids agglomerates.
The features of mechnical parts:
Pot body adopt δ5mmSUS304 stainless steel which has very good smooth and rigid surface with features of wearable, corrosion resisting,heat risisting, no-stick with raw material
Hot mixer conver material adopt ZL102 casting aluminium with polished surface
Hot and cooling mixer open adopt cyclinder pneumatic drive; the main shaft of hot and cold mixer adopt NSK brand which has features of reliable stable working performance.
Hot and cooling sealing adopt silicon rubber sealing with reliable sealing effect and not deformation even at high temperature.
Mixer stir blade must strictly pass dynamic balance testing which can low running noise and improve use lifespan.
Main Technical Parameter
Model/specs | SRL-Z100/200 Hot mixing/cold mixing | SRL-Z200/500 Hot mixing/cold mixing | SRL-Z300/600 Hot mixing/cold mixing | SRL-Z500/1000 Hot mixing/cold mixing | SRL-Z800/1600 Hot mixing/cold mixing |
Total cubage(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective cubbage(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
Mixed speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
Heating & cooling manner | electric heating self-friction/water cooling | ||||
Mixed time | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Motor Power | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
Dimension(L×W×H)(mm) | 1950×1600×1800 | 4580×2240×2470 | 4800×2640×2480 | 4600×3000×4050 | 5170×3200×4480 |
Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |

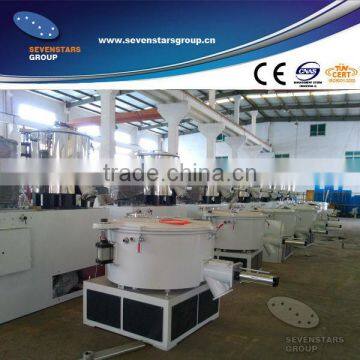

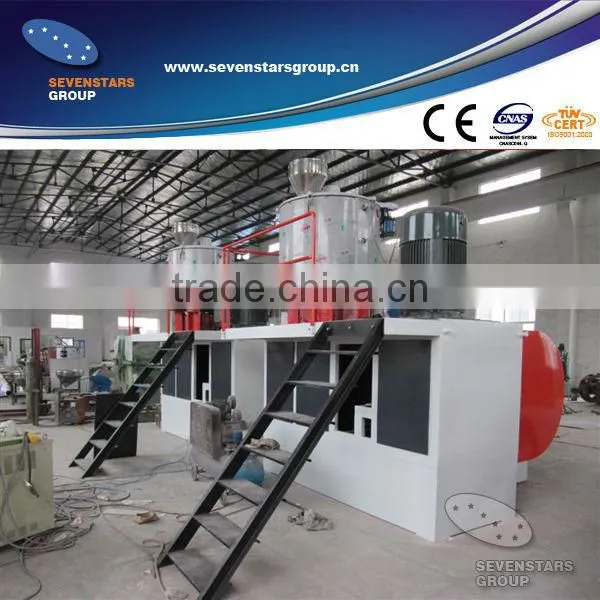

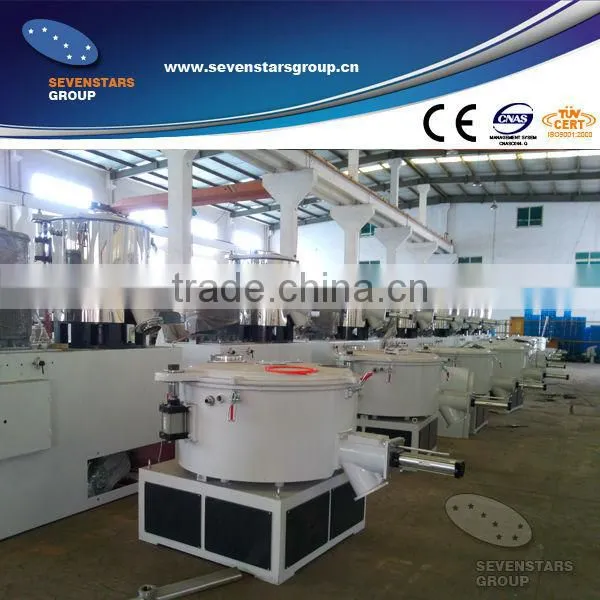

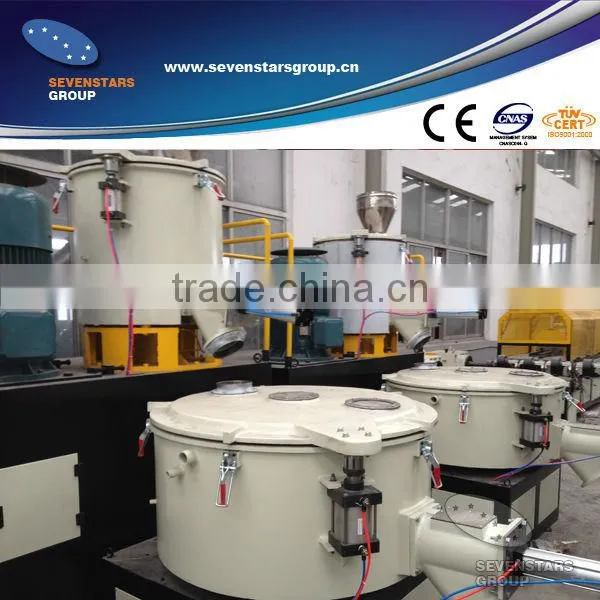

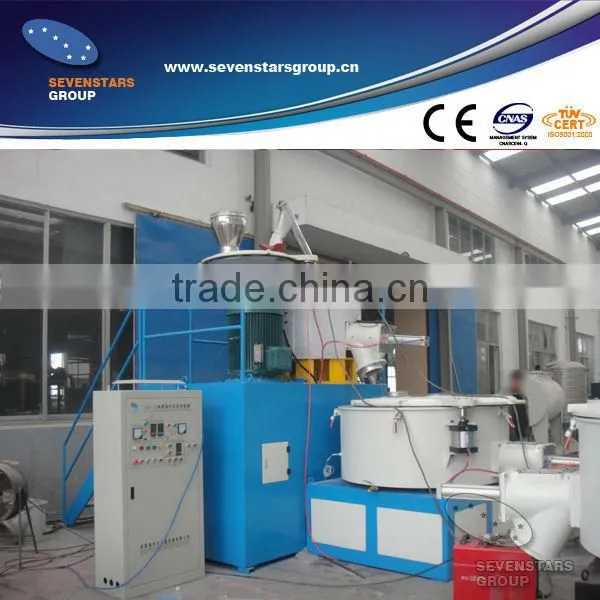

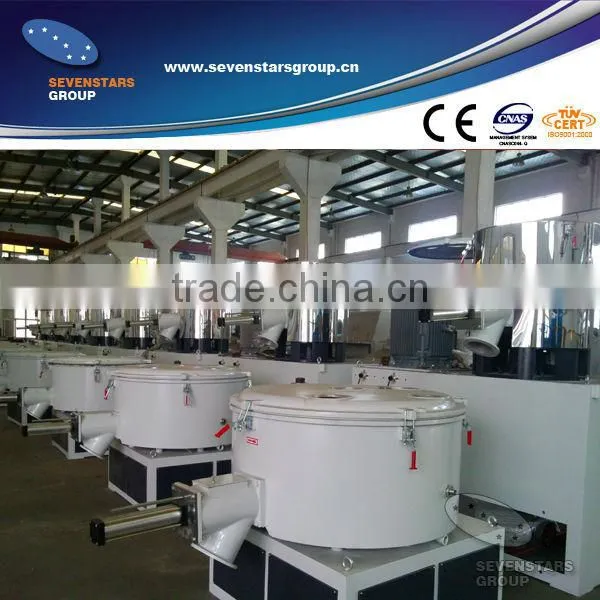

Reference pictures:
