PVC PP PE Grinding Machine

PVC PP PE Grinding Machine thumbnail-1
PVC PP PE Grinding Machine photo-1
US$ 5,000 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SEVENSTARS
Contact Supplier Request Quote Chat Now
Zhangjiagang Sevenstars Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name SEVENSTARS
Model Number MF for pulverizer
Use Other, pvc pp pe grinding machine
Plastic Type PVC
Power 20-50kw
Capacity 100% for grinding machine
Voltage customerized
Dimension(L*W*H) depand on the capacity
Weight according to the output
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

grinding machine
1.suitable for PP/PE/PVC/ABS
2.High output and high quality
3.powder mesh:10-100mesh

grinding machine :



General description:

1. Widely used in plastic/mine/chemical/metallurgy for mill, especially for callback granule of PP ,PE and PVC plastic.
 2. After the proof from the practice factory, the unit can maintain the target in the side of physics and chemical features when adding 20% to 30% power.
 3. It is the best unit for plastic factory to solution water and save



 Main parameters:

MODEL

MF-200

MF-380

MF-450

MF-500

MF-600

MF-800

BLADE DISK DIAMETER

200

380MM

450MM

500MM

600MM

800MM

LADE DISK QUANTITY

2PCS

2PCS

2PCS

2PCS

2PCS

2PCS

ROUND SPEED

4500RPM

4500RPM

4500RPM

4500RPM

4200RPM

3700RPM

POWER

MAIN MOTOR

11KW

30KW

30KW

37KW

37KW

45KW

BLOWER

2.2KW

 3KW

4KW

3KW

4KW

5.5KW

SHAKER SIZE

600MM

800MM

800MM

800MM

1000MM

1200MM

OUTPUT SIZE

10-100 MESH
140μm-1400μm

10-100 MESH
140μm-1400μm

10-100 MESH
140μm-1400μm

10-100 MESH
140μm-1400μm

10-100 MESH
140μm-1400μm

10-100 MESH
140μm-1400μm

COOLING TYPE

AIR AND WATER

AIR AND WATER

AIR AND WATER

AIR AND WATER

AIR AND WATER

AIR AND WATER

OUTPUT CAPACITY
 ( FOR 30MESH)

PVC: 100kg

PVC: 200kg

PVC: 250kg

PVC: 250kg

PVC: 350kg

PVC: 500kg

P  E: 50kg

P  E: 150kg

P  E: 180kg

P  E: 200kg

P  E:250kg

P  E: 300kg

P P:30kg

P P:70kg

P  P: 80kg

P  P: 100kg

P  P: 160kg

P  P: 200kg

DIMENSION (MM)

2000x1700x2000

2500x2000x3000

2600x2100x3000

2600x2100x3000

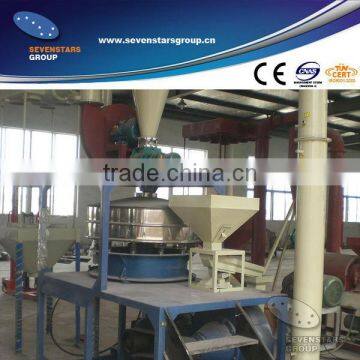

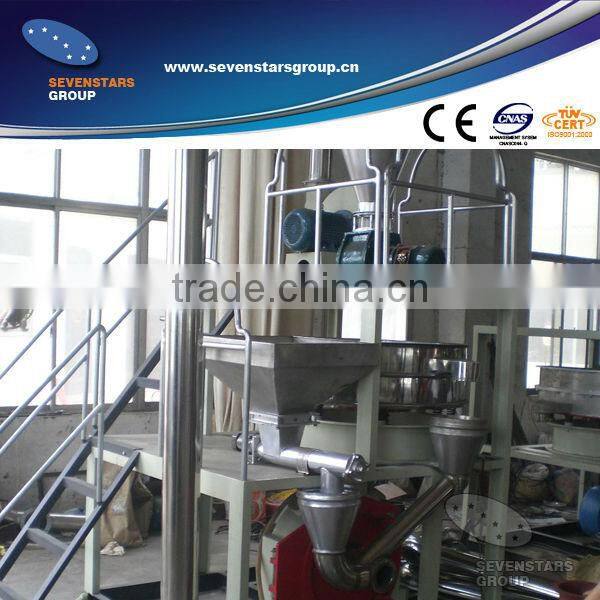

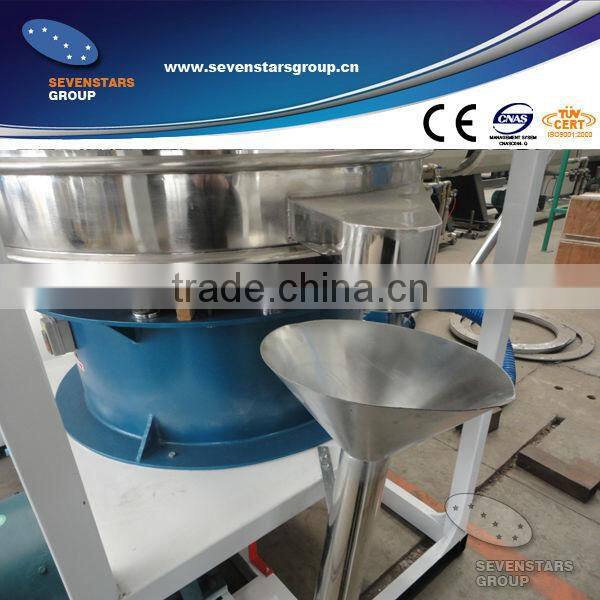

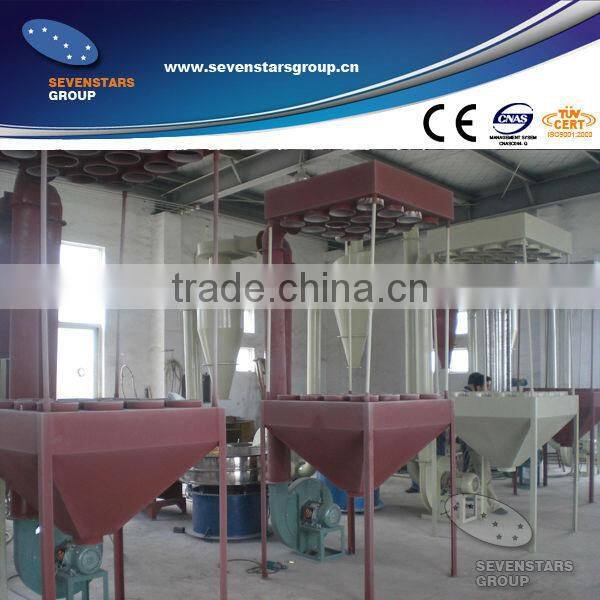

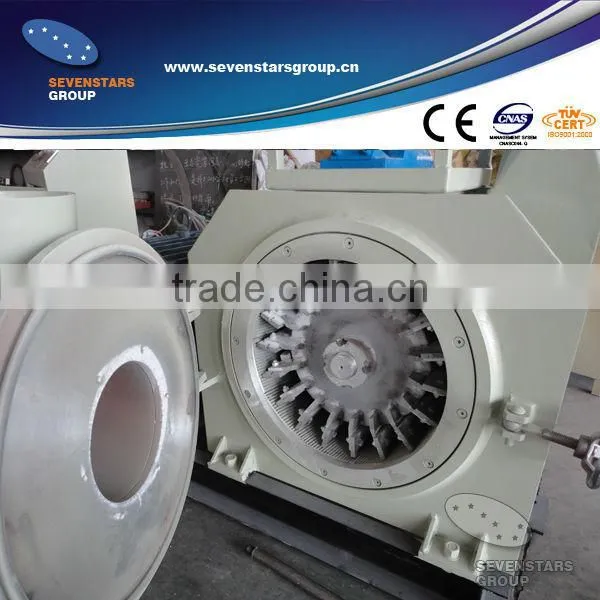

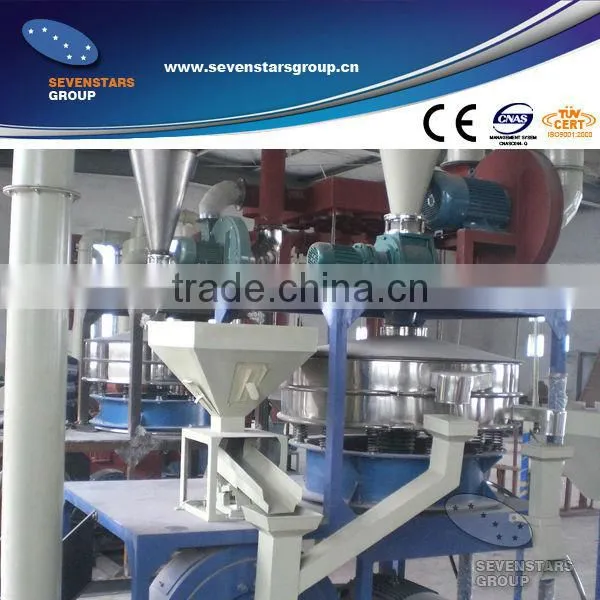

Reference pictures:



PVC PP PE grinding machinePVC PP PE grinding machinePVC PP PE grinding machinePVC PP PE grinding machinePVC PP PE grinding machine



PVC PP PE grinding machinePVC PP PE grinding machinePVC PP PE grinding machine
