PVC Horizontal PVC Mixer

Name: PVC Horizontal PVC Mixer
Brand: Senvenstars
SKU: 141033932
Availability: InStock

Zhangjiagang Sevenstars Machinery Co., Ltd.

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

PVC/various materials mixing colouring drying

Automatic Grade:

Automatic

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application PVC/various materials mixing colouring drying

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name Senvenstars

Model Number BDX SRL

Voltage 380V or customized

Power(W) 7.5-37kw

Weight 3.5-18T

Certification CE ISO

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

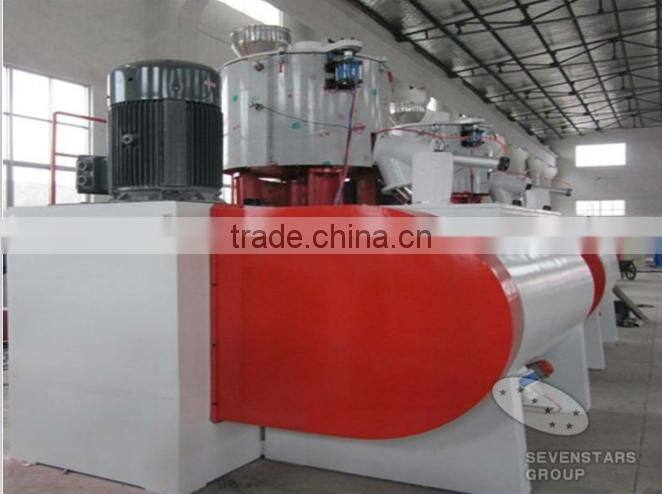

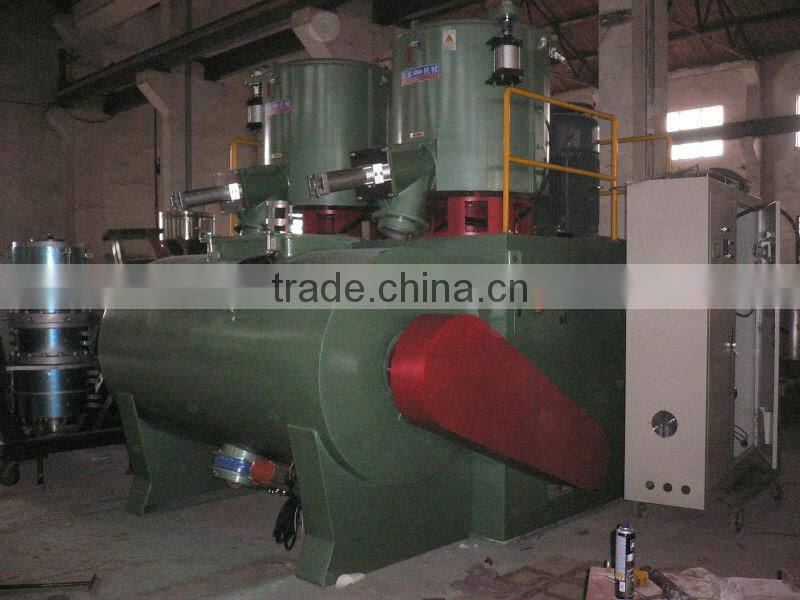

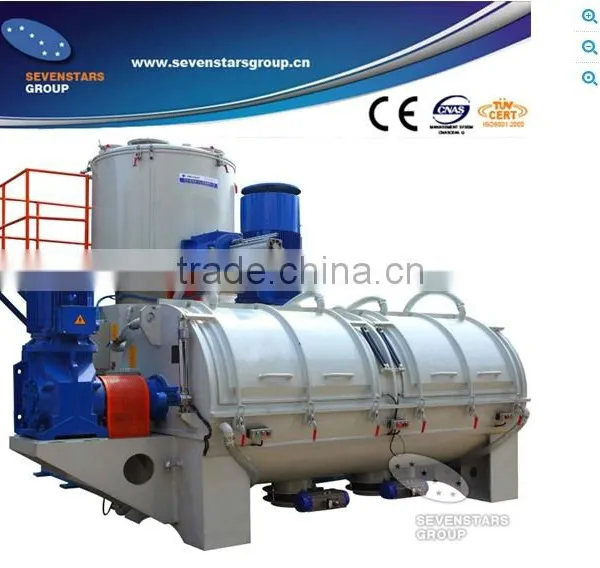

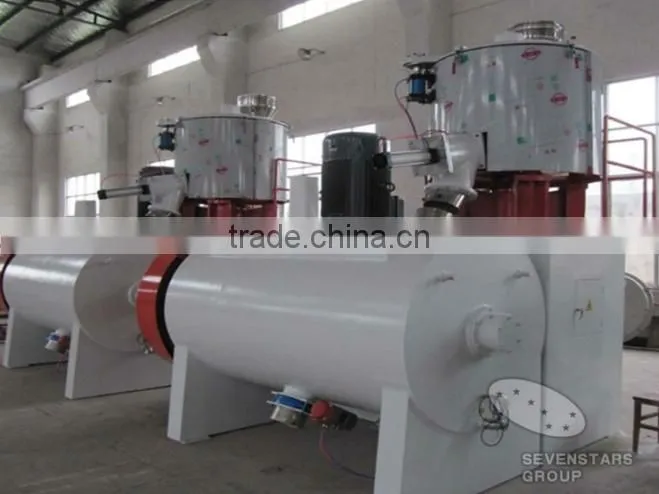

PVC horizontal PVC mixer
composed of horizontal cooling mixer and high speed mixer
high capacity
resonable price

PVC horizontal PVC mixer :

Application & Apply Range

1. It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe.

2. It is heating mixing has self-friction electric heating

3. Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming

4. It has features of contact construction, good performance

5. They have passed the test of dynamic balance and static equilibrium

Horizontal type of cooling mixer parameter
Parameter /model	SRL-w200 /500	SRL-w300 /600	SRL-w500 /1000	SRL-w500 /1600	SRL-w800 /2000	SRL-w800 /2500	SRL-w1000 /3500	SRL-w800×2 /4000
Total volume(L)	200/500	300/600	500/1000	500/1600	800/2000	800/2500	1000/3500	1600/4000
Effective volume(L)	150/320	225/384	375/660	375/1024	560/1280	560/1600	750/2240	1120/2550
Capacity (kg/h)	370-400	550-600	800-1000	800-1000	1300-1500	1300-1500	1800-2000	2600-3000
Oar speed(rpm)	490/980/70	480/964/70	441/886/60	441/886/51	330/660/51	330/660/51	330/660/51	330/660/51
Motor (Kw)	30/42/7.5	40/55/11	47/67/1.5	47/67/18.5	83/110/18.5	83/110/22	110/150/30	83/110×2/37
Heating &cooling	Self-friction/water
discharge	pneumatic
weight(T)	3.5	3.8	7.8	8.5	10.5	11	12	18
