High Spead Pvc Hot Mixer
- Shanghai
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Application | Plastic powder /PVC mixer | |
| Automatic Grade | Automatic | Production Capacity | 300-1000kg/h 8-15min per batch | |
| Place of Origin | Jiangsu, China | Brand Name | Sevenstars | |
| Model Number | SRL series hot and cold mixer | Voltage | 380V 50HZ or customized | |
| Power(W) | depend on | Dimension(L*W*H) | depend on | |
| Weight | 2200-6200kg | Certification | ISO CE | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
high speed pvc mixer1. Capacity: 300kg/h-1400kg/h
2. Soft starting, variable frequency start
3. Excellent qualit
pvc hot mixer :
Product description
SRL-Z series plastic poweder mixer unit is applicable for mixing,coloring,and drying of various resin powder.The mixer unit combines heating mixing and cooling mixing craft together.The materials after heating mixing can be got into cooling mixer automatically for cooling,exhausts remaining gases and prevent agglomeration.
The plastic mixer unit is designed by imported advanced technology.Adopting PLC control and automatic computer control,it features high automatic level and good quality mixing result.Heating mixing has such functions as
self-friction and electric heating.
The vanes has passed the test of dynamic and static equilibrium.The cover adopts double concave-convex seal.Main axis seal adopts special technology of our company,also equipped with pulse dust catching device.Cooling mixer absorbed slowdown tech from overseas,adopts direct slowdown device makes it running smoothly even more. The mixer unit have come up to the same kind of product level in the world. that is an ideal equipment for producing pvc pipe,plate and special profile etc .
Main technical parameter of pvc hot mixer
| Item No. | Total Volume(L) | Effective Volume(L) | Screw Rotate Speed(r/m) | Motor Power (kw) | Water Demand | Discharging Method | Meas.(mm) | Weight |
| SRL-Z50/100 | 50/100 | 32/75 | 750/1500/180 | 7/11/5 .5 | 3t/h | Pneumatics, Hand work | 2300/1800/1900 | 2.8T |
| SRL-Z100/200 | 100/200 | 75/160 | 650/1300/180 | 14/22/7.5 | 3.5t/h | 2500/2000/2200 | 3T | |
| SRL-Z200/500 | 200/500 | 150/320 | 475/950/130 | 30/42/11 | 5t/h | 4580/2240/2470 | 3.5T | |
| SRL-Z300/600 | 300/600 | 200/360 | 475/950/130 | 40/55/11 | 3-8t/h | 4580/2240/2500 | 3.8T | |
| SRL-Z300/1000B | 300/1000 | 200/640 | 475/950/50 | 40/55/11 | 5.8t/h | Pneumatics | 4600/3000/4050 | 4.2T |
| SRL-Z500/ 1000A | 500/1000 | 375/650 | 430/860/60 | 47/67/18.5 | 5.8t/h | 4600/3000/4050 | 5.8T | |
| SRL-Z500/1000B | 100/1000 | 375/640 | 430/860/50 | 55/75/15 | 6.8t/h | 4600/3000/4050 | 7.8T | |
| SRL-Z800/1600B | 500/1600 | 375/1200 | 450/860/60 | 55/75/18.5 | 10t/h | 4600/3000/4050 | 7.3T | |
| SRL-Z800/ 1600A | 800/1600 | 600/1024 | 500/50 | 75/30 | 10t/h | 6230/4230/4480 | 8T | |
| SRL-Z800/2000B | 800/2000 | 600/1500 | 370/740 | 83/110/30 | 12t/h | 4850/3860/6550 | 7.3T |
1 | Model | / | SRL-Z100/200 mixer group | ||
Hot mixer | |||||
1 | total volume of hot mixer | L | 100 | ||
2 | effective volume of hot mixer | L | 375 | ||
3 | material weight/batch | kg/batch | ≤160 |
| |
4 | Output | kg/h | ≤800 | ||
5 | motor power | KW | 14/22, double speed motor | ||
6 | Thickness of wall of barrel (stainless steel 304 ) | mm | 8 | ||
7 | Thickness of bottom of barrel (stainless steel 304 ) | mm | 10 | ||
8 | hot mixer rotating speed | r/min | 650/1300 | ||
9 | Quantity of stirring blade | pcs | 3(1Cr18Ni9Ti) | ||
10 | mixing time | min/batch | 8-10 | ||
11 | Heating method | Electric heating and self-mixing heating | |||
cooling mixer | |||
1 | cooling mixer volume | L | 200 |
2 | effective volume of cooling mixer | L | 640 |
3 | motor power | KW | 7.5 |
4 | material of cooling mixer blade | / | ZG1Cr18Ni9Ti |
5 | stirring blade rotating speed | r/m | 60 |
6 | Thickness of wall of barrel (stainless steel 304 ) | mm | 8 |
7 | Thickness of bottom of barrel (stainless steel 304 ) | mm | 10 |
8 | lift control method | / | pneumatic |
9 | Cooling method | / | water cooling |
10 | cooling time | min/batch | 10-15 |
11 | Total weigth of the overall machine | kg | 3000 |
We are the manufacturer specialized in plastic machine manufacture for many years,our products are exported to many countries.If you are interested in our products,please contact us at any time.

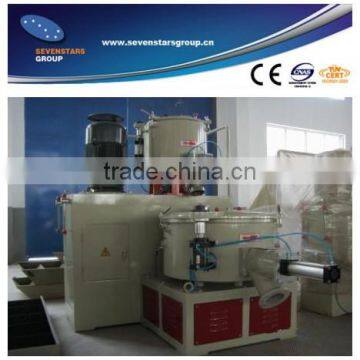

Reference pictures of pvc hot mixer
