Specifications
SRL series PVC mixer1. Capacity: 300kg/h-1400kg/h
2. Soft starting, variable frequency start
3. Excellent quality
High speed plastic mixer machine / plastic mixing machine / PVC mixer / mixing machine unit
SRL-Z series plastic poweder mixer unit is applicable for mixing,coloring,and drying of various resin powder.The mixer unit combines heating mixing and cooling mixing craft together.The materials after heating mixing can be got into cooling mixer automatically for cooling,exhausts remaining gases and prevent agglomeration.
The plastic mixer unit is designed by imported advanced technology.Adopting PLC control and automatic computer control,it features high automatic level and good quality mixing result.Heating mixing has such functions as
self-friction and electric heating.
The vanes has passed the test of dynamic and static equilibrium.The cover adopts double concave-convex seal.Main axis seal adopts special technology of our company,also equipped with pulse dust catching device.Cooling mixer absorbed slowdown tech from overseas,adopts direct slowdown device makes it running smoothly even more. The mixer unit have come up to the same kind of product level in the world. that is an ideal equipment for producing pvc pipe,plate and special profile etc .
Main technical parameter of Plastic mixer machine
| Item No. | Total Volume(L) | Effective Volume(L) | Screw Rotate Speed(r/m) | Motor Power (kw) | Water Demand | Discharging Method | Meas.(mm) | Weight |
| SRL-Z50/100 | 50/100 | 32/75 | 750/1500/180 | 7/11/5 .5 | 3t/h | Pneumatics, Hand work | 2300/1800/1900 | 2.8T |
| SRL-Z100/200 | 100/200 | 75/160 | 650/1300/180 | 14/22/7.5 | 3.5t/h | 2500/2000/2200 | 3T | |
| SRL-Z200/500 | 200/500 | 150/320 | 475/950/130 | 30/42/11 | 5t/h | 4580/2240/2470 | 3.5T | |
| SRL-Z300/600 | 300/600 | 200/360 | 475/950/130 | 40/55/11 | 3-8t/h | 4580/2240/2500 | 3.8T | |
| SRL-Z300/1000B | 300/1000 | 200/640 | 475/950/50 | 40/55/11 | 5.8t/h | Pneumatics | 4600/3000/4050 | 4.2T |
| SRL-Z500/ 1000A | 500/1000 | 375/650 | 430/860/60 | 47/67/18.5 | 5.8t/h | 4600/3000/4050 | 5.8T | |
| SRL-Z500/1000B | 100/1000 | 375/640 | 430/860/50 | 55/75/15 | 6.8t/h | 4600/3000/4050 | 7.8T | |
| SRL-Z800/1600B | 500/1600 | 375/1200 | 450/860/60 | 55/75/18.5 | 10t/h | 4600/3000/4050 | 7.3T | |
| SRL-Z800/ 1600A | 800/1600 | 600/1024 | 500/50 | 75/30 | 10t/h | 6230/4230/4480 | 8T | |
| SRL-Z800/2000B | 800/2000 | 600/1500 | 370/740 | 83/110/30 | 12t/h | 4850/3860/6550 | 7.3T |
We are the manufacturer specialized in plastic machine manufacture for many years,our products are exported to many countries.If you are interested in our products,please contact us at any time.

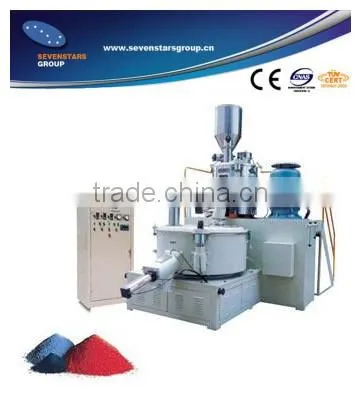

Reference pictures of Plastic mixer machine
