High speed pvc powder mixer unit

Specifications

pvc powder mixer unit
1. Capacity: 300kg/h-1400kg/h
2. Soft starting, variable frequency start
3. Excellent quality

High speed pvc powder mixer unit



product description:

SRL-Z series plastic poweder mixer unit is applicable for mixing,coloring,and drying of various resin powder.The mixer unit combines heating mixing and cooling mixing craft together.The materials after heating mixing can be got into cooling mixer  automatically for cooling,exhausts remaining gases and prevent agglomeration.

 The plastic mixer unit is designed by imported advanced technology.Adopting PLC control and automatic computer control,it features high automatic level and good quality mixing result.Heating mixing has such functions as self-friction and electric heating.

The vanes has passed the test of dynamic and static equilibrium.The cover adopts double concave-convex seal.Main axis seal adopts special technology of our company,also equipped with pulse dust catching device.Cooling mixer absorbed slowdown tech from overseas,adopts direct slowdown device makes it running smoothly even more. The mixer unit have come up to the same kind of product level in the world. that is an ideal equipment for producing  pvc pipe,plate and special profile etc .





Main technical parameter of pvc powder mixer unit



Item No.	Total Volume(L)	Effective Volume(L)	Screw Rotate Speed(r/m)	Motor Power (kw)	Water Demand	Discharging Method	Meas.(mm)	Weight
SRL-Z50/100	50/100	32/75	750/1500/180	7/11/5 .5	3t/h	Pneumatics, Hand work	2300/1800/1900	2.8T
SRL-Z100/200	100/200	75/160	650/1300/180	14/22/7.5	3.5t/h		2500/2000/2200	3T
SRL-Z200/500	200/500	150/320	475/950/130	30/42/11	5t/h		4580/2240/2470	3.5T
SRL-Z300/600	300/600	200/360	475/950/130	40/55/11	3-8t/h		4580/2240/2500	3.8T
SRL-Z300/1000B	300/1000	200/640	475/950/50	40/55/11	5.8t/h	Pneumatics	4600/3000/4050	4.2T
SRL-Z500/ 1000A	500/1000	375/650	430/860/60	47/67/18.5	5.8t/h		4600/3000/4050	5.8T
SRL-Z500/1000B	100/1000	375/640	430/860/50	55/75/15	6.8t/h		4600/3000/4050	7.8T
SRL-Z800/1600B	500/1600	375/1200	450/860/60	55/75/18.5	10t/h		4600/3000/4050	7.3T
SRL-Z800/ 1600A	800/1600	600/1024	500/50	75/30	10t/h		6230/4230/4480	8T
SRL-Z800/2000B	800/2000	600/1500	370/740	83/110/30	12t/h		4850/3860/6550	7.3T

We are the manufacturer specialized in plastic machine manufacture for many years,our products are exported to many countries.If you are interested in our products,please contact us at any time.

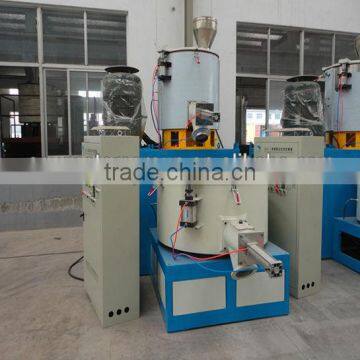

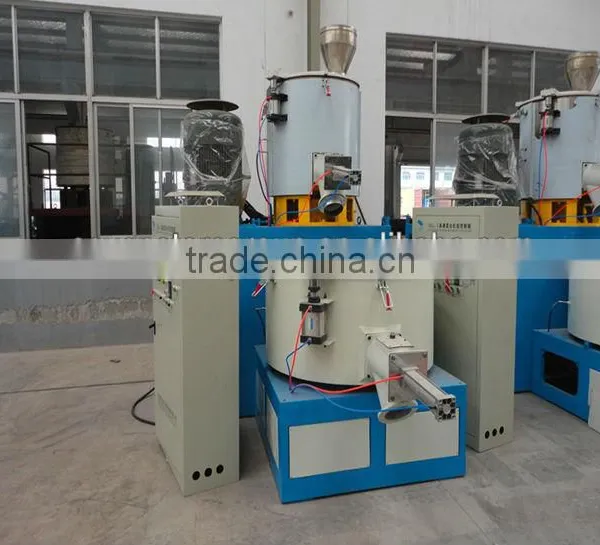

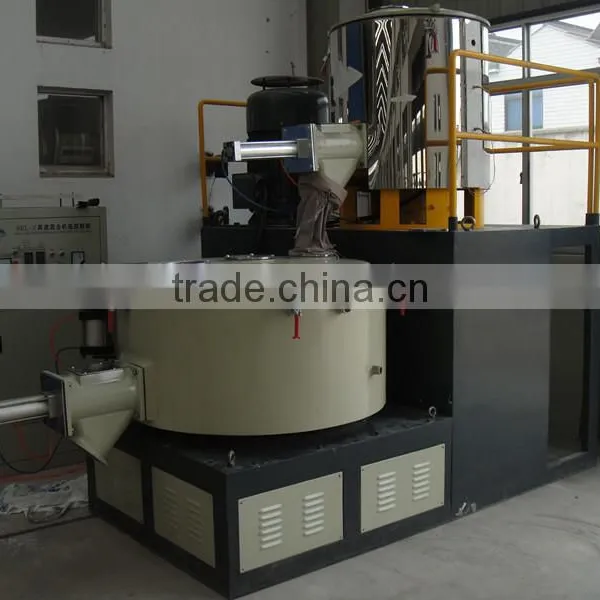

Reference pictures of pvc powder mixer unit
